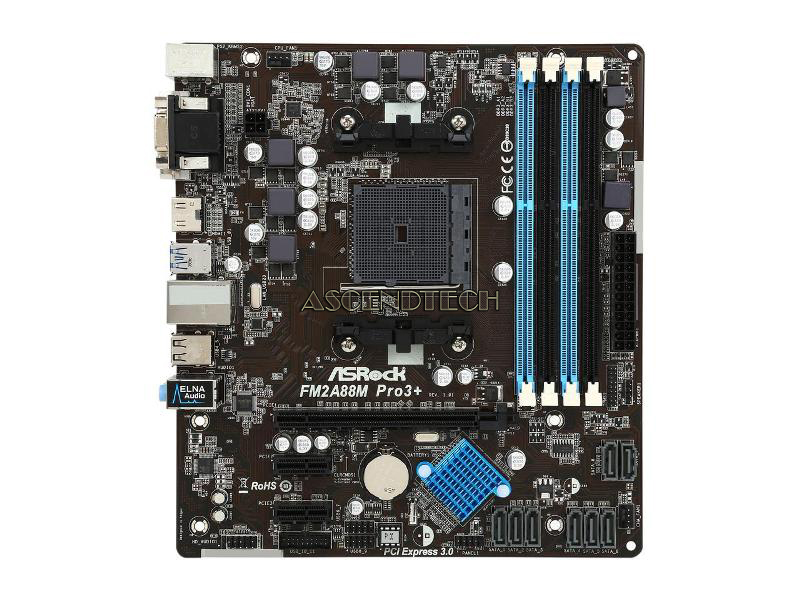

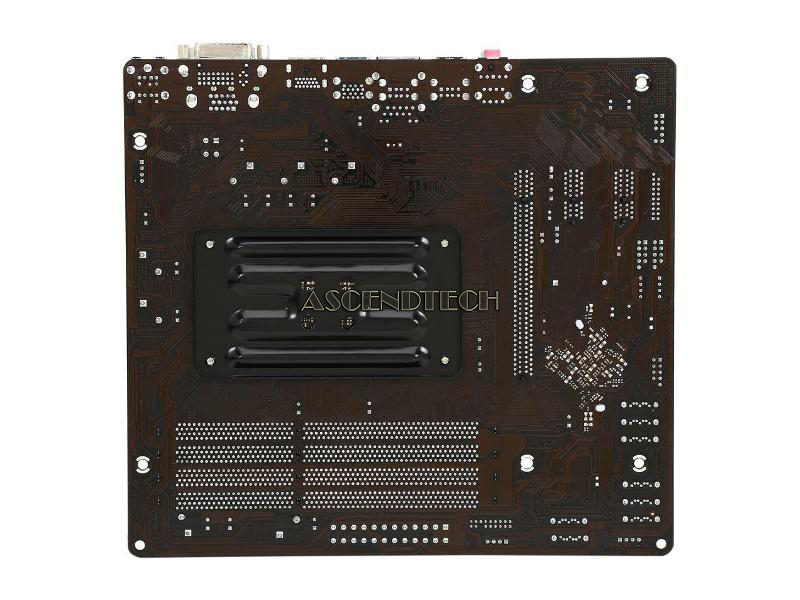

ASRock FM2A88M PRO3+ AMD FM2/FM2+ M-ATX

ASRock FM2A88M PRO3+ FM2+ 95W / FM2 100W AMD A88X (Bolton D4) SATA 6Gb/s USB 3.0 HDMI Micro ATX AMD Motherboard. A great foundation for you to build a FM2+/FM2 APU-based system, the ASRock FM2A88M PRO3+ Motherboard delivers performance, features, and quality at a great price. It's based on an AMD A88X (Bolton D4) chipset and supports an FM2+ 95W/FM2 100W processor. This motherboard is built to be stable and durable with an all solid capacitor design. Compute with confidence with Full Spike Protection, which safeguards sensitive components against voltage abnormalities. Turbocharge the performance with one key with X-Boost technology. Experience blistering data transfer with the native SATA III and USB 3.0 technology. And enjoy clean, noise-minimized sound thanks to the ELNA audio caps. The acclaimed ASRock XFast RAM and XFast LAN are also included, for a fast, smooth experience in both local operation and on the Internet.

Features:

• AMD A88X (Bolton D4)
• APU (FM2 Socket)
• DDR3 2400+(OC)/ 2133/ 1866/ 1600/ 1333/ 1066

Specification:

Brand: ASRock
Model: FM2A88M PRO3+
CPU Socket: FM2+ / FM2
Supported CPU Type: APU (FM2 Socket)
Chipset: AMD A88X (Bolton D4)
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 2400+(OC)/ 2133(OC)/ 1866/ 1600/ 1333
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
Expansion Slots:
1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
2 x PCI Express 2.0 x1 Slots
Storage Devices:
8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug
0/1/10 SATA RAID
Onboard Video Chipset: By CPU model
Onboard Audio Chipset: Realtek ALC662
Audio Channels: 5.1 Channels
Onboard LAN Chipset: Realtek 8111-GR
Max LAN Speed: 10/100/1000Mbps

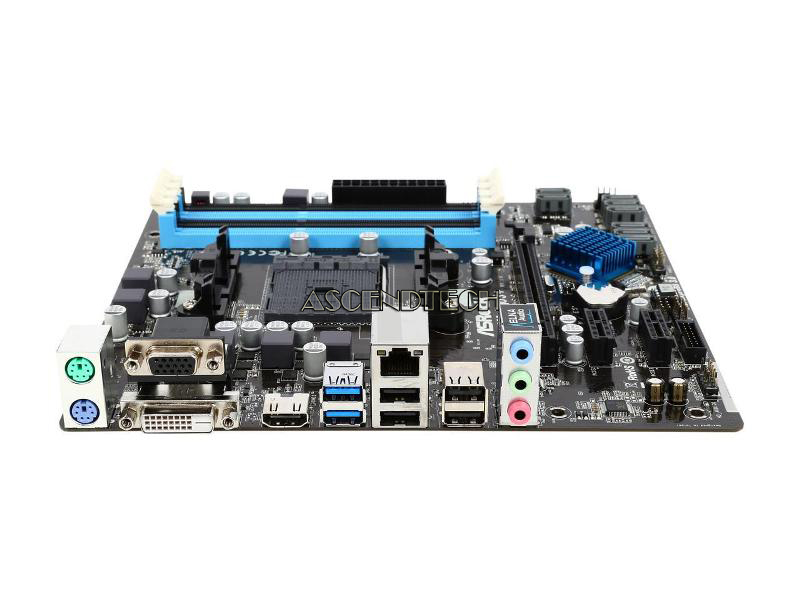

Rear Panel Ports:
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x HDMI
1 x D-Sub Port
1 x DVI-D Port
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
2 x USB 3.0 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors:
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power Connector
1 x Front Panel Audio Connector
Form Factor: Micro ATX
