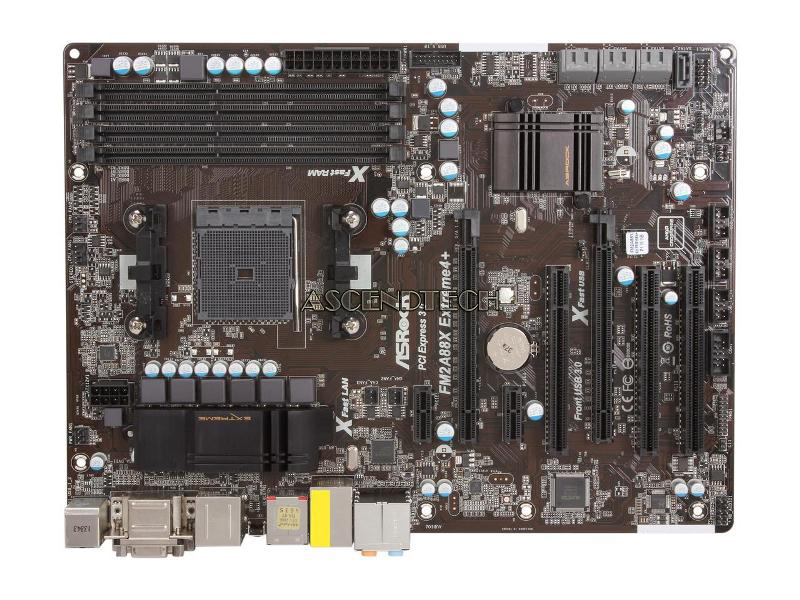

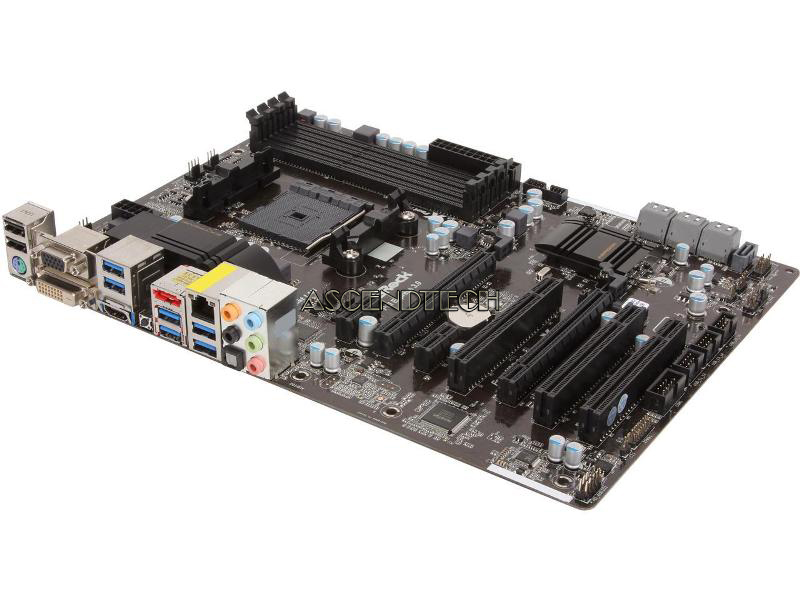

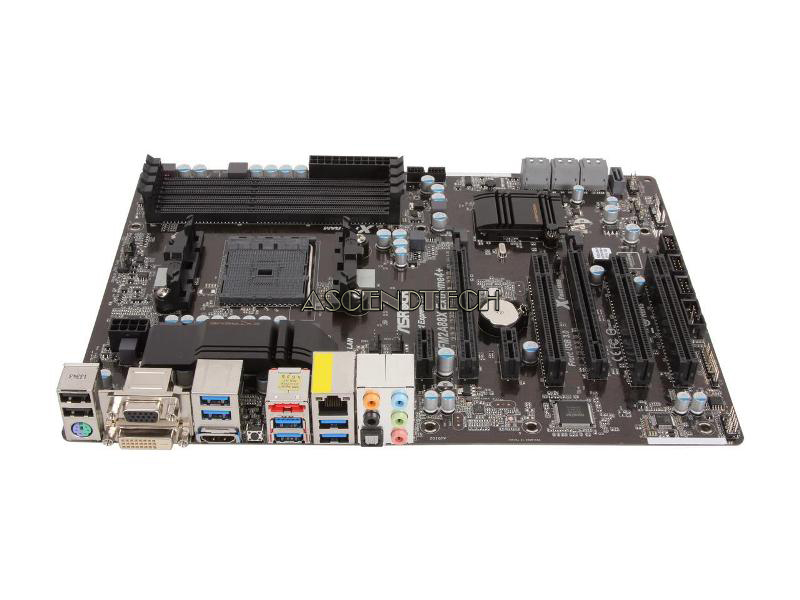

ASRock FM2A88X Extreme4+ FM2/FM2+ ATX MB

ASRock FM2A88X Extreme4+ FM2+ / FM2 AMD A88X (Bolton D4) SATA 6Gb/s USB 3.0 HDMI ATX AMD Motherboard. A great foundation for you to build a FM2+/FM2 APU-based system, the ASRock FM2A88X Extreme4+ Motherboard delivers performance, features, and quality at a great price. It's based on an AMD A88X (Bolton D4) chipset and supports an FM2+ 95W/FM2 100W processor. This motherboard is built to be stable and durable with an all solid capacitor design. Count on the high-density glass-fabric PCB that protects against short circuits caused by humidity. Turbocharge the performance with one key with X-Boost technology. Experience blistering data transfer with the native SATA III and USB 3.0 technology. And get premium-quality sound from your professional high-impedance headphone with the TI NE5532 headset amplifer. The acclaimed ASRock XFast RAM, XFast LAN, and XFast USB are also included, for a fast, smooth experience in both local operation and on the Internet.

Features:

XFAST 555 TECHNOLOGY
Exclusive ASRock XFast 555 technology — including XFast RAM, XFast LAN, and XFast USB technology — optimizes your user experience with fast response and low latency. To boost performance, XFast RAM creates a virtual disk from the system memory. For Photoshop, It can perform five times faster than before. ASRock XFast LAN is a smart productivity tool that helps you manage your Internet application priorities, simplify your digital life, and accomplish more. XFast USB technology boosts up the USB transfer to a new level, enabling more data to be transferred in less time.

HIGH-DENSITY GLASS-FABRIC PCB
What you’ve never understood about your computer is that it is scared to death of water: H2O, humidity, or whatever you’d like to call it. And even though you do not see the water, there may actually be lots of excessive moisture in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the Wicked Witch of the West, but it dies from short circuiting. Luckily, ASRock has a new High-Density Glass-Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

ALL SOLID CAPACITOR DESIGN
ASRock is determined to use high-quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long-lasting durability and ultra-stable performance.

TI NE5532 PREMIUM HEADSET AMPLIFIER
Whoever said that PCs cannot provide decent audio is wrong. Never give in to bad audio quality! The Premium Headset Amplifier is what all headphiles been longing for on a PC. It uses TI NE5532 amplifiers, which can deliver high-definition audio for up to 600ohm professional headphones.

X-BOOST
Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get a performance boost of up to 15.77%! With the smart X-Boost, overclocking the CPU becomes a nearly one-button process.

EASY DRIVER INSTALLER
For users who don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI. It installs the LAN driver to your system via a USB storage device, then downloads and installs the other required drivers automatically through the Internet – absolutley no CD or optical disk drive required!

Specification:

Brand: ASRock
Model: FM2A88X Extreme4+
CPU Socket: FM2+ / FM2
Supported CPU Type: Athlon/A- Series (FM2+)
Chipset: AMD A88X (Bolton D4)
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 2600+(OC)/2400(OC)/2133/1866/1600/1333/1066
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
Expansion Slots:
1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
1 x PCI Express 2.0 x16 Slot (PCIE4 @ x4 mode)
2 x PCI Express 2.0 x1 Slots
3 x PCI Slots
Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics
Storage Devices:
7 x SATA 6Gb/s
0/1/10 SATA RAID
Onboard Video Chipset: By CPU model
Onboard Audio Chipset: RRealtek ALC892
Audio Channels: 7.1 Channels
Onboard LAN Chipset: Qualcomm Atheros AR8171
Max LAN Speed: 10/100/1000Mbps
Rear Panel Ports:
1 x PS/2 keyboard/mouse port
1 x D-Sub
1 x DVI-D
1 x HDMI
6 x USB 3.0
2 x USB 2.0
1 x eSATA
1 x Optical S/PDIF Out
5 x Audio Ports
Internal I/O Connectors:
2 x USB 3.0 + 6 x USB 2.0
1 x IR Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
Form Factor: ATX
