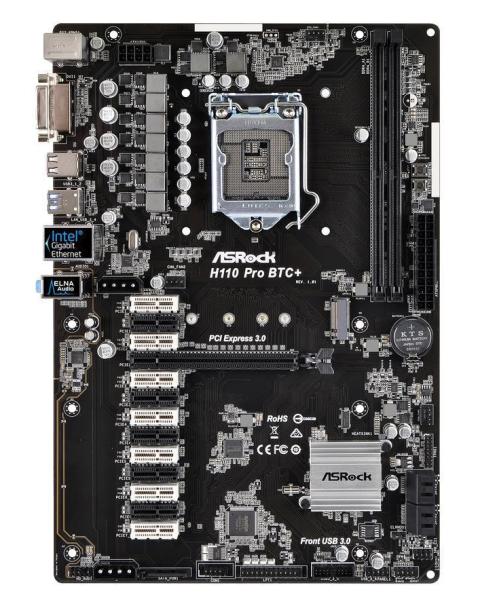

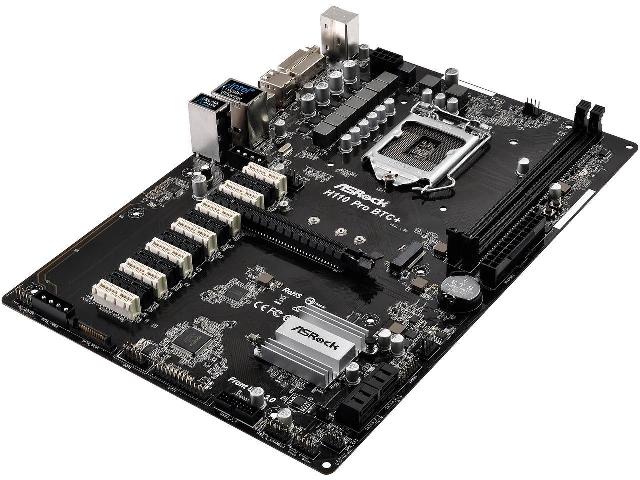

ASRock H110 Pro BTC+ LGA1151 Motherboard

Brand

ASRock

Model

H110 Pro BTC+

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies

* Not Compatible with Intel 8th Gen CPUs

Chipsets

Chipset

Intel H110

Onboard Video

Onboard Video Chipset

* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
- Gen9 LP, DX11.3, DX12
- HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
- HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)
- Max. shared memory 1024MB
* The size of maximum shared memory may vary from different operating systems.
- Supports DVI-D with max. resolution up to 1920x1200 @ 60 Hz - Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

Memory

Number of Memory Slots

2×288pin

Memory Standard

DDR4 2400/ 2133 non-ECC, un-buffered memory*
* 7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disk

PCI Express x1

12 x PCI Express 2.0 x1 Slots

Storage Devices

SATA 6Gb/s

4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

M.2

1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

7.1 CH HD Audio
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

10/100/1000Mbps

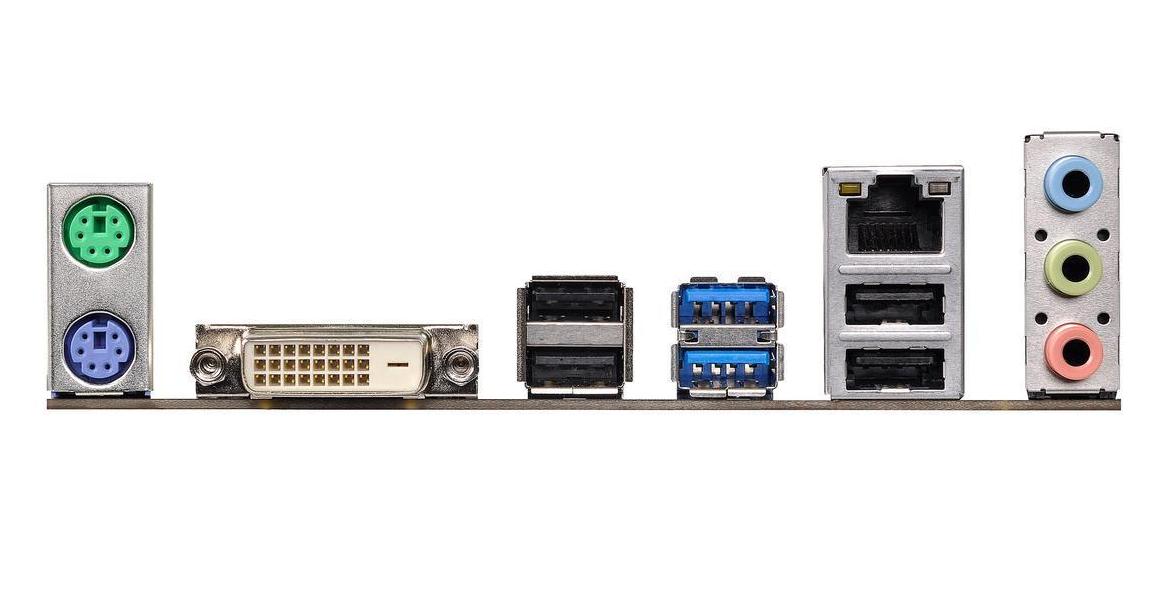

Rear Panel Ports

PS/2

1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port

Video Ports

1 x DVI-D Port

RJ45

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

USB 3.0

2 x USB 3.0 Ports (Supports ESD Protection)

USB 1.1/2.0

4 x USB 2.0 Ports (Supports ESD Protection)

Audio Ports

Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection)

Other Connectors

1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis Fan Connectors (4-pin)
2 x PCIe Power Connectors
1 x SATA Power Connector
1 x Front Panel Audio Connector

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 8.2"

Power Pin

1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector

Features

Features

Unique Feature:
- ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop

BIOS Feature:
- 64MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI:
Software
- ASRock APP Charger
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Instant Flash

Hardware Monitor:
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit (For 7th Gen Intel CPU)
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)
* To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check User Manual for more detailed instructions.
* For the updated Windows 10 driver, please visit ASRock's website for details.

Certi?cations:
- FCC, CE
