ASRock H310CM-HDV Desktop Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Asrock H310cm-Hdv Desktop Motherboard
Asrock H310cm-Hdv Desktop Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSK310CMHDVFL
BrandAsrock
ModelH310CM-HDV
Part Number80-MXB8J0-A1A04
CategoryIntel Lga1151 Motherboard
ConditionLike New Grade A

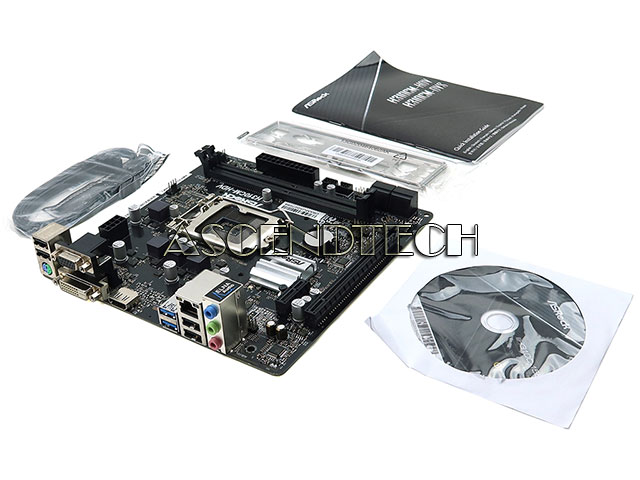

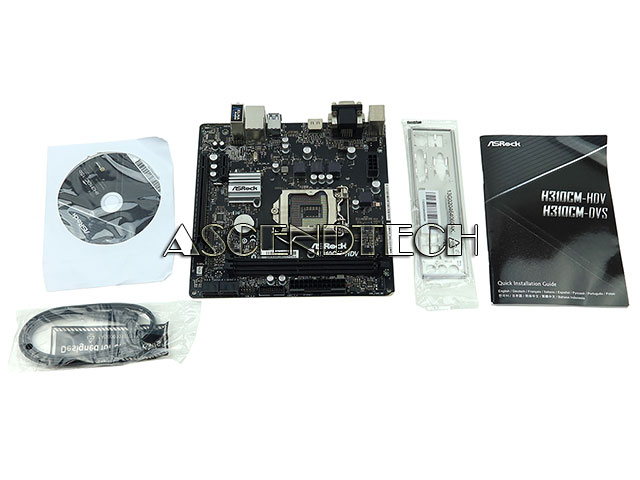

Condition DescriptionPlease note, this motherboard comes with I/O Shield, SATA Cables, CD, Manual! No any other accessories!

Description

ASRock H310CM-HDV Intel Chipset H310 Socket LGA1151 DDR4 HDMI VGA DVI USB SATA 3 6.0Gb/s Micro ATX Desktop Motherboard 80-MXB8J0-A1A04.

Chipset: Intel H310
Socket: Intel LGA1151
Compatible/Supported CPU: 8th 9th Generation Intel Core i3/i5/i7 Desktop Processors
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 2666MHz/2400MHz/2133MHz
Storage Interface: SATA 3 6.0Gb/s
Network/Communications: Realtek RTL8111H Gigabit LAN 10/100/1000 Mbps
Audio: Realtek ALC887/897 Audio Codec
Connectors: 1x TPM Header, 1x Chassis Intrusion and Speaker Header, 1x CPU Fan Connector (4-pin), 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Input/Output Ports: 1x PS/2 Mouse/Keyboard Port, 1x D-Sub Port, 1x DVI-D Port, 1x HDMI Port, 4x USB 2.0 Ports (Supports ESD Protection), 2x USB 3.1 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), 1x PCI Express 2.0 x1 Slot
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.05V Voltage Multi-adjustment

Unique Feature
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopSoftware and UEFI
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet FlashGraphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

CPU Support:

Socket LGA1151
VendorCPU ModelGPU FrequencyL3 CacheFamilyCore NameSteppingWattage
Inteli9-9900KF3.6GHz16MBCore i9Coffee LakeP095W
Inteli9-9900K 3.6GHz16MBCore i9Coffee LakeP095W
Inteli9-9900KF3.6GHz16MBCore i9Coffee LakeR095W
Inteli9-9900K 3.6GHz16MBCore i9Coffee LakeR095W
Inteli9-9900  3.1GHz16MBCore i9Coffee LakeR065W
Inteli9-9900T 2.1GHz16MBCore i9Coffee LakeR035W
Inteli7-9700K 3.6GHz12MBCore i7Coffee LakeR095W
Inteli7-9700T 2.0GHz12MBCore i7Coffee LakeR032W
Inteli7-9700  3.0GHz12MBCore i7Coffee LakeR065W
Inteli7-9700KF3.6GHz12MBCore i7Coffee LakeR095W
Inteli7-9700KF3.6GHz12MBCore i7Coffee LakeP095W
Inteli7-9700F 3.0GHz12MBCore i7Coffee LakeR065W
Inteli7-9700K 3.6GHz12MBCore i7Coffee LakeP095W
Inteli7-8700K 3.7GHz12MBCore i7Coffee LakeU095W
Inteli7-8700  3.2GHz12MBCore i7Coffee LakeU065W
Inteli7-8700T 2.4GHz12MBCore i7Coffee LakeU035W
Inteli7-8086K 4.0GHz12MBCore i7Coffee Lake 95W
Inteli5-9600KF3.7GHz9MBCore i5Coffee LakeP095W
Inteli5-9600K 3.7GHz9MBCore i5Coffee LakeP095W
Inteli5-9400F 2.9GHz9MBCore i5Coffee LakeU065W
Inteli5-9400T 1.8GHz9MBCore i5Coffee LakeR035W
Inteli5-9600T 2.3GHz9MBCore i5Coffee LakeU035W
Inteli5-9600  3.1GHz9MBCore i5Coffee LakeU065W
Inteli5-9500  3.0GHz9MBCore i5Coffee LakeU065W
Inteli5-9500T 2.2GHz9MBCore i5Coffee LakeU035W
Inteli5-9400  2.9GHz9MBCore i5Coffee LakeU065W
Inteli5-9400F 2.9GHz9MBCore i5Coffee LakeP065W
Inteli5-9400T 1.8GHz9MBCore i5Coffee LakeU035W
Inteli5-9400  2.9GHz9MBCore i5Coffee LakeR065W
Inteli5-9500F 3.0GHz9MBCore i5Coffee LakeU065W
Inteli5-9600K 3.7GHz9MBCore i5Coffee LakeR095W
Inteli5-9600KF3.7GHz9MBCore i5Coffee LakeR095W
Inteli5-9400F 2.9GHz9MBCore i5Coffee LakeR065W
Inteli5-8600K 3.6GHz9MBCore i5Coffee LakeU095W
Inteli5-8600  3.1GHz9MBCore i5Coffee LakeU065W
Inteli5-8600T 2.3GHz9MBCore i5Coffee LakeU035W
Inteli5-8500  3GHz9MBCore i5Coffee LakeU065W
Inteli5-8500T 2.1GHz9MBCore i5Coffee LakeU035W
Inteli5-8400  2.8GHz9MBCore i5Coffee LakeU065W
Inteli5-8400T 1.7GHz9MBCore i5Coffee LakeU035W
Inteli3-8350K 4.0GHz8MBCore i3Coffee LakeB091W
Inteli3-9350KF4GHz8MBCore i3Coffee LakeB091W
IntelI3-9100F 3.6GHz6MBCore i3Coffee LakeB065W
Inteli3-9100F 3.6GHz6MBCore i3Coffee LakeU065W
Inteli3-9300  3.7GHz8MBCore i3Coffee LakeB062W
Inteli3-9100T 3.1GHz6MBCore i3Coffee LakeB035W
Inteli3-9300T 3.2GHz8MBCore i3Coffee LakeB035W
Inteli3-9350K 4.0GHz8MBCore i3Coffee LakeB091W
Inteli3-9100  3.6GHz6MBCore i3Coffee LakeB065W
Inteli3-8300  3.7GHz8MBCore i3Coffee LakeB062W
Inteli3-8300T 3.2GHz8MBCore i3Coffee LakeB035W
Inteli3-8100  3.6GHz6MBCore i3Coffee LakeB065W
Inteli3-8100  3.6GHz6MBCore i3Coffee LakeU065W
Inteli3-8100T 3.1GHz6MBCore i3Coffee LakeB035W
IntelG5600T   3.3GHz4MBPentium GoldCoffee LakeB035W
IntelG5420T   3.2GHz4MBPentium GoldCoffee LakeB035W
IntelG5600F   3.9GHz4MBPentium GoldCoffee LakeB054W
IntelG5420    3.8GHz4MBPentium GoldCoffee LakeU058W
IntelG5420T   3.2GHz4MBPentium GoldCoffee LakeU035W
IntelG5420    3.8GHz4MBPentium GoldCoffee LakeB054W
IntelG5620    4.0GHz4MBPentium GoldCoffee LakeB054W
IntelG5600    3.9GHz4MBPentium GoldCoffee LakeB054W
IntelG5500    3.8GHz4MBPentium GoldCoffee LakeB054W
IntelG5500T   3.2GHz4MBPentium GoldCoffee LakeB035W
IntelG5400    3.7GHz4MBPentium GoldCoffee LakeU058W
IntelG5400T   3.1GHz4MBPentium GoldCoffee LakeU035W
IntelG5400T   3.1GHz4MBPentium GoldCoffee LakeB035W
IntelG5400    3.7GHz4MBPentium GoldCoffee LakeB054W
IntelG4920    3.2GHz2MBCeleronCoffee LakeB054W
IntelG4930T   3.0GHz2MBCeleronCoffee LakeB035W
IntelG4950    3.3GHz2MBCeleronCoffee LakeB054W
IntelG4930    3.2GHz2MBCeleronCoffee LakeB054W
IntelG4900    3.1GHz2MBCeleronCoffee LakeB054W
IntelG4900T2.9GHz2MBCeleronCoffee LakeB035W
