ASRock H61M-DGS LGA1155 H61 DDR3 SATA2

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Asrock H61m-Dgs Lga1155 H61 Ddr3 Sata2
  Enlarge

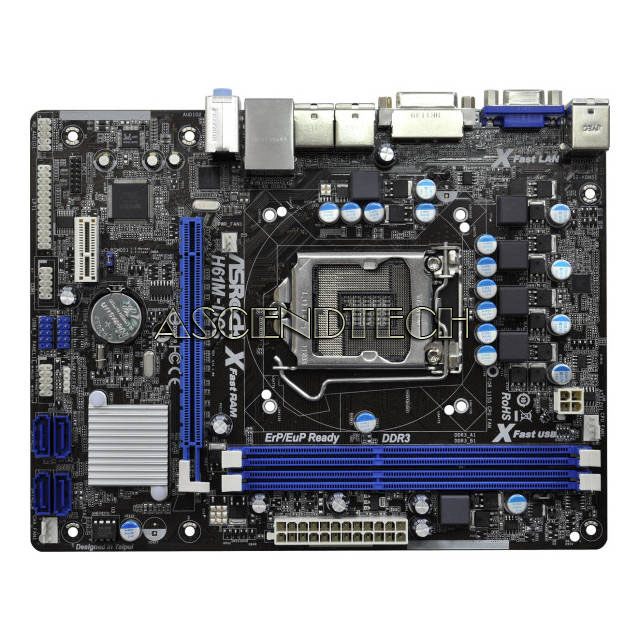

Asrock H61m-Dgs Lga1155 H61 Ddr3 Sata2

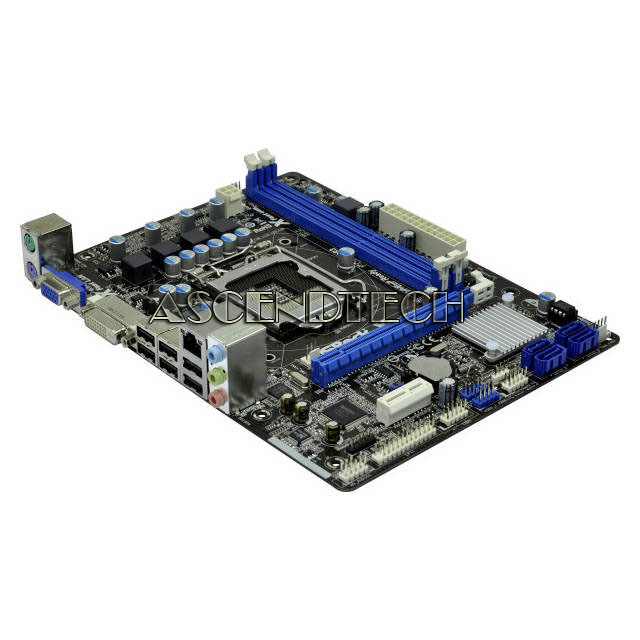

Asrock H61m-Dgs Lga1155 H61 Ddr3 Sata2
Asrock H61m-Dgs Lga1155 H61 Ddr3 Sata2
Asrock H61m-Dgs Lga1155 H61 Ddr3 Sata2
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBASROCKH61MDGS
Brand Asrock
Model H61M-DGS
Category Intel Lga1155 Motherboard

Description

AsRock H61M-DGS LGA1155 Intel H61 Chipset DDR3 SATA2 For Intel 2nd/3rd Generation Core i7/ i5/ i3 Processors. Solid Capacitor for CPU Power, Supports Intel K-Series CPU, Supports Intel HD Graphics with Built-in Visuals, Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies.

Specifications:



 General
CPU- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports Hyper-Threading Technology
Chipset- Intel® H61
- Supports Intel® Rapid Start Technology and Smart Connect Technology


*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU


*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 1333 with Intel® Sandy Bridge CPU.
BIOS- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
 Audio, Video and Networking
Graphics- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port


*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
Audio- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C
- Supports Wake-On-LAN
- Supports PXE
 Expansion / Connectivity
Slots- 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot


*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.
Connector- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

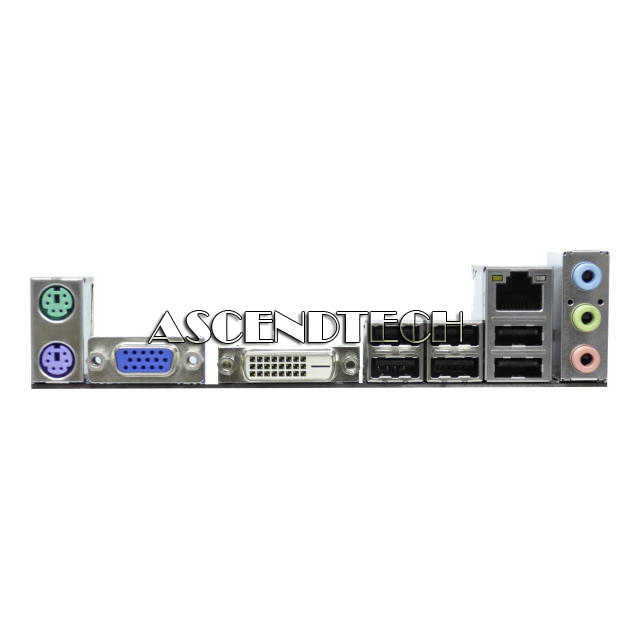

Rear Panel I/OI/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
Hardware Monitor- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor- Micro ATX Form Factor: 8.9-in x 6.8-in, 22.6 cm x 17.3 cm
- Solid Capacitor for CPU power
OS- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)













CPU Support List:



SocketFamilyNumberCoreFrequencyCachePower
1155XeonE3-1275V2(E1)Ivy Bridge3.5GHz8MB77W
1155*XeonE3-1270V2(E1)Ivy Bridge3.5GHz8MB69W
1155XeonE3-1265LV2(E1)Ivy Bridge2.5GHz8MB45W
1155XeonE3-1245V2(E1)Ivy Bridge3.4GHz8MB77W
1155*XeonE3-1240V2(E0)Ivy Bridge3.4GHz8MB69W
1155*XeonE3-1230V2(E0)Ivy Bridge3.3GHz8MB69W
1155XeonE3-1225V2(E1)Ivy Bridge3.2GHz8MB77W
1155*XeonE3-1220V2(E1)Ivy Bridge3.1GHz8MB69W
1155XeonE3-1275(D2)Sandy Bridge3.4GHz8MB95W
1155XeonE3-1260L(D2)Sandy Bridge2.4GHz8MB45W
1155XeonE3-1245(D2)Sandy Bridge3.3GHz8MB95W
1155*XeonE3-1240(D2)Sandy Bridge3.3GHz8MB80W
1155XeonE3-1235(D2)Sandy Bridge3.2GHz8MB95W
1155*XeonE3-1230(D2)Sandy Bridge3.2GHz8MB80W
1155XeonE3-1225(D2)Sandy Bridge3.1GHz6MB95W
1155*XeonE3-1220(D2)Sandy Bridge3.1GHz8MB80W
1155Core i7i7-3770K(E1)Ivy Bridge3.5GHz8MB77W
1155Core i7i7-3770K(E0)Ivy Bridge3.5GHz8MB77W
1155Core i7i7-3770(E1)Ivy Bridge3.4GHz8MB77W
1155Core i7i7-3770(E0)Ivy Bridge3.4GHz8MB77W
1155Core i7i7-3770T(E1)Ivy Bridge2.5GHz8MB45W
1155Core i7i7-3770T(E0)Ivy Bridge2.5GHz8MB45W
1155Core i7i7-3770S(E1)Ivy Bridge3.1GHz8MB65W
1155Core i7i7-3770S(E0)Ivy Bridge3.1GHz8MB65W
1155Core i7i7-2700K(D2)Sandy Bridge3.5GHz8MB95W
1155Core i7i7-2600K(D2)Sandy Bridge3.40GHz8MB95W
1155Core i7i7-2600(D2)Sandy Bridge3.40GHz8MB95W
1155Core i7i7-2600S(D2)Sandy Bridge2.80GHz8MB65W
1155Core i5i5-3570K(E1)Ivy Bridge3.4GHz6MB77W
1155Core i5i5-3570K(E0)Ivy Bridge3.4GHz6MB77W
1155Core i5i5-3570T(E1)Ivy Bridge2.3GHz6MB45W
1155Core i5i5-3550(E1)Ivy Bridge3.3GHz6MB77W
1155Core i5i5-3550S(E1)Ivy Bridge3.0GHz6MB65W
1155Core i5i5-3550S(E0)Ivy Bridge3.0GHz6MB65W
1155Core i5i5-3475S(E1)Ivy Bridge2.9GHz6MB65W
1155Core i5i5-3475S(E0)Ivy Bridge2.9GHz6MB65W
1155Core i5i5-3470T(L1)Ivy Bridge2.9GHz3MB35W
1155Core i5i5-3450(E1)Ivy Bridge3.1GHz6MB77W
1155Core i5i5-3450S(E1)Ivy Bridge2.8GHz6MB65W
1155*Core i5i5-3350P(N0)Ivy Bridge3.1GHz6MB69W
1155*Core i5i5-3350P(E1)Ivy Bridge3.1GHz6MB69W
1155Core i5i5-3330(E1)Ivy Bridge3.0GHz6MB77W
1155Core i5i5-3330(N0)Ivy Bridge3.0GHz6MB77W
1155Core i5i5-3330S(E1)Ivy Bridge2.7GHz6MB65W
1155*Core i5i5-2550K(D2)Sandy Bridge3.4GHz6MB95W
1155Core i5i5-2500K(D2)Sandy Bridge3.30GHz6MB95W
1155Core i5i5-2500(D2)Sandy Bridge3.30GHz6MB95W
1155Core i5i5-2500S(D2)Sandy Bridge2.70GHz6MB65W
1155Core i5i5-2500T(D2)Sandy Bridge2.30GHz6MB45W
1155*Core i5i5-2450P(D2)Sandy Bridge3.2GHz6MB95W
1155Core i5i5-2405S(D2)Sandy Bridge2.5GHz6MB65W
1155Core i5i5-2400(D2)Sandy Bridge3.10GHz6MB95W
1155Core i5i5-2400S(D2)Sandy Bridge2.50GHz6MB65W
1155Core i5i5-2390T(Q0)Sandy Bridge2.70GHz3MB35W
1155*Core i5i5-2380P(D2)Sandy Bridge3.1GHz6MB95W
1155Core i5i5-2320(D2)Sandy Bridge3.0GHz6MB95W
1155Core i5i5-2310(D2)Sandy Bridge2.9GHz6MB95W
1155Core i5i5-2300(D2)Sandy Bridge2.80GHz6MB95W
1155Core i3i3-3240(P0)Ivy Bridge3.4GHz3MB55W
1155Core i3i3-3240(L1)Ivy Bridge3.4GHz3MB55W
1155Core i3i3-3240T(P0)Ivy Bridge2.9GHz3MB35W
1155Core i3i3-3240T(L1)Ivy Bridge2.9GHz3MB35W
1155Core i3i3-3225(L1)Ivy Bridge3.3GHz3MB55W
1155Core i3i3-3220(N0)Ivy Bridge3.3GHz3MB65W
1155Core i3i3-3220(P0)Ivy Bridge3.3GHz3MB55W
1155Core i3i3-3220(E1)Ivy Bridge3.3GHz3MB55W
1155Core i3i3-3220(L1)Ivy Bridge3.3GHz3MB55W
1155Core i3i3-3220T(P0)Ivy Bridge2.8GHz3MB35W
1155Core i3i3-3220T(L1)Ivy Bridge2.8GHz3MB35W
1155Core i3i3-3210(P0)Ivy Bridge3.2GHz3MB55W
1155Core i3i3-2130(Q0)Sandy Bridge3.4GHz3MB65W
1155Core i3i3-2125(D2)Sandy Bridge3.3GHz3MB65W
1155Core i3i3-2120(Q0)Sandy Bridge3.30GHz3MB65W
1155Core i3i3-2120T(Q0)Sandy Bridge2.6GHz3MB35W
1155Core i3i3-2105(D2)Sandy Bridge3.1GHz3MB65W
1155Core i3i3-2100(Q0)Sandy Bridge3.10GHz3MB65W
1155Core i3i3-2100T(Q0)Sandy Bridge2.50GHz3MB35W
1155PentiumG2130(P0)Ivy Bridge3.2GHz3MB55W
1155PentiumG2120(P0)Ivy Bridge3.1GHz3MB55W
1155PentiumG2100T(P0)Ivy Bridge2.6GHz3MB35W
1155PentiumG2020(P0)Ivy Bridge2.9GHz3MB55W
1155PentiumG2020T(P0)Ivy Bridge2.5GHz3MB35W
1155PentiumG2010(P0)Ivy Bridge2.8GHz3MB55W
1155PentiumG870(Q0)Sandy Bridge3.1GHz3MB65W
1155PentiumG860(Q0)Sandy Bridge3.0GHz3MB65W
1155PentiumG860T(Q0)Sandy Bridge2.6GHz3MB35W
1155PentiumG850(Q0)Sandy Bridge2.9GHz3MB65W
1155PentiumG840(Q0)Sandy Bridge2.8GHz3MB65W
1155PentiumG645(Q0)Sandy Bridge2.9GHz3MB65W
1155PentiumG645T(Q0)Sandy Bridge2.5GHz3MB35W
1155PentiumG640(Q0)Sandy Bridge2.8GHz3MB65W
1155PentiumG640T(Q0)Sandy Bridge2.4GHz3MB35W
1155PentiumG630(Q0)Sandy Bridge2.7GHz3MB65W
1155PentiumG630T(Q0)Sandy Bridge2.3GHz3MB35W
1155PentiumG620T(Q0)Sandy Bridge2.2GHz3MB35W
1155PentiumG620(Q0)Sandy Bridge2.6GHz3MB65W
1155CeleronG1620(P0)Ivy Bridge2.7GHz2MB55W
1155CeleronG1610(P0)Ivy Bridge2.6GHz2MB55W
1155CeleronG1610T(P0)Ivy Bridge2.3GHz2MB35W
1155CeleronG555(Q0)Sandy Bridge2.7GHz2MB65W
1155CeleronG550(Q0)Sandy Bridge2.6GHz2MB65W
1155CeleronG550T(Q0)Sandy Bridge2.2GHz2MB25W
1155CeleronG540(Q0)Sandy Bridge2.5GHz2MB65W
1155CeleronG540T(Q0)Sandy Bridge2.1GHz2MB35W
1155CeleronG530(Q0)Sandy Bridge2.4GHz2MB65W
1155CeleronG530T(Q0)Sandy Bridge2.0GHz2MB35W
1155CeleronG465(Q0)Sandy Bridge1.9GHz1.5MB35W
1155CeleronG460(Q0)Sandy Bridge1.8GHz1.5MB35W
1155CeleronG440(Q0)Sandy Bridge1.6GHz1MB35W
