ASROCK P55M PRO LGA1156 P55 CROSSFIRE X

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

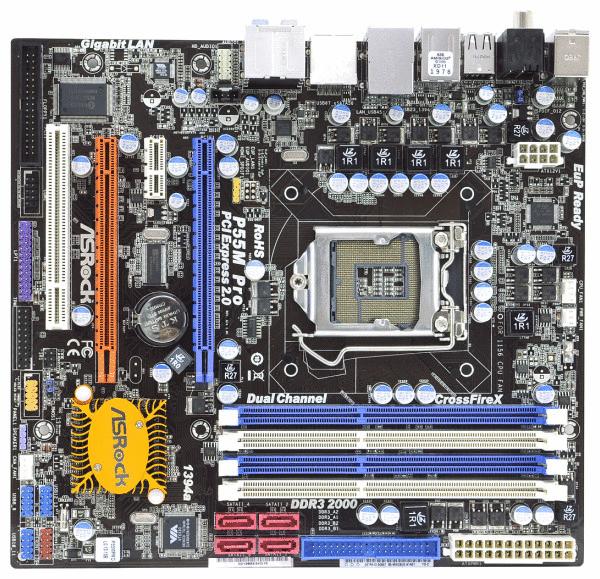

Asrock P55m Pro Lga1156 P55 Crossfire X
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB5ASRP55MPRO55
Brand Asrock
Model P55M Pro
Category Intel Lga1156 Motherboards

Description

ASRock P55M Pro LGA1156 Intel P55 DDR3 CrossFireX MATX Motherboard

Specifications:

  • Part Number: P55M PRO
  • CPU: Socket 1156 Support Intel Core i7 & Core i5 Processor; Supports Intel Turbo Boost Technology; Feature with V4 + 1 Power Phase Design
  • Chipset: Intel P55
  • Memory: 4x 240pin DDR3-2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMMs, non-ECC, un-buffered, Dual Channel, Upto 16GB
  • Slots: 2x PCI-Express x16 Slots (Support ATI CrossFireX/ Quad CrossFireX Technology; Support PCI-Express 2.0); 1 x PCI-Express 2.0 x1 slot; 1x PCI Slots
  • IDE/SATA: 1x ATA-133 Channel; 4x SATA2 Ports, Suppport RAID 0, 1, 5, 10; 2x eSATA2 Port
  • Audio: VIA VT1708S 7.1-Channel Windows Vista Premium Level HD Audio CODEC
  • LAN: Realtek RTL8111DL PCI-Express Gigabit Ethernet Controller
  • Ports: 14x USB 2.0 Ports (6 rear, 6 by headers, 2 by Powered eSATA2/USB Connector); 2x IEEE 1394 Ports (1 rear, 1 by headers); 2x PS/2 Ports; 1x RJ45 LAN Port; 1x Coaxial SPDIF Out; 1x Optical SPDIF Out; Audio I/O Jacks
  • Power Connector: 1x 24pin Main Power, 1x 8pin CPU Power
  • Form Factor: Micro ATX, 8.8 x 9.6 inch / 22.4 x 24.4 cm
