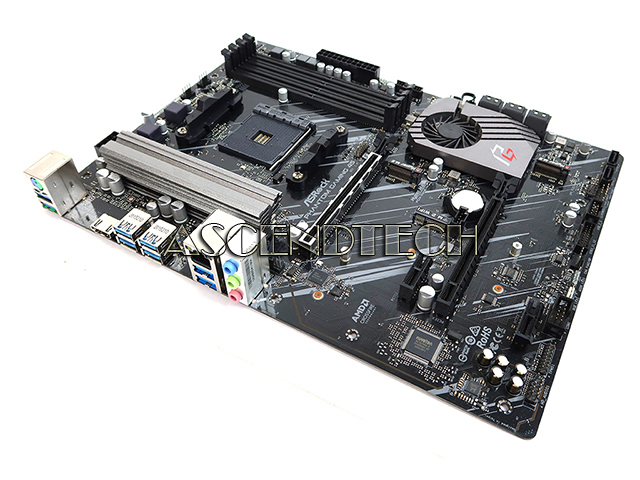

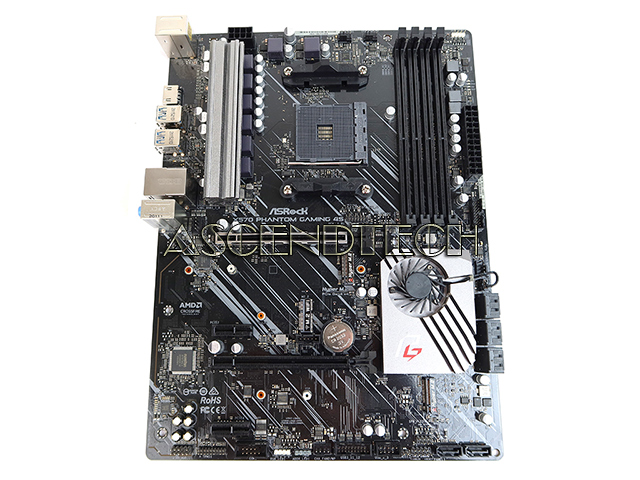

X570 Phantom Gaming 4S 80-MXBBY0-A1A02 | Asrock X570 Phantom Gaming 4S Mb No I/O

ASRock X570 Phantom Gaming 4S AMD Chipset X570 Socket AM4 DDR4 HDMI USB SATA 6Gb/s ATX Desktop Motherboard 80-MXBBY0-A1A02.

Chipset: AMD X570

Socket: AMD AM4

Compatible/Supported CPU: Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 3 6.0Gb/s

RAID Support: 0, 1, 10

Network/Communications: Intel I211AT Gigabit LAN 10/100/1000Mb/s

Audio: Realtek ALC1200 Audio Codec

Connectors: 1x COM Port Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 1x Addressable LED Header, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x AMD LED Fan USB Header, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only), 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x SPI TPM Header

Input/Output Ports: 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 8x USB 3.2 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Expansion Slots: 1x PCI Express 4.0 x16 Slot, 1x PCI Express 3.0 x16 Slot, 2x PCI Express 4.0 x1 Slots, 1x M.2 Socket (Key E), 8x SATA3 6.0 Gb/s, 2x Hyper M.2 Socket M Key

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Software and UEFI
Software
- ASRock Phantom Gaming Tuning
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP 2.2 with HDMI 2.0 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
- Supports Microsoft PlayReady

Gaming Armor
Memory
- 15μ Gold Contact in DIMM Slots
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel LAN
Cooling
- XXL Aluminum Alloy Heatsink

CPU Support:

Socket AM4
Vendor	CPU Model	GPU Frequency	L3 Cache	BIOS	Core Name	Stepping	Wattage
AMD	5950X (100-000000059-00)	3.4GHz	8MB	P3.20	Vermeer	B0	105W
AMD	5900X (100-000000061-00)	3.7GHz	6MB	P3.20	Vermeer	B0	105W
AMD	5800X (100-000000063-00)	3.8GHz	4MB	P3.20	Vermeer	B0	105W
AMD	5600X (100-000000065-00)	3.7GHz	3MB	P3.20	Vermeer	B0	65W
AMD	PRO 5750GE(100-000000257-00)			P3.90	Cezanne
AMD	PRO 5750G(100-000000254-00)			P3.90	Cezanne
AMD	5700G(100-000000263-00)	3.8GHz	4MB	P3.90	Cezanne		45~65W
AMD	5700GE(100-000000260-00)	3.2GHz	4MB	P3.90	Cezanne		35W
AMD	PRO 5650GE(100-000000258-00)			P3.90	Cezanne
AMD	PRO 5650G(100-000000255-00)			P3.90	Cezanne
AMD	5600G(100-000000252-00)	3.9GHz	3MB	P3.90	Cezanne		45~65W
AMD	5600GE(100-000000261-00)	3.4GHz	3MB	P3.90	Cezanne		35W
AMD	PRO 5350GE(100-000000259-00)			P3.90	Cezanne
AMD	5300GE(100-000000262-00)	3.6GHz	2MB	P3.90	Cezanne		35W
AMD	PRO 5350G(100-000000256-00)			P3.90	Cezanne
AMD	5300G(100-000000253-00)	4.0GHz	2MB	P3.90	Cezanne		45~65W
AMD	PRO 4750G(100-000000145)	3.6GHz	4MB	P3.00	Renoir	A1	65W
AMD	PRO 4750GE(100-000000152)	3.1GHz		P3.20	Renoir	A1	35W
AMD	4700G(100-000000146)	3.6GHz	4MB	P3.20	Renoir	A1	65W
AMD	4700GE(100-000000149)	3.1GHz		P3.20	Renoir	A1	35W
AMD	PRO 4650G(100-000000143)	3.7GHz	3MB	P3.00	Renoir	A1	65W
AMD	PRO 4650GE(100-000000153)	3.3GHz		P3.20	Renoir	A1	35W
AMD	4600G(100-000000147)	3.7GHz	3MB	P3.20	Renoir	A1	65W
AMD	4600GE(100-000000150)	3.3GHz		P3.20	Renoir	A1	35W
AMD	PRO 4350G(100-000000148)	3.8GHz	2MB	P3.00	Renoir	A1	65W
AMD	PRO 4350GE(100-000000154)	3.5GHz		P3.20	Renoir	A1	35W
AMD	4300G(100-000000144)	3.8GHz	2MB	P3.20	Renoir	A1	65W
AMD	4300GE(100-000000151)	3.5GHz		P3.20	Renoir	A1	35W
AMD	3950X (100-000000051)	3.5GHz	8MB	All	Matisse	B0	105W
AMD	PRO 3900 (100-000000072)	3.1GHz	6MB	All	Matisse	B0	65W
AMD	3900XT(100-000000277)	4.1GHz		P3.00	Matisse 2		105W
AMD	3900X (100-000000023)	3.8GHz	6MB	All	Matisse	B0	105W
AMD	3900 (100-000000070)	3.1GHz	6MB	All	Matisse	B0	65W
AMD	3800XT(100-000000279)	4.2GHz		P3.00	Matisse 2		105W
AMD	3800X (100-000000025)	3.9GHz	4MB	All	Matisse	B0	105W
AMD	PRO 3700 (100-000000073)	3.6GHz	4MB	All	Matisse	B0	65W
AMD	3700X (100-000000071)	3.6GHz	4MB	All	Matisse	B0	65W
AMD	PRO 2700X (YD27BXBAM88AF)	3.6GHz	4MB	All	Pinnacle Ridge	B2	95W
AMD	PRO 2700 (YD270BBBM88AF)	3.2GHz	4MB	All	Pinnacle Ridge	B2	65W
AMD	2700X (YD270XBGM88AF)	3.7GHz	4MB	All	Pinnacle Ridge	B2	105W
AMD	2700 (YD2700BBM88AF)	3.2GHz	4MB	All	Pinnacle Ridge	B2	65W
AMD	2700E (YD270EBHM88AF)	2.8GHz	4MB	All	Pinnacle Ridge	B2	45W
AMD	PRO 3600 (100-000000029)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3600XT(100-000000281)	4.0GHz		P3.00	Matisse 2		95W
AMD	3600X (100-000000022)	3.8GHz	3MB	All	Matisse	B0	95W
AMD	3600 (100-000000031)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3500X (100-000000158)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3500 (100-000000050)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	PRO 3400G(YD340BC5M4MFI)	3.7GHz	2MB	P3.90	Picasso		45-65W
AMD	PRO 3400G (YD340BC5M4MFH)	3.7GHz	2MB	All	Picasso	B1	65W
AMD	PRO 3400GE (YD340BC6M4MFH)	3.3GHz	2MB	All	Picasso	B1	35W
AMD	3400G(YD340GC5M4MFI)	3.7GHz	2MB	P3.90	Picasso		45~65W
AMD	3400G (YD340GC5M4MFH)	3.7GHz	2MB	All	Picasso	B1	65W
AMD	3400G (YD3400C5M4MFH)	3.7GHz	2MB	All	Picasso	B1	65W
AMD	3400GE (YD3400C6M4MFH)	3.3GHz	2MB	All	Picasso	B1	35W
AMD	3350G(YD3350C5M4MFH)	3.6GHz	2MB	P3.60	Picasso	B1	65W
AMD	PRO 2600 (YD260BBBM6IAF)	3.4GHz	3MB	All	Pinnacle Ridge	B2	65W
AMD	2600X (YD260XBCM6IAF)	3.6GHz	3MB	All	Pinnacle Ridge	B2	95W
AMD	2600 (YD2600BBM6IAF)	3.4GHz	3MB	All	Pinnacle Ridge	B2	65W
AMD	2600E (YD260EBHM6IAF)	3.1GHz	3MB	All	Pinnacle Ridge	B2	45W
AMD	2500X (YD250XBBM4KAF)	3.6GHz	2MB	All	Pinnacle Ridge	B2	65W
AMD	1600(YD1600BBM6IAF)	3.2GHz	3MB	P2.60	Pinnacle Ridge	B2	65W
AMD	3300X (100-000000159)	3.8GHz	2MB	P2.60	Matisse	B0	65W
AMD	PRO 3200G(YD320BC5M4MFI)	3.6GHz	2MB	P3.90	Picasso		45-65W
AMD	PRO 3200G (YD320BC5M4MFH)	3.6GHz	2MB	All	Picasso	B1	65W
AMD	PRO 3200GE (YD320BC6M4MFH)	3.3GHz	2MB	All	Picasso	B1	35W
AMD	3200G(YD320GC5M4MFI)	3.6GHz	2MB	P3.90	Picasso		45~65W
AMD	3200G (YD320GC5M4MFH)	3.6GHz	2MB	All	Picasso	B1	65W
AMD	3200G (YD3200C5M4MFH)	3.6GHz	2MB	All	Picasso	B1	65W
AMD	3200GE (YD3200C6M4MFH)	3.3GHz	2MB	All	Picasso	B1	35W
AMD	3100 (100-000000284)	3.6GHz	2MB	P2.60	Matisse	B0	65W
AMD	2300X (YD230XBBM4KAF)	3.5GHz	2MB	All	Pinnacle Ridge	B2	65W
AMD	1200 (YD1200BBM4KAF)	3.1GHz	2MB	P2.60	Pinnacle Ridge	B2	65W
AMD	5800X(100-000000063)	3.8GHz	4MB	P3.20	Vermeer	B2	105W
AMD	5900X(100-000000061)	3.7GHz	6MB	P3.20	Vermeer	B2	105W
AMD	5800(100-000000456)	3.4GHz	4MB	P3.20	Vermeer	B2	65W
AMD	5600X(100-000000065)	3.7GHz	3MB	P3.20	Vermeer	B2	65W
AMD	5950X(100-000000059)	3.4GHz	8MB	P3.20	Vermeer	B2	105W
AMD	5900(100-000000062)	3.0GHz	6MB	P3.20	Vermeer	B2	65W
AMD	5700X(100-000000926)	3.4GHz	4MB	P4.10	Vermeer		65W
AMD	5600(100-000000927)	3.5GHz		P4.10	Vermeer		65W
