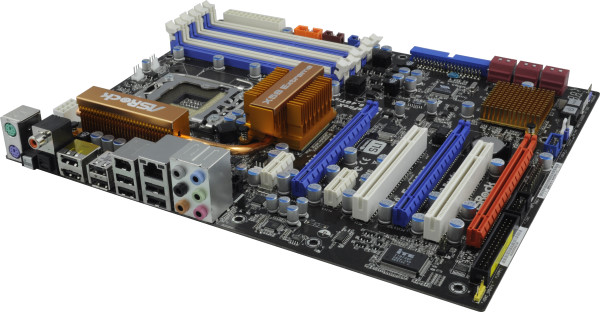

ASROCK X58 EXTREME LGA 1366 MOTHERBOARD
Actual product may vary.
Description
ASRock X58 Extreme LGA 1366 Intel X58 ATX Intel Motherboard. Get excellent graphics and computing performance with ASRock X58 motherboard. Based on Intel’s X58 chipsets, this ATX form-factor board is designed to support the latest LGA 1366 Core i7 processors.
Having no application limitation of graphics cards, the ASRock X58 motherboard allows you to apply NVIDIA SLI and ATI CrossFire technology according to your needs. Dominate your applications and games with up to 24GB of DDR3 memory fitting into six 240-pin slots with triple channel support and QPI up to 6.4GT/s for increased performance. Onboard Gigabit Ethernet LAN means that you can connect to other networked devices without running into a bottleneck.
Three PCI Express 2.0 x16 graphics card slots can achieve CrossFire-and-SLI-linked performance at a fraction of the price. Six 3Gb/s SATA connectors give you the ability to store massive amounts of data locally with several RAID configurations possible for extra security and high-speed performance and an eSATA port provides the same capabilities for an external drive. A half-dozen USB 2.0 ports give you additional options in connecting and expanding your system.
Specifications:
| CPU | - Intel® Socket 1366 Core™ i7 Processor Extreme Edition / Core™ i7 Processor Supports Intel® Dynamic Speed Technology - System Bus up to 6400 MT/s; Intel® QuickPath Interconnect - Advanced V8 Power Phase Design - Supports Hyper-Threading Technology - Supports Untied Overclocking Technology - Supports EM64T CPU |
| Chipset | - Northbridge: Intel® X58 - Southbridge: Intel® ICH10R |
| Memory | - Triple Channel DDR3 memory technology - 6 x DDR3 DIMM slots - Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066 non-ECC, un-buffered memory - Supports DDR3 ECC, un-buffered memory with Intel® Workstation 1S Xeon® processors 3500 series - Max. capacity of system memory: 24GB - Supports Intel® Extreme Memory Profile (XMP) |
| BIOS | - 8Mb AMI BIOS - AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment - Supports I. O. T. (Intelligent Overclocking Technology) - Supports Smart BIOS |
| Audio, Video and Networking | |
| Graphics | - n/a |
| Audio | - 7.1 CH HD Audio with Content Protection - DAC with 110dB dynamic range (ALC890 Audio Codec) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111DL - Supports Wake-On-LAN |
| Expansion / Connectivity | |
| Slots | - 3 x PCI Express 2.0 x16 slots (blue @ x16 mode, orange @ x4 mode) (Double-wide slot spacing between each PCI-E slot) - 2 x PCI Express x1 slots - 2 x PCI slots - Supports ATI™ CrossFireX™, 3-Way CrossFireX™ and Quad CrossFireX™ - Supports NVIDIA® SLI™ and Quad SLI™ |
| Connector | - 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel Matrix Storage), NCQ, AHCI and Hot Plug functions - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x IEEE 1394 header - 1 x TPM header - CPU/Chassis/NB/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) |

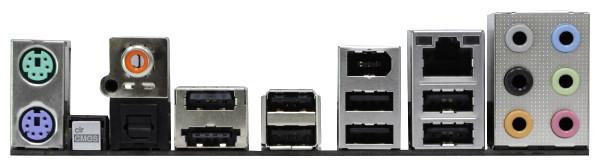

| Rear Panel I/O | I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 7 x Ready-to-Use USB 2.0 Ports - 1 x Powered eSATAII/USB Connector - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x IEEE 1394 Port - 1 x Clear CMOS Switch - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock OC Tuner - Intelligent Energy Saver - Instant Boot - ASRock Instant Flash - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) |
| Smart Switch | - 1 x Power Switch - 1 x Reset Switch - 1 x Clear CMOS Switch |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | - 1 x ASRock SLI_Bridge_2S Card - Quick Installation Guide, Support CD, I/O Shield - Floppy/ATA 133 Cables - 4 x SATA Data Cables (optional) - 2 x SATA 1 to 1 Power Cables (optional) |
| Hardware Monitor | - CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/NB/Power Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
