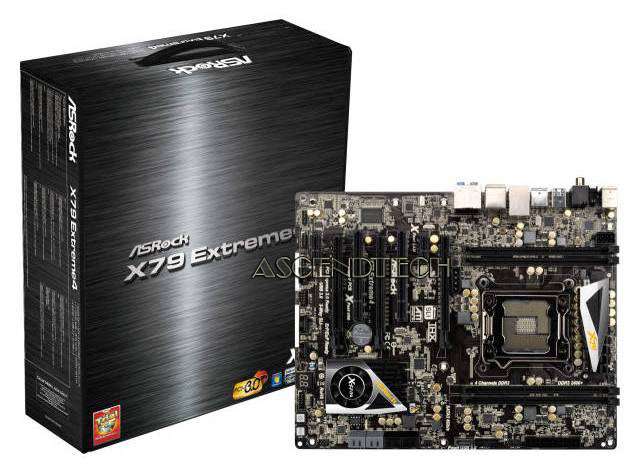

ASROCK X79 EXTREME4 LGA2011 DDR3 USB 3.0

ASRock X79 Extreme4 LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 ATX Intel Motherboard. The ASRock X79 Extreme4 is based off Intel’s X79 Express chipset. The X79 Express chipset is Intel’s latest offering and the only chipset supporting Intel’s socket LGA2011 Sandy Bridge-E CPUs.

Features:

Digi Power
More Precise, More Efficient. By adopting digital pulse-width modulation (PWM), the ASRock motherboard can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.

Premium Gold Caps
Top-Class Quality Guaranteed. Premium Gold Caps are luxury capacitors. These 100% Japan-made solid capacitors are sleek, high gloss caps with a premium gold coating representing long life and stable performance.

Advanced 6+2 Power Phase
The advanced 6+2 Power Phase features sturdy components and completely smooth power delivery to the CPU. It offers unmatched overclocking capability and enhanced performance with the lowest temperatures for PC gaming enthusiasts.

Next-Gen PCI-E 3.0 Support
The ASRock motherboards support the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth for the next-gen PCI Express 3.0 VGA cards, provide ultimate graphics performance.

ASRock XFast Charger
Fast Charge & Charge Anytime. XFast Charger is the best and fastest technology to charge your mobile devices via PC. With the superb XFast Charger USB port, users are assured to enjoy the quick charging experience anytime. In addition to Apple devices, it is also capable of Charging the BC 1.1 standard smart devices.

Specifications:

Manufacturer: ASRock
Part Number: X79 Extreme4
CPU Socket Type:
LGA 2011
CPU Type:
Intel Core i7 (LGA2011) Edition processor series
Supported CPU Technologies:
Turbo Boost Technology 2.0
Chipset:
Intel X79 Chipset
Memory:
4×240pin DIMM slots Supports up to DDR3 2400+(OC)/1600/1333/1066/800 32GB maximum
Expansion Slots:
3 x PCI Express 3.0 x16 3 (x16, x16, x8))
2 x PCI Express 2.0 x1
2 PCI Slot
Storage Devices:
4 x SATA 3Gb/s
5 x SATA 6Gb/s
RAID 2 x SATA3 6.0 Gb/s and 4 x SATA2 3.0 Gb/s support RAID (0, 1, 5, 10) by Intel X79
Audio:
8-channel Intel High Definition Realtek ALC898
LAN: Broadcom BCM57781 10/100/1000Mbps
Interfaces:
2 x PS/2
USB 1.1/2.0
6 x USB 2.0
USB 3.0
2 x USB 3.0
IEEE 1394
1 x IEEE 1394
eSATA
1 x eSATA 6Gb/s
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Onboard USB
2 x USB 3.0 + 6 x USB 2.0
Onboard 1394
1 x 1394
Other Connectors
1 x IR header
1 x CIR header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
CPU/Chassis/Power/SB FAN connector
24 pin ATX power connector
8 pin 12V power connector
SLI/XFire power connector
Front panel audio connector
1 x Dr. Debug with LED
Form Factor:
ATX
Dimensions:
12.0" x 9.6"
