ASRock Z370 SLI Xtreme Mboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

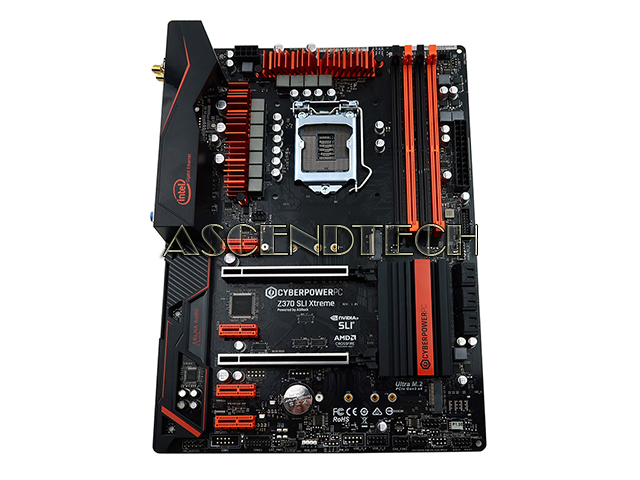

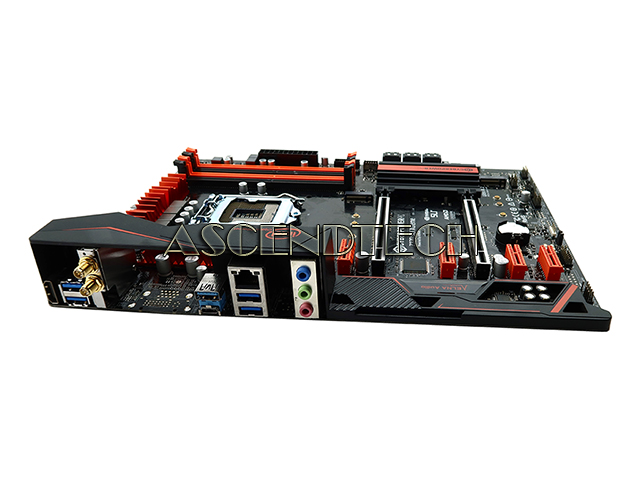

Asrock Z370 Sli Xtreme Mboard No I/O. Part Number: 80-Mxb650-A1a01
  Enlarge
Asrock Z370 Sli Xtreme Mboard No I/O. Part Number: 80-Mxb650-A1a01
Asrock Z370 Sli Xtreme Mboard No I/O. Part Number: 80-Mxb650-A1a01
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKZ370SLIXTR
Brand Asrock
Model Z370 SLI Xtreme
Part Number 80-MXB650-A1A01
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

ASRock CyberPowerPC Z370 SLI Xtreme Intel Chipset Z370 Socket LGA1151 DDR4 USB HDMI SATA 6Gb/s ATX Desktop Motherboard 80-MXB650-A1A01.

Chipset: Intel Z370
Socket: Intel LGA1151
Compatible/Supported CPU: 8th Generation Intel Core Processors
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC892 Audio Code
Connectors: 1x TPM Header; 1x Chassis Intrusion Header; 1x Power LED and Speaker Header; 1x CPU Fan Connector (4-pin); 2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 3x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection); 1x RGB 4pins header.
Input/Output Ports: 2x Antenna Ports; 1x HDMI Port; 5x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection); 1x USB 3.1 Gen1 Type-C Port (Supports ESD Protection); 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: 2x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode); 4x PCI Express 3.0 x1 Slots (Flexible PCIe); 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module Supports NVMe SSD as boot disks.
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit

New Page 1

Additional Specifications:

Graphics
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
- Max. shared memory 1024MB
- Graphics output options: HDMI
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) 30Hz
- Supports 4K Ultra HD (UHD) playback with HDMI Port

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment

Mulit GPU support
2-Way SLI / CrossfireX
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
