Asrock Z390 Lga 1151 Configurator

Model

Brand

ASRock

Model

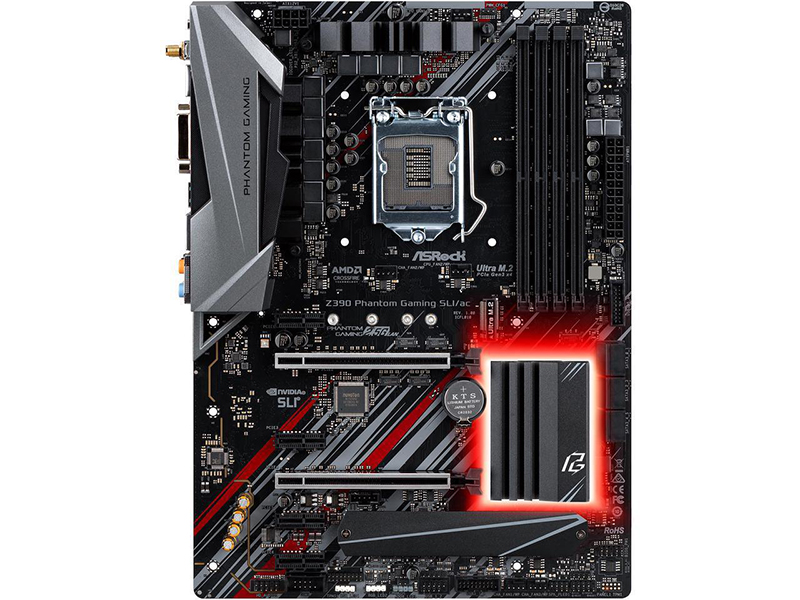

Z390 PHANTOM GAMING SLI/ac

Supported CPU

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

Supports 9th and 8th Gen Intel Core processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel Z390

Onboard Video

Onboard Video Chipset

Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30 Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60 Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 4300+(OC)*/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Maximum Memory Supported

128GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*
* Supports NVMe SSD as boot disks

PCI Express x1

4 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Other Slots

1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE2)

Storage Devices

SATA 6Gb/s

6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.

M.2

1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

Intel Optane Ready

Yes

SATA RAID

RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek RTL8125AG

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Intel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps

Bluetooth

Supports Bluetooth 4.2 / 3.0 + High speed class II

Rear Panel Ports

Back I/O Ports

2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.1 Gen2 Type-A Port (ReDriver) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (ReDriver) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Intel Z390) (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)

Other Connectors

1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
1 x Performance Mode / Easy OC Header

* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CHA_FAN2/WP supports the water cooler fan of maximum 2A (24W) fan power.
***** CHA_FAN1/WP and CHA_FAN3/WP support the water cooler fan of maximum 1A (12W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 8.8"

Power Pin

1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
