ASRock Z390 Phantom Gaming 4-IB No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MB80MXB9Q0A1A02
Brand Asrock
Model Z390 Phantom Gaming 4-IB
Part Number 80-MXB9Q0-A1A02
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!
Description

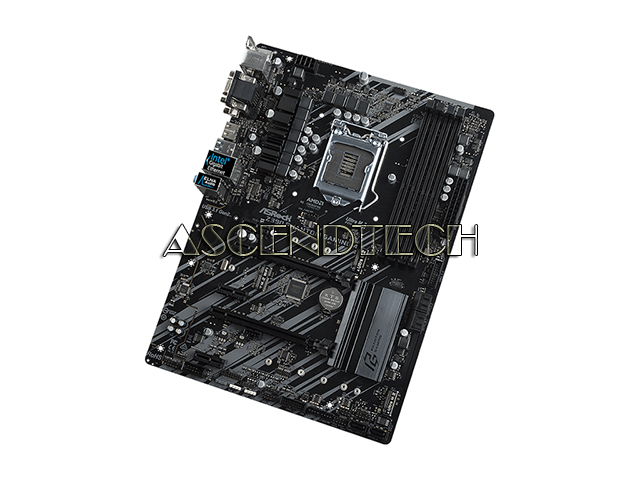

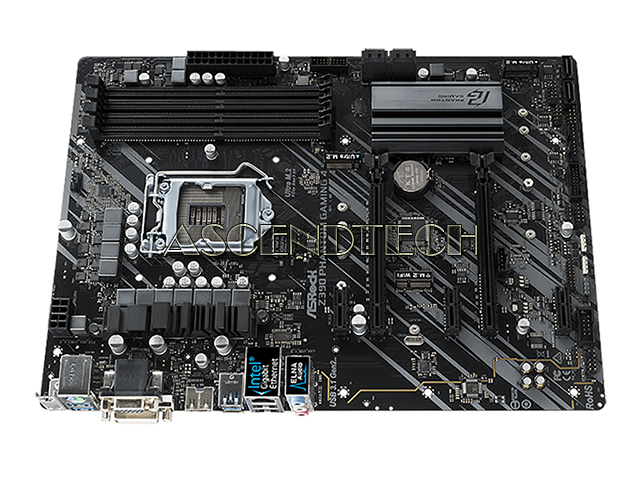

ASRock Z390 Phantom Gaming 4-IB Rev:1.0 Intel Chipset Z390 Socket LGA1151 DDR4 USB HDMI VGA DVI SATA 6GB/s ATX Desktop Motherboard 80-MXB9Q0-A1A02.
Chipset: Intel Z390
Socket: Intel LGA1151
Compatible/Supported CPU: 9th and 8th Gen Intel Core processors
Max Supported Memory: Up to 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC892 Codec
Connectors: 1 x COM Port Header; 1 x TPM Header; 1 x Power LED and Speaker Header; 2 x RGB LED Headers; 1 x Addressable LED Header; 1 x CPU Fan Connector (4-pin); 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 1 x Thunderbolt AIC Connector (5-pin); 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection); 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection); 1 x Performance Mode / Easy OC Header.

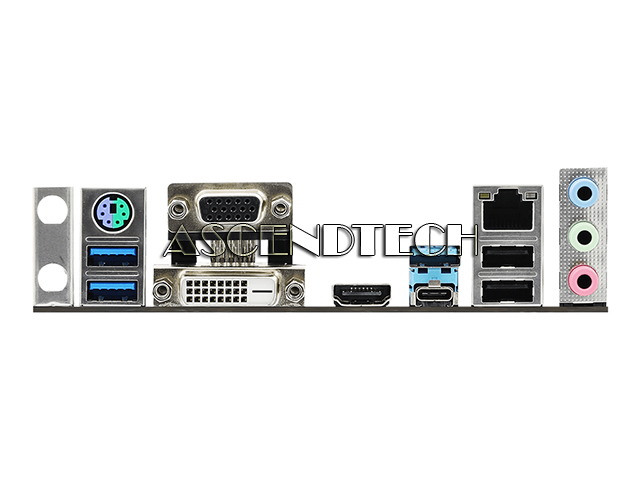

Input/Output Ports: 1 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); 2 x USB 3.1 Gen1 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)); 3 x PCI Express 3.0 x1 Slots (Flexible PCIe); Supports AMD Quad CrossFireX and CrossFireX; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT).
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Features: Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) 30Hz; 10 Power Phase Design; Supports DDR4 4300MHz+ (OC); 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi; AMD Quad CrossFireX and CrossFireX; Graphics Output Options: HDMI, DVI-D, D-Sub; 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps; 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3); 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear); Intel Gigabit LAN; ASRock Polychrome SYNC.
Additional Specifications:
Graphics
Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) 30Hz
Supports DVI-D with max. resolution up to 1920x1200 60Hz
Supports D-Sub with max. resolution up to 1920x1200 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment
Unique Feature
ASRock USB 3.1 Gen2
ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Support
| Socket | Family | Model | Core | Frequency | Cache | Power | Since BIOS |
| 1151 | Core i9 | i9-9900KS(R0) | Coffee Lake | 4.0GHz | 16MB | 127W | P4.30 |
| 1151 | Core i9 | i9-9900KF(P0) | Coffee Lake | 3.6GHz | 16MB | 95W | P1.30 |
| 1151 | Core i9 | i9-9900K(P0) | Coffee Lake | 3.6GHz | 16MB | 95W | P1.10 |
| 1151 | Core i9 | i9-9900KF(R0) | Coffee Lake | 3.6GHz | 16MB | 95W | P4.00 |
| 1151 | Core i9 | i9-9900K(R0) | Coffee Lake | 3.6GHz | 16MB | 95W | P4.00 |
| 1151 | Core i9 | i9-9900(R0) | Coffee Lake | 3.1GHz | 16MB | 65W | P4.00 |
| 1151 | Core i9 | i9-9900T(R0) | Coffee Lake | 2.1GHz | 16MB | 35W | P4.00 |
| 1151 | Core i7 | i7-9700K(R0) | Coffee Lake | 3.6GHz | 12MB | 95W | P4.00 |
| 1151 | Core i7 | i7-9700T(R0) | Coffee Lake | 2.0GHz | 12MB | 32W | P4.00 |
| 1151 | Core i7 | i7-9700(R0) | Coffee Lake | 3.0GHz | 12MB | 65W | P4.00 |
| 1151 | Core i7 | i7-9700KF(R0) | Coffee Lake | 3.6GHz | 12MB | 95W | P4.00 |
| 1151 | Core i7 | i7-9700KF(P0) | Coffee Lake | 3.6GHz | 12MB | 95W | P1.30 |
| 1151 | Core i7 | i7-9700F(R0) | Coffee Lake | 3.0GHz | 12MB | 65W | P4.00 |
| 1151 | Core i7 | i7-9700K(P0) | Coffee Lake | 3.6GHz | 12MB | 95W | P1.10 |
| 1151 | Core i7 | i7-8700K(U0) | Coffee Lake | 3.7GHz | 12MB | 95W | All |
| 1151 | Core i7 | i7-8700(U0) | Coffee Lake | 3.2GHz | 12MB | 65W | All |
| 1151 | Core i7 | i7-8700T(U0) | Coffee Lake | 2.4GHz | 12MB | 35W | All |
| 1151 | Core i7 | i7-8086K | Coffee Lake | 4.0GHz | 12MB | 95W | All |
| 1151 | Core i5 | i5-9600KF(P0) | Coffee Lake | 3.7GHz | 9MB | 95W | P1.30 |
| 1151 | Core i5 | i5-9600K(P0) | Coffee Lake | 3.7GHz | 9MB | 95W | P1.10 |
| 1151 | Core i5 | i5-9400F(U0) | Coffee Lake | 2.9GHz | 9MB | 65W | P1.30 |
| 1151 | Core i5 | i5-9400T(R0) | Coffee Lake | 1.8GHz | 9MB | 35W | P4.00 |
| 1151 | Core i5 | i5-9600T(U0) | Coffee Lake | 2.3GHz | 9MB | 35W | P4.00 |
| 1151 | Core i5 | i5-9600(U0) | Coffee Lake | 3.1GHz | 9MB | 65W | P4.00 |
| 1151 | Core i5 | i5-9500(U0) | Coffee Lake | 3.0GHz | 9MB | 65W | P4.00 |
| 1151 | Core i5 | i5-9500T(U0) | Coffee Lake | 2.2GHz | 9MB | 35W | P4.00 |
| 1151 | Core i5 | i5-9400(U0) | Coffee Lake | 2.9GHz | 9MB | 65W | P1.30 |
| 1151 | Core i5 | i5-9400F(P0) | Coffee Lake | 2.9GHz | 9MB | 65W | P1.30 |
| 1151 | Core i5 | i5-9400T(U0) | Coffee Lake | 1.8GHz | 9MB | 35W | P4.00 |
| 1151 | Core i5 | i5-9400(R0) | Coffee Lake | 2.9GHz | 9MB | 65W | P4.00 |
| 1151 | Core i5 | i5-9500F(U0) | Coffee Lake | 3.0GHz | 9MB | 65W | P4.00 |
| 1151 | Core i5 | i5-9600K(R0) | Coffee Lake | 3.7GHz | 9MB | 95W | P4.00 |
| 1151 | Core i5 | i5-9600KF(R0) | Coffee Lake | 3.7GHz | 9MB | 95W | P4.00 |
| 1151 | Core i5 | i5-9400F(R0) | Coffee Lake | 2.9GHz | 9MB | 65W | P4.00 |
| 1151 | Core i5 | i5-8600K(U0) | Coffee Lake | 3.6GHz | 9MB | 95W | All |
| 1151 | Core i5 | i5-8600(U0) | Coffee Lake | 3.1GHz | 9MB | 65W | All |
| 1151 | Core i5 | i5-8600T(U0) | Coffee Lake | 2.3GHz | 9MB | 35W | All |
| 1151 | Core i5 | i5-8500(U0) | Coffee Lake | 3GHz | 9MB | 65W | All |
| 1151 | Core i5 | i5-8500T(U0) | Coffee Lake | 2.1GHz | 9MB | 35W | All |
| 1151 | Core i5 | i5-8400(U0) | Coffee Lake | 2.8GHz | 9MB | 65W | All |
| 1151 | Core i5 | i5-8400T(U0) | Coffee Lake | 1.7GHz | 9MB | 35W | All |
| 1151 | Core i3 | i3-8350K(B0) | Coffee Lake | 4.0GHz | 8MB | 91W | All |
| 1151 | Core i3 | i3-9350KF(B0) | Coffee Lake | 4GHz | 8MB | 91W | P4.00 |
| 1151 | Core i3 | I3-9100F(B0) | Coffee Lake | 3.6GHz | 6MB | 65W | P4.30 |
| 1151 | Core i3 | i3-9100F(U0) | Coffee Lake | 3.6GHz | 6MB | 65W | P4.00 |
| 1151 | Core i3 | i3-9300(B0) | Coffee Lake | 3.7GHz | 8MB | 62W | P4.00 |
| 1151 | Core i3 | i3-9100T(B0) | Coffee Lake | 3.1GHz | 6MB | 35W | P4.00 |
| 1151 | Core i3 | i3-9300T(B0) | Coffee Lake | 3.2GHz | 8MB | 35W | P4.00 |
| 1151 | Core i3 | i3-9350K(B0) | Coffee Lake | 4.0GHz | 8MB | 91W | P4.00 |
| 1151 | Core i3 | i3-9100(B0) | Coffee Lake | 3.6GHz | 6MB | 65W | P4.00 |
| 1151 | Core i3 | i3-8300(B0) | Coffee Lake | 3.7GHz | 8MB | 62W | All |
| 1151 | Core i3 | i3-8300T(B0) | Coffee Lake | 3.2GHz | 8MB | 35W | All |
| 1151 | Core i3 | i3-8100(B0) | Coffee Lake | 3.6GHz | 6MB | 65W | All |
| 1151 | Core i3 | i3-8100(U0) | Coffee Lake | 3.6GHz | 6MB | 65W | All |
| 1151 | Core i3 | i3-8100T(B0) | Coffee Lake | 3.1GHz | 6MB | 35W | All |
| 1151 | Pentium Gold | G5600T(B0) | Coffee Lake | 3.3GHz | 4MB | 35W | P4.00 |
| 1151 | Pentium Gold | G5420T(B0) | Coffee Lake | 3.2GHz | 4MB | 35W | P4.00 |
| 1151 | Pentium Gold | G5600F(B0) | Coffee Lake | 3.9GHz | 4MB | 54W | P4.00 |
| 1151 | Pentium Gold | G5420(U0) | Coffee Lake | 3.8GHz | 4MB | 58W | P4.00 |
| 1151 | Pentium Gold | G5420T(U0) | Coffee Lake | 3.2GHz | 4MB | 35W | P4.00 |
| 1151 | Pentium Gold | G5420(B0) | Coffee Lake | 3.8GHz | 4MB | 54W | P4.00 |
| 1151 | Pentium Gold | G5620(B0) | Coffee Lake | 4.0GHz | 4MB | 54W | P4.00 |
| 1151 | Pentium Gold | G5600(B0) | Coffee Lake | 3.9GHz | 4MB | 54W | All |
| 1151 | Pentium Gold | G5500(B0) | Coffee Lake | 3.8GHz | 4MB | 54W | All |
| 1151 | Pentium Gold | G5500T(B0) | Coffee Lake | 3.2GHz | 4MB | 35W | All |
| 1151 | Pentium Gold | G5400(U0) | Coffee Lake | 3.7GHz | 4MB | 58W | All |
| 1151 | Pentium Gold | G5400T(U0) | Coffee Lake | 3.1GHz | 4MB | 35W | All |
| 1151 | Pentium Gold | G5400T(B0) | Coffee Lake | 3.1GHz | 4MB | 35W | All |
| 1151 | Pentium Gold | G5400(B0) | Coffee Lake | 3.7GHz | 4MB | 54W | All |
| 1151 | Celeron | G4920(B0) | Coffee Lake | 3.2GHz | 2MB | 54W | All |
| 1151 | Celeron | G4930T(B0) | Coffee Lake | 3.0GHz | 2MB | 35W | P4.00 |
| 1151 | Celeron | G4950(B0) | Coffee Lake | 3.3GHz | 2MB | 54W | P4.00 |
| 1151 | Celeron | G4930(B0) | Coffee Lake | 3.2GHz | 2MB | 54W | P4.00 |
| 1151 | Celeron | G4900(B0) | Coffee Lake | 3.1GHz | 2MB | 54W | All |
| 1151 | Celeron | G4900T(B0) | Coffee Lake | 2.9GHz | 2MB | 35W | All |
