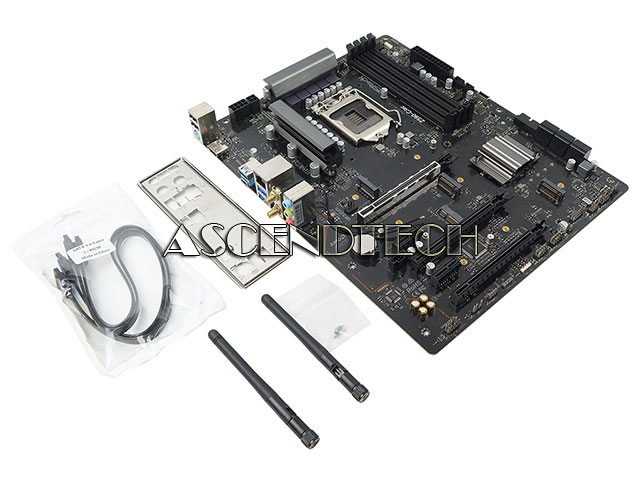

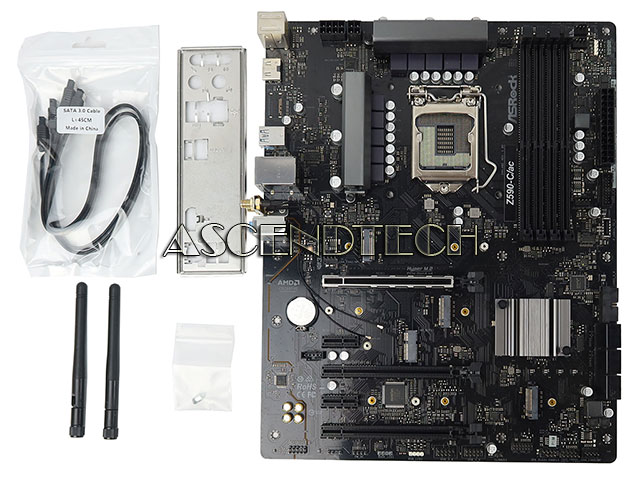

Z590-C/ac 80-MXBFZ2-A1A02 | Asrock Z590-C/Ac Desktop Motherboard

ASRock Z590-C/ac Intel Chipset Z590 Socket LGA1200 DDR4 USB-C HDMI SATA 6GB/s ATX Desktop Motherboard 80-MXBFZ2-A1A02.

Chipset: Intel Z590

Socket: Intel LGA1200

Compatible/Supported CPU: 10th Gen Intel Core Processors and 11th Gen Intel Core Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 4800MHz(O.C.)

Storage Interface: SATA 3 6Gb/s

RAID Support: 0, 1, 5, 10

Network/Communications: Intel I219V Gigabit LAN 10/100/1000 Mb/s

Audio: ALC897 Audio Codec, 7.1 CH HD Audio, Supports Surge Protection, Nahimic Audio

Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x 4 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), 2x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Expansion Slots: 3x PCI Express x16 Slots, 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), 6x SATA3 6.0 Gb/s, 2x M.2 Socket (M2_1), supports M Key type 2260/2280, 1x M.2 Socket (M2_3), supports M Key type 2260/2280/22110

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V

Graphics
- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel Core Processors)

Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
Intel 802.11ac WiFi
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multi-adjustment
