ASRock Z690-C/ac DDR4 Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Asrock Z690-C/Ac Ddr4 Motherboard No I/O
Asrock Z690-C/Ac Ddr4 Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKBHA2A1B05D
BrandAsrock
ModelZ690-C/ac
Part Number80-MXBHA2-A1B01
Compatible Part Numbers80-MXBHA2-A1B05
CategoryIntel Lga1700 Motherboard
ConditionPre-Owned Grade D

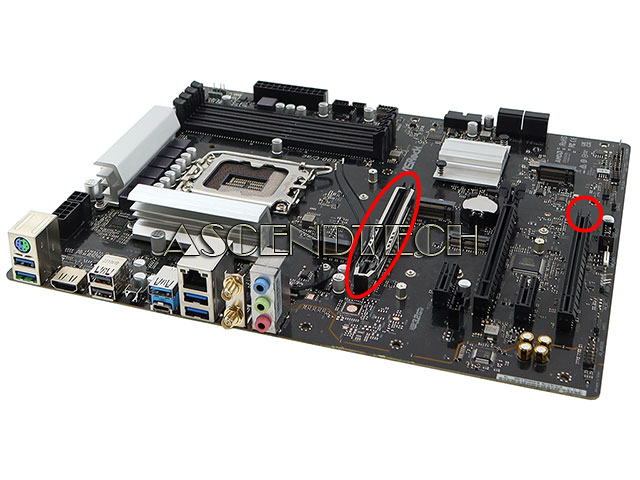

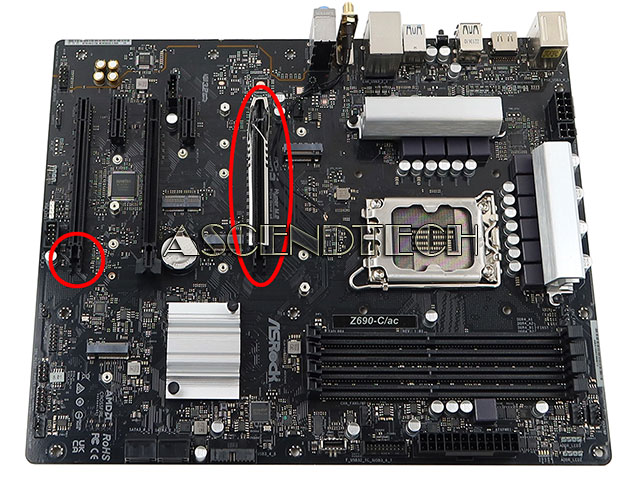

Condition DescriptionPlease note, this item is used and has minor scuffs and scratches, damaged PCI express slot, as well as missing locking clips from two PCI express slots! Item is fully operational and functions as intended! This motherboard does not include an I/O Shield, cables, fan’s brackets, fan’s mounting backplate, or any other accessories! Please see the images!

Description

ASRock Z690-C/ac Intel Chipset Z690 Socket LGA1700 DDR4 HDMI USB-C ATX Desktop Motherboard 80-MXBHA2-A1B01.

Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Bluetooth Standard: Bluetooth+ High speed class II
Wireless Lan Support: 802.11ac WLAN
Network/Communications: Intel I219V Gigabit LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 4x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 1x Thunderbolt AIC Connector (3-pin), 1x USB 2.0 Header (Supports 2 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port with LED, 1x BIOS Flashback Button, 3x HD Audio Jacks
Expansion Slots: 1x Hyper M.2 Socket (M2_1, Key M) 2260/2280 PCIe Gen4x4, 1x Hyper M.2 Socket (M2_2, Key M) 2242/2260/2280 PCIe Gen4x4, 1x Hyper M.2 Socket (M2_3, Key M) 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4, 1x Ultra M.2 Socket (M2_4, Key M) 2280 PCIe Gen3x4, 4x SATA3 6.0 Gb/s, 1x PCIe 5.0 x16 Slot (PCIE1) x16 mode, 1x PCIe 4.0 x16 Slot (PCIE3) x4 mode, 1x PCIe 3.0 x16 Slot (PCIE5) x1 mode, 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE4), 1x M.2 Socket (Key E) 2230 WiFi/BT PCIe WiFi module and Intel CNVi
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit / 11 64-bit

Additional Specifications:

Onboard Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

BIOS
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Unique Features
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
802.11ac WiFi
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

CPU Support:

Socket LGA1700
VendorCPU ModelCPU FrequencyL3 CacheCore NameWattage
Inteli9-14900T(B0)1.1GHz36MBCore i935W
Inteli9-14900KF(B0)3.2GHz36MBCore i9125W
Inteli9-14900K(B0)3.2GHz36MBCore i9125W
Inteli9-14900F(B0)2.0GHz36MBCore i965W
Inteli9-14900(B0)2.0GHz36MBCore i965W
Inteli7-14790F2.1GHz36MBCore i765W
Inteli7-14700T(B0)1.3GHz33MBCore i735W
Inteli7-14700KF(B0)3.4GHz33MBCore i7125W
Inteli7-14700K(B0)3.4GHz33MBCore i7125W
Inteli7-14700F(B0)2.1GHz33MBCore i765W
Inteli7-14700(B0)2.1GHz33MBCore i765W
Inteli5-14600T(B0)1.8GHz24MBCore i535W
Inteli5-14600KF(B0)3.5GHz24MBCore i5125W
Inteli5-14600K(B0)3.5GHz24MBCore i5125W
Inteli5-14600(B0)2.7GHz24MBCore i565W
Inteli5-14500T(B0)1.7GHz24MBCore i535W
Inteli5-14500(C0)2.6GHz24MBCore i565W
Inteli5-14490F2.8GHz24MBCore i565W
Inteli5-14400T1.5G20MBCore i535W
Inteli5-14400F(C0)2.5GHz20MBCore i565W
Inteli5-14400F(B0)2.5GHz20MBCore i565W
Inteli5-14400(C0)2.5GHz20MBCore i565W
Inteli5-14400(B0)2.5GHz20MBCore i565W
Inteli3-14100T(H0)2.7GHz12MBCore i335W
Inteli3-14100F(H0)3.5GHz12MBCore i358W
Inteli3-14100(H0)3.5GHz12MBCore i360W
Intel300T(H0)3.4GHz6MB 35W
Intel300(H0)3.9GHz6MB 46W
Inteli9-13900T(B0)1.1GHz36MBCore i935W
Inteli9-13900KS(B0)3.2GHz36MBCore i9150W
Inteli9-13900KF(B0)3GHz36MBCore i9125W
Inteli9-13900K(B0)3GHz36MBCore i9125W
Inteli9-13900F(B0)2GHz36MBCore i965W
Inteli9-13900(B0)2GHz36MBCore i965W
Inteli7-13700T(B0)1.4GHz30MBCore i735W
Inteli7-13700KF(B0)3.4GHz30MBCore i7125W
Inteli7-13700K(B0)3.4GHz30MBCore i7125W
Inteli7-13700F(B0)2.1GHz30MBCore i765W
Inteli7-13700(B0)2.1GHz30MBCore i765W
Inteli5-13600T(C0)1.8GHz24MBCore i535W
Inteli5-13600KF(B0)3.5GHz24MBCore i5125W
Inteli5-13600K(B0)3.5GHz24MBCore i5125W
Inteli5-13600(C0)2.7GHz24MBCore i565W
Inteli5-13500T(C0)1.6GHz24MBCore i535W
Inteli5-13500(C0)2.5GHz24MBCore i565W
Inteli5-13400T(C0)1.3GHz20MBCore i535W
Inteli5-13400F(C0)2.5GHz20MBCore i565W
Inteli5-13400F(B0)2.5GHz20MBCore i565W
Inteli5-13400(C0)2.5GHz20MBCore i565W
Inteli5-13400(B0)2.5GHz20MBCore i565W
Inteli3-13100T(H0)2.5GHz12MBCore i335W
Inteli3-13100F(H0)3.4GHz12MBCore i358W
Inteli3-13100(H0)3.4GHz12MBCore i360W
IntelG7400T(H0)3.1GHz6MBPentium Gold35W
IntelG7400(H0)3.7GHz6MBPentium Gold46W
Inteli9-12900T(C0)1.4GHz30MBCore i935W
Inteli9-12900KF(C0)3.2GHz30MBCore i9125W
Inteli9-12900K(C0)3.2GHz30MBCore i9125W
Inteli9-12900F(C0)2.4GHz30MBCore i965W
Inteli9-12900(C0)2.4GHz30MBCore i965W
Inteli7-12700T(C0)1.4GHz25MBCore i735W
Inteli7-12700KF(C0)3.6GHz25MBCore i7125W
Inteli7-12700K(C0)3.6GHz25MBCore i7125W
Inteli7-12700F(C0)2.1GHz25MBCore i765W
Inteli7-12700(C0)2.1GHz25MBCore i765W
Inteli5-12600T(H0)2.1GHz18MBCore i535W
Inteli5-12600KF(C0)3.7GHz20MBCore i5125W
Inteli5-12600K(C0)3.7GHz20MBCore i5125W
Inteli5-12600(H0)3.3GHz18MBCore i565W
Inteli5-12500T(H0)2.0GHz18MBCore i535W
Inteli5-12500(H0)3.0GHz18MBCore i565W
Inteli5-12400T(H0)1.8GHz18MBCore i535W
Inteli5-12400F(H0)2.5GHz18MBCore i565W
Inteli5-12400F(C0)2.5GHz18MBCore i565W
Inteli5-12400(H0)2.5GHz18MBCore i565W
Inteli5-12400(C0)2.5GHz18MBCore i565W
Inteli3-12300T(H0)2.3GHz12MBCore i335W
Inteli3-12300(H0)3.5GHz12MBCore i360W
Inteli3-12100T(H0)2.2GHz12MBCore i335W
Inteli3-12100F(H0)3.3GHz12MBCore i358W
Inteli3-12100(H0)3.3GHz12MBCore i360W
IntelG6900T(H0)2.8GHz4MBCeleron35W
IntelG6900(H0)3.4GHz4MBCeleron46W
