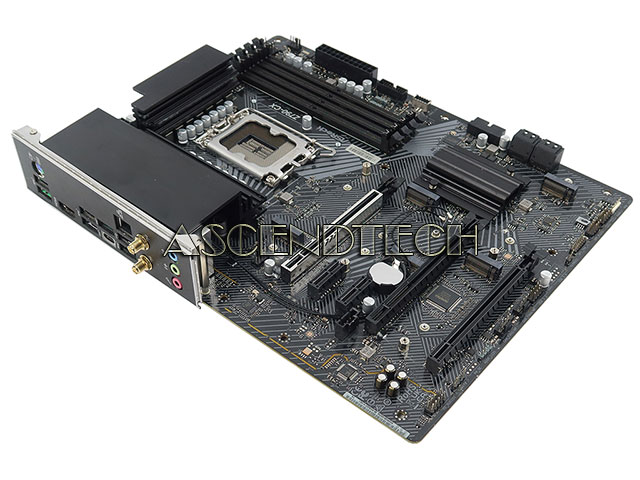

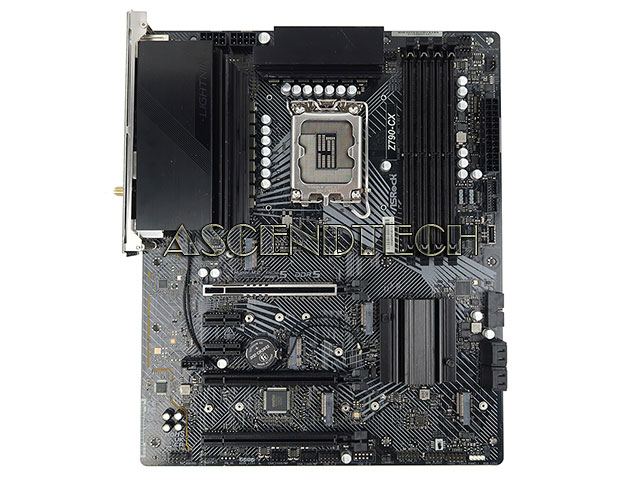

ASRock Z790-CX Intel Chipset Z790 Socket LGA1700 DDR5 SATA 6Gb/s HDMI ATX Desktop Motherboard 80-MXBQ22-A1A01.
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6800 (OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11axe Wi-Fi 6E Module
Network/Communications: Intel I219V Gigabit LAN 10/100/1000 Mb/s
Connectors: x eDP Signal Connector, 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 5x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 2x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 1x USB 2.0 Header (Supports 2 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen1 Header
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 5x USB 3.2 Gen1 Ports, 1x USB 2.0 Port, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1, 1x M.2 Key-E for WiFi, 3x M.2 PCIe Gen4x4, 1x M.2 SATA 3, 4x SATA 3 6Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Intel Xe Graphics Architecture (Gen 12)
1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Unique Features
Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity
- Z790-C / Z790-CW: 802.11ac Wi-Fi Module
- Z790-CX: 802.11axe Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
