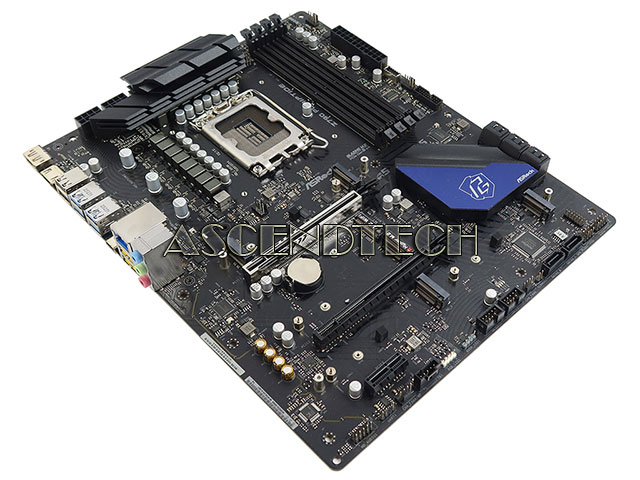

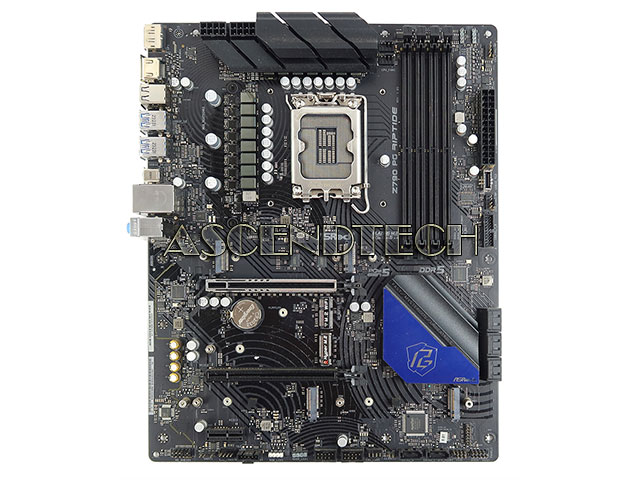

ASRock Z790 PG Riptide Intel Chipset Z790 Socket LGA1700 DDR5 SATA 6Gb/s HDMI DP ATX Desktop Motherboard 80-MXBJX0-A1B01.
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 1x Chassis Fan Connector (4-pin), 4x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 2x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Input/Output Ports: 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 2x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 1x USB 3.2 Gen1 Type-C Port, 4x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Interface: 1x PCIe 5.0 x16 (PCIE1) x16 mode, 1x PCIe 4.0 x16 (PCIE2) x4 mode, 1x PCIe 3.0 x1 (PCIE3), 1x M.2 Socket (Key E), type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2, 1x M.2 2280 PCIe Gen5x4, 4x M.2 2280 PCIe Gen4x4, 8x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Intel Xe Graphics Architecture (Gen 12)
HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Unique Features
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- Killer 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
