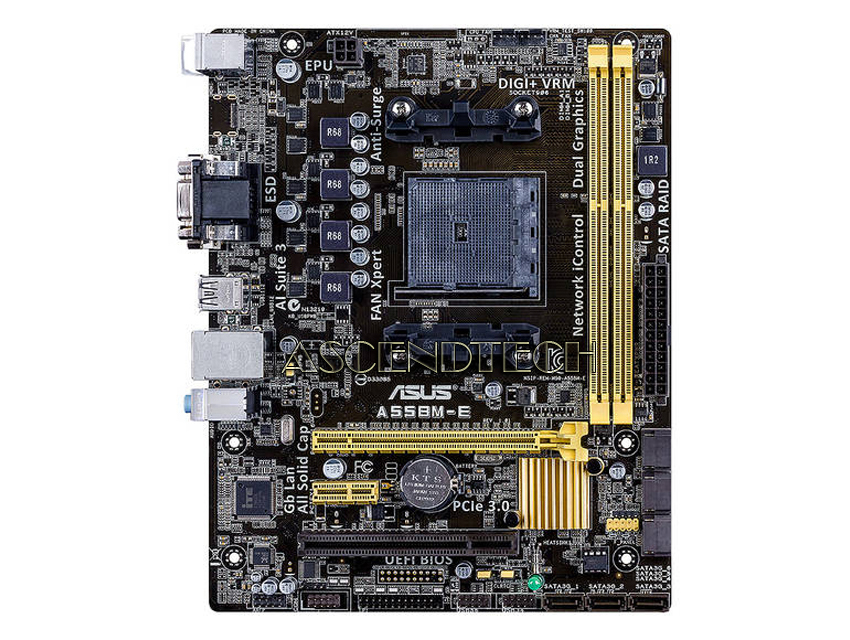

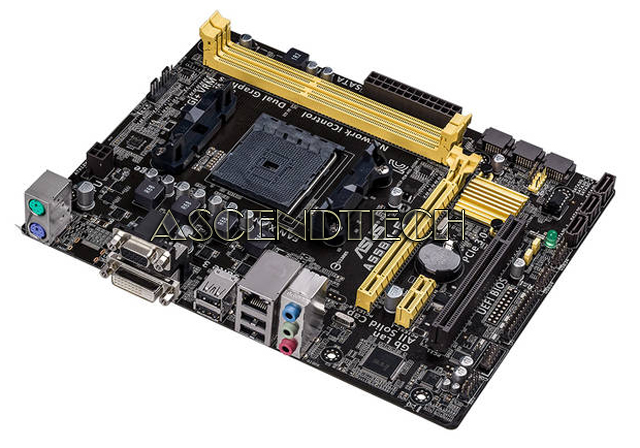

ASUS A55BM-E FM2+ DDR3 SATA2 DVI VGA MB

ASUS A55BM-E FM2+ socketed motherboard features high-endurance 5X Protection and new UEFI BIOS on the A55 chipset. Asus meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Features:

• ASUS 5X PROTECTION: All-round protection provides the best quality, reliability, and durability
• New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
• Ai Suite 3 - One-stop access to innovative ASUS features
• Network iControl - Real-time network bandwidth management

Overview:

ASUS 5X PROTECTION
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X PROTECTION. We use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.

New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, D.O.C.P profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

Network iControl
Real-time network bandwidth management
One click to prioritize network traffic for applications you're currently using or set up favorite profiles to run at specific times. Avoid network congestion, speed up downloading, and make sure online gaming runs optimized, all through an intuitive user interface.

Q-Slot
Effortless PCI Express component removal
Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you don’t have to struggle with installing or removing even the biggest graphics cards.

ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

AMD® Dual Graphics Technology
AMD Radeon™ Dual Graphics is an exclusive technology only available to AMD platforms. It allows AMD APUs and selected AMD Radeon™ HD 6000 series graphics cards to work together, delivering an unrivalled 3D gaming graphics quality and performance. By combining both the discrete and integrated graphics processors, gamers can now enjoy faster and smoother frame rates on any latest gaming titles.

AMD® A-Series Accelerated Processor with AMD Radeon™ R Series Graphics
This motherboard fully supports the latest AMD Socket FM2+ Kaveri APUs with AMD Radeon R series graphics and retains compatibility with AMD Socket FM2 (Richland and Trinity) APUs. AMD Socket FM2+ APUs support Microsoft® DirectX 11.1 for incredibly fast and smooth graphics, native PCI Express 3.0 for full-speed expansion and 4K resolutions via HDMI and DisplayPort connections.

AMD® A55 FCH(Hudson D2)
AMD® A55 FCH (Hudson D2) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 graphics. It supports 6 x SATA 3Gb/s ports.

Specifications:
