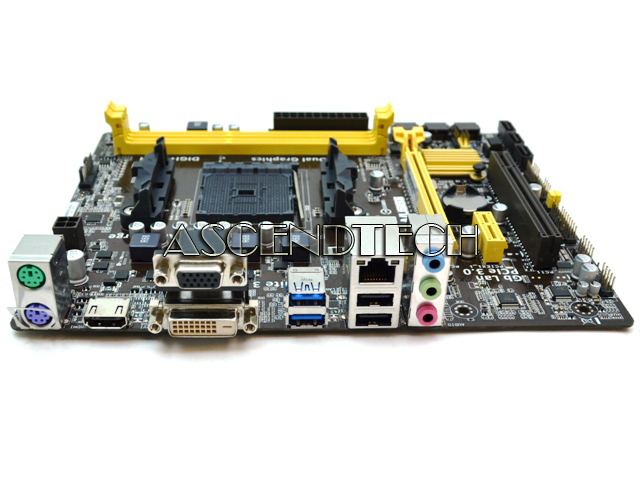

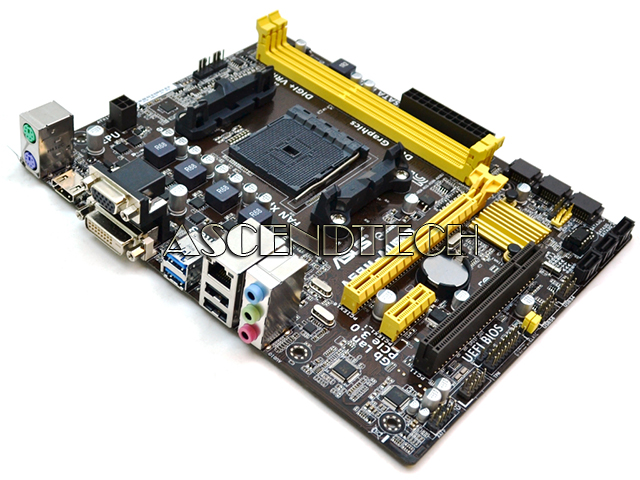

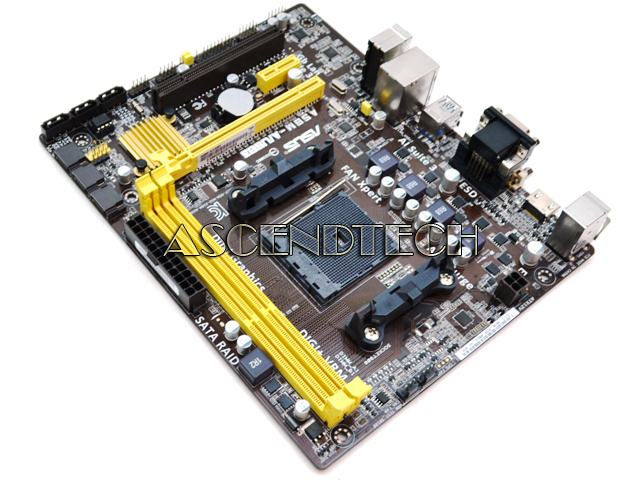

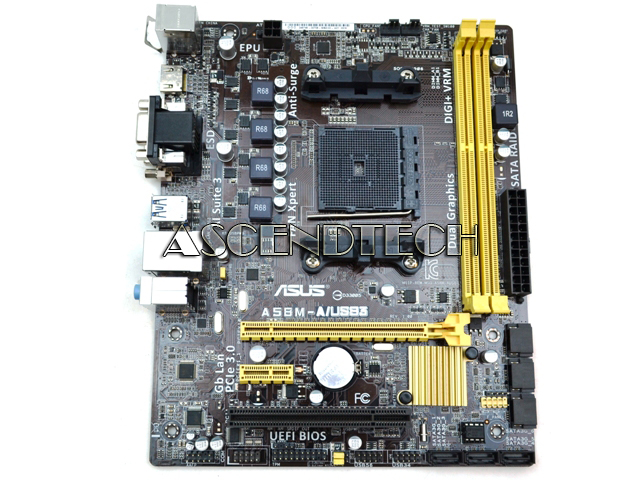

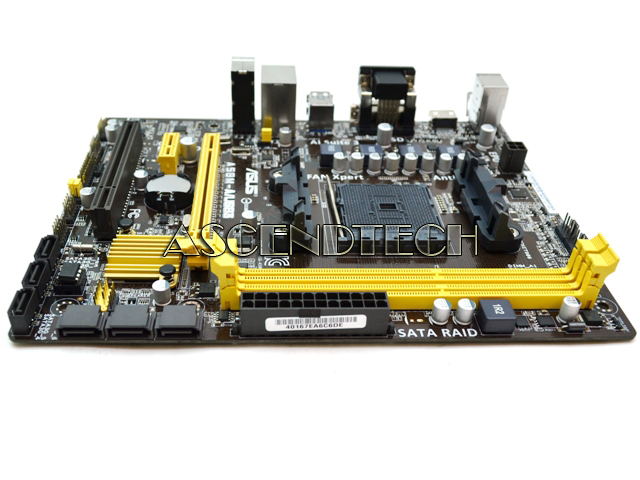

ASUS A58M-A/USB3 mATX Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Asus A58m-A/Usb3 Matx Motherboard No I/O
  Enlarge
Asus A58m-A/Usb3 Matx Motherboard No I/O
Asus A58m-A/Usb3 Matx Motherboard No I/O
Asus A58m-A/Usb3 Matx Motherboard No I/O
Asus A58m-A/Usb3 Matx Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBASA58MAUSB3F2
Brand Asus / Asustek Computer
Model A58M-A/USB3
Category Amd Socket Fm2+ Motherboard

Description

ASUS A58M-A/USB3 AMD Socket FM2+ DDR3 USB 3.0/2.0 SATA 3Gb/s Micro ATX Motherboard. ASUS-branded motherboards deliver the highest standards of innovation, performance, and reliability. All ASUS motherboards launch following a strict validation process that guarantees the best quality and compatibility in the industry. ASUS tests each motherboard with literally hundreds of memory, expansion card, and external device combinations from nearly every brand and vendor on the market. ASUS Motherboards also pass the most demanding stress-testing process in the industry, verifying their stability, reliability, and longevity.

Please Note: This motherboard does not come with the I/O shield! This part is not needed and you can still install this board in a standard ATX case. No cables, manuals, or any other accessories included.





Features:

  • 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
  • New UEFI BIOS - Friendlier, easier, and more intuitive with helpful info added USB 3.0
  • Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
  • AI Suite 3 - One-Stop Access to Innovative ASUS Features




Specifications:

ManufacturerASUS
ModelA58M-A/USB3 Rev 1.00
CPU
  • AMD Socket FM2+ Athlon/A- Series Processors
  • Supports CPU up to 4 cores
  • Supports AMD Turbo Core 3.0 Technology
    * Refer to www.asus.com for CPU support list, or see below
    • Chipset
  • AMD A58 FCH (Bolton D2)
    • Memory
  • 2 x DIMM, Max. 32GB*, DDR3 2400(OC)/2133/1866**/1600/1333 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Support AMD Memory Profile (AMP) memory
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard
    * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)
    • Graphics
  • Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU
  • Multi-VGA output support: HDMI/DVI/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60Hz*
    - Supports DVI with max. resolution 2560 x 1600 @ 60Hz
    - Supports RGB with max. resolution 1920 x 1600 @ 60Hz
  • Maximum shared memory of 2048MB
  • AMD Dual Graphics technology support**
    * Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port
    ** Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
    • Audio
  • Realtek ALC887-VD 8-Channel High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    * Use a chassis with HD audio module in the front panel to support an 8-channel audio output
    • LAN
  • Realtek 8111GR, 1 x Gigabit LAN Controller(s)
    • Expansion Slots
  • 1 x PCIe 3.0/2.0 x16*
  • 1 x PCIe 2.0 x1
  • 1 x PCI
    * Only FM2+ processors can support PCIe 3.0
    • StorageAMD A58 FCH (Bolton D2) chipset:
  • 6 x SATA 3Gb/s port(s), dark brown
  • Support Raid 0, 1, 10, JBOD
    • USBASMedia ASM1042 Controller:
  • 2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
    AMD A58 FCH (Bolton D2) chipset:
  • 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
    • Internal I/O Connectors
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x TPM header
  • 1 x COM port(s) connector(s)
  • 6 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s)
    • Back I/O Connectors
  • 1 x PS/2 keyboard (purple) port
  • 1 x PS/2 mouse (green) port
  • 1 x DVI-D Dual Link port
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0 port(s)
  • 2 x USB 2.0 port(s)
  • 3 x Audio jack(s)
    • BIOS
  • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 4.0a
  • Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note
  • Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
    • Unique FeaturesASUS 5X Protection:
  • ASUS DIGI+ VRM - 3 + 1 Phase digital power design
  • ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  • ASUS ESD Guards - Enhanced ESD protection
  • ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  • ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU:
  • EPU
    ASUS Exclusive Features:
  • AI Suite 3
  • Ai Charger+
  • Anti-Surge
  • ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • USB 3.0 Boost
  • Disk Unlocker
    ASUS Quiet Thermal Solution:
  • Stylish Fanless Design Heat-sink solution
  • ASUS Fan Xpert
    ASUS EZ DIY:
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 2
  • ASUS MyLogo 2
    ASUS Q-Design:
  • ASUS Q-Slot
    • Operating System Support
  • Windows 8.1, 32bit/64bit
  • Windows 8, 32bit/64bit
  • Windows 7, 32bit/64bit
  • Windows XP, 32bit
    • Form Factor
  • Micro ATX Form Factor
  • 8.9" x 7.2" (22.6cm x 18.3cm)

    •







    Supported CPU List:

    • AMD A10 PRO-8850B (FM2+, ZD885BXBI44JC, rev.A1, 3.9GHz, 4C, L2:2M, 95W)
    • AMD A10-5700 (AD5700OKA44HJ, rev.A1, 3.4GHz, L2:4M, 65W)
    • AMD A10-5800B (AD580BWOA44HJ, rev.A1, 3.8GHz, L2:4M, 100W)
    • AMD A10-5800K (AD580KWOA44HJ, rev.A1, 3.8GHz, L2:4M, 100W)
    • AMD A10-6700 (FM2, AD6700OKA44HL, rev.A1, 3.7GHz, 4C, L2:4M, HD 8670D, 65W)
    • AMD A10-6700T (FM2, AD670TYHA44HL, rev.A1, 2.5GHz, 4C, L2:4M, HD 8650D, 45W)
    • AMD A10-6790B (FM2, AD679BWOA44HL, rev.A1, 4.0GHz, 4C, L2:4M, HD 8670D, 100W)
    • AMD A10-6790K (FM2, AD679KWOA44HL, rev.A1, 4.0GHz, 4C, L2:4M, HD 8670D, 100W)
    • AMD A10-6800B (FM2, AD680BWOA44HL, rev.A1, 4.1GHz, 4C, L2:4M, HD 8670D, 100W)
    • AMD A10-6800K (FM2, AD680KWOA44HL, rev.A1, 4.1GHz, 4C, L2:4M, HD 8670D, 100W)
    • AMD A10-7700K (FM2+, AD770KXBI44JA, rev.A1, 3.5GHz, L2:4M, GCN Radeon R7, 95W)
    • AMD A10-7800 (FM2+, AD7800YBI44JA, rev.A1, 3.5GHz, L2:2M, GCN Radeon R7, 65W)
    • AMD A10-7800B (FM2+, AD780BYBI44JA, rev.A1, 3.5GHz, L2:2M, 65W)
    • AMD A10-7850B (FM2+, AD785BXBI44JA, rev.A1, 3.7GHz, L2:4M, 95W)
    • AMD A10-7850K (FM2+, AD785KXBI44JA, rev.A1, 3.7GHz, L2:4M, GCN Radeon R7, 95W)
    • AMD A10-7860K (FM2+, AD786KYBI44JC, rev.A1, 3.6GHz, L2:2M, 65W)
    • AMD A10-7870K (FM2+, AD787KXDI44JC, rev.A1, 3.9GHz, L2:4M, 95W)
    • AMD A10-7890K (FM2+, AD789KXDI44JC, rev.A1, 4.1GHz, L2:2M, 95W)
    • AMD A4-4000 (FM2, AD40000KA23HL,3.0Ghz, L2: 1M , HD7480, rev.A1, 65W)
    • AMD A4-4020(FM2, AD4020OKA23HL,3.2Ghz, L2: 1M , HD7480D, rev.A1, 65W)
    • AMD A4-5300 (AD5300OKA23HJ, rev.A1, 3.4GHz, L2:1M, 65W)
    • AMD A4-5300B (FM2, AD530BOKA23HJ, rev.A1, 3.4GHz, L2:1M, 65W)
    • AMD A4-6300 (FM2, AD6300OKA23HL, rev.A1, 3.7GHz, 2C, L2:1M, HD 8370D, 65W)
    • AMD A4-6300B (FM2, AD630BOKA23HL, rev.A1, 3.7GHz, 2C, L2:1M, HD 8370D, 65W)
    • AMD A4-6320(FM2, AD6320OKA23HL, rev.A1, 3.8GHz, 2C, L2:1M, HD 8370D, 65W)
    • AMD A4-7300 (FM2, AD7300OKA23HLA, rev.A1, 3.8GHz, 2C, L2:1M, GCN Radeon R5, 65W)
    • AMD A4-7300B (FM2, AD730BOKA23HLA, rev.A1, 3.8GHz, 2C, L2:1M, 65W)
    • AMD A6-5400B (AD540BOKA23HJ, rev.A1, 3.6GHz, L2:1M, 65W)
    • AMD A6-5400K (AD540KOKA23HJ, rev.A1, 3.6GHz, L2:1M, 65W)
    • AMD A6-6400B (FM2, AD640BOKA23HL, rev.A1, 2C, 3.9GHz, L2:1M, HD 8470D, 65W)
    • AMD A6-6400K (FM2, AD640KOKA23HL, rev.A1, 2C, 3.9GHz, L2:1M, HD 8470D, 65W)
    • AMD A6-6420K (FM2, AD642KOKA23HL, rev.A1, 2C, 4.0GHz, L2:1M, HD 8470D, 65W)
    • AMD A6-7400B (FM2+, AD740BYBI23JA, rev.A1, 2C, 3.5GHz, L2:1M, 65W)
    • AMD A6-7400K (FM2+, AD740KYBI23JA, rev.A1, 2C, 3.5GHz, L2:1M, GCN Radeon R7, 65W)
    • AMD A6-7470K (FM2+, AD747KYBI23JC, rev.A1, 2C, 3.7GHz, L2:1M, 65W)
    • AMD A6-8550 (FM2+, AD8550YBI23JC, rev.A1, 2C, 3.7GHz, L2:1M, 65W)
    • AMD A8-5500 (AD5500OKA44HJ, rev.A1, 3.2GHz, L2:4M, 65W)
    • AMD A8-5500B (AD550BOKA44HJ, rev.A1, 3.2GHz, L2:4M, 65W)
    • AMD A8-5600K (AD560KWOA44HJ, rev.A1, 3.6GHz, L2:4M, 100W)
    • AMD A8-6500 (FM2, AD6500OKA44HL, rev.A1, 4C, 3.5GHz, L2:4M, HD 8570D, 65W)
    • AMD A8-6500B (FM2, AD650BOKA44HL, rev.A1, 4C, 3.5GHz, L2:4M, HD 8570D, 65W)
    • AMD A8-6500T (FM2, AD650TYHA44HL, rev.A1, 4C, 2.1GHz, L2:4M, HD 8550D, 45W)
    • AMD A8-6600K (FM2, AD660KWOA44HL, rev.A1, 4C, 3.9GHz, L2:4M, HD 8570D, 100W)
    • AMD A8-7600 (FM2+, AD7600YBI44JA, rev.A1, 4C, 3.1GHz, L2:2M, GCN Radeon R7, 65W)
    • AMD A8-7600B (FM2+, AD760BYBI44JA, rev.A1, 4C, 3.1GHz, L2:2M, 65W)
    • AMD A8-7650K (FM2+, AD765KXBI44JA, rev.A1, 4C, 3.3GHz, L2:4M, 95W)
    • AMD A8-7670K (FM2+, AD767KXBI44JC, rev.A1, 4C, 3.6GHz, L2:4M, 95W)
    • AMD A8-7690K (FM2+, AD769KXBI44JC, rev.A1, 4C, 3.7GHz, L2:4M, 95W)
    • AMD A8-8650 (FM2+, ZD8650YBI44JC, rev.A1, 4C, 3.2GHz, L2:2M, 65W)
    • AMD Athlon X2 340 (FM2, 3.2Ghz, 2C, L2:1M, 65W)
    • AMD AthlonX2 350 (FM2, AD350XOKA23HL, 2C, rev.A1, 3.5GHz, L2:1M, 65W)
    • AMD AthlonX2 370K (FM2, AD370KOKA23HL, 2C, rev.A1, 4.0GHz, L2:4M, 65W)
    • AMD AthlonX2 450 (FM2+, AD450XYBI23JA, 2C, rev.A1, 3.5GHz, L2:1M, 65W)
    • AMD AthlonX4 730 (FM2, AD730XOKA44HJ, rev.A1, 2.8GHz, L2:4M, 65W)
    • AMD AthlonX4 740 (FM2, AD740XOKA44HJ, rev.A1, 3.2GHz, L2:4M, 65W)
    • AMD AthlonX4 750 (FM2, AD750XOKA44HL, 4C, rev.A1, 3.4GHz, L2:4M, 65W)
    • AMD AthlonX4 750K (FM2, AD750KWOA44HJ, rev.A1, 3.4GHz, L2:4M, 100W)
    • AMD AthlonX4 760K (FM2, AD760KWOA44HL, 4C, rev.A1, 3.8GHz, L2:4M, 100W)
    • AMD AthlonX4 835 (FM2+, AD835XACI43KA, rev.A1, 3.1GHz, L2:1M, 65W)
    • AMD AthlonX4 840 (FM2+, AD840XYBI44JAA, 4C, rev.A1, 3.1GHz, L2:2M, 65W)
    • AMD AthlonX4 845 (FM2+, AD845XACI43KA, 4C, rev.A1, 3.5GHz, L2:1M, 65W)
    • AMD AthlonX4 850 (FM2+, AD850XYBI44JC, 4C, rev.A1, 3.2GHz, L2:4M, 65W)
    • AMD AthlonX4 860K (FM2+, AD860KXBI44JAA, 4C, rev.A1, 3.7GHz, L2:2M, 95W)
    • AMD AthlonX4 870K (FM2+, AD870KXBI44JC, 4C, rev.A1, 3.9GHz, L2:4M, 95W)
    • AMD AthlonX4 880K (FM2+, AD880KXBI44JC, 4C, rev.A1, 4GHz, L2:2M, 95W)
    • AMD Sempron 250 (FM2, SD250XOKA23HL, 2C, rev.A1, 3.2GHz, L2:1M, 65W)
