ASUS A7V8X-LA AMD VIA KM400A AGP 400FSB
Actual product may vary.
Description

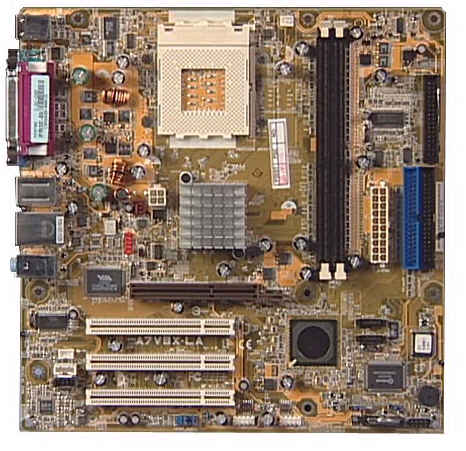

Asus A7V8X-LA motherboard is loaded with the most advanced technologies to deliver maximum performance for Socket A processors.
Specifications:
Motherboard Description | Mb manufacturer name: ASUS A7V8X-LA |
CPU | Socket A AMD Athlon XP Core frequency up to Athlon XP 3200+ |
Chipset | VIA KM400A VIA VT8237 |
Front Side Bus (FSB) | 400 / 333 / 266 MHz |
Memory | 2 x 184-pin DDR DIMM sockets Support up to maximum 2 GB memory (PC manufacturer's maximum memory may differ) Supports unbuffered PC2100/2700/3200 non-ECC DDR SDRAM memory |
Expansion Slots | Three PCI slots One AGP 8x/4x (1.5V) |
Storage | Two UltraDMA 100 IDE connectors Two Serial ATA connectors |
Integrated Graphics | VIA UniChrome graphics |
Audio | Realtek AL658 six-channel AUDIO CODEC Digital audio via an S/PDIF out interface |
LAN | Southbridge integrated 10/100 Mbps VT6103 LAN PHY |
Hardware Monitoring | Super I/O integrated monitoring of: CPU/chassis fan, MB/CPU temperature |

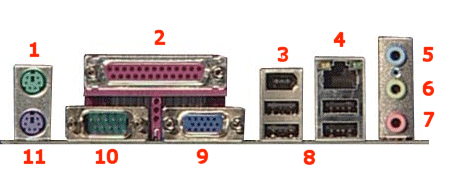

Rear Panel I/O Ports | One Parallel One Serial One PS/2 Keyboard One PS/2 Mouse One RJ45 port One Audio I/O One VGA One IEEE 1394 Four USB 2.0/1.1 (Two connectors) |
Internal I/O | Two USB connectors support additional four USB 2.0 ports One IEEE 1394 connector for an additional IEEE 1394 port CPU/chassis fan connectors 20-pin ATX power connector Front panel connector CD/AUX connectors Front panel audio connector S/PDIF out connector |
BIOS Features | 4Mb Flash ROM Award BIOS Enhanced ACPI DMI 2.0 Green features PnP features |
Industry Standard | PCI 2.2 USB 2.0/1.1 |
Manageability | WOL WOR Wake on PS/2 mouse |
Form Factor | Micro-ATX form factor: 9.6 inches x 9.6 inches (24.38 cm x 24.38 cm) |
