ASUS A8AE-LE AMD S.939 RS482 PCI-e SATA

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

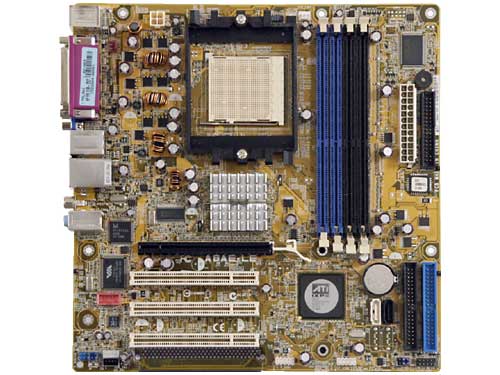

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB64ASUA8AELEUN
BrandAsus / Asustek Computer
ModelA8AE-LE SOCKET 939 OEM
CategoryAmd Socket 939 Motherboard

Description

Asus A8AE-LE Socket 939 RS482 Chipset 2000MT/s FSB PCI-Express x16 SATA DDR400 Motherboard For AMD Athlon 64 / X2 Dual Core & Sempron Processors.

*Please Note, This Model Does Not Come With Rear I/O Shield / Back-Plate Cover For Case.

Specifications:

Motherboard description
  • ASUS A8AE-LE OEM (Motherboard Only) No Cables Or Any Other Accessories!
CPU/Processor
  • Socket: 939
  • Supports AMD Athlon64, AMD Sempron and Athlon 64 X2 processors
Front-side bus (FSB)
  • 2000MT/s or 1600MT/s, depending on what the processor supports
Chipset
  • Northbridge: RS482
  • Southbridge: SB400
BIOS features
  • 4Mb LPC EEPROM
  • HP BIOS with enhanced ACPI, DMI, Green, and PnP Features Plus
Form factor
  • ATX form factor, 9.6 in x 9.6 in
Memory
  • Dual-channel memory architecture
  • 4 x 184-pin DDR DIMM sockets support unbuffered non-ECC 4 GB 400/300 MHZ DDR memory modules
  • Maximum HP/Compaq approved memory is 4 GB*
Expansion slots
  • Three PCI
  • One PCI Express
Video graphics
  • Integrated
Serial ATA
  • 2 SATA connectors
  • Each connector supports 1 serial ATA-150 disk drive
Onboard audio or audio card
  • Controller: AC97 audio
  • Location: Integrated
Onboard LAN
  • Realtek 8101L
  • 10/100 Mbps LAN PHY
Back panel I/O
  • One PS/2 mouse port
  • One PS/2 keyboard port
  • One VGA (monitor)
  • One Parallel
  • Four USB (2.0)
  • One IEEE 1394
  • One RJ-45 networking port
  • One S/PDIF out
  • Audio (line in, line out, microphone)
Internal connectors
  • One 24-pin ATX power connector
  • One 4-pin ATX power connector
  • Two IDE connectors
  • Two SATA connectors
  • One floppy drive connector
  • One CPU fan connector
  • One System fan connector (also known as duct or chassis fan)
  • One system indicator LEDs / power switch / reset button connector
  • One each, front headphone, microphone in, line in (Aux-in)
  • One front panel power and LED connectors
  • Two USB connectors supporting 4 additional USB 2.0 ports
  • One IEEE 1394a connector supporting one 1394a port

1 - PS/2 mouse port (green). This port is for a PS/2 mouse.
2 - Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3 - IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices.
4 - LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub.
5 - Line In port (light blue). This port connects a tape, CD, DVD player or other audio sources.
6 - Line Out port (lime). This port connects a headphone or a speaker. In 4- channel and 6-channel mode, the function of this port becomes Front Speaker Out.
7 - Microphone port (pink). This port connects a microphone.
8 - Coaxial S/PDIF Out port. This port connects an external audio output device via a coaxial S/PDIF cable.
9 - USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
10 - USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.
11 - VGA Graphic Adapter port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
12 - PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
