Asus A8M2N-LA HP 5188-4377 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

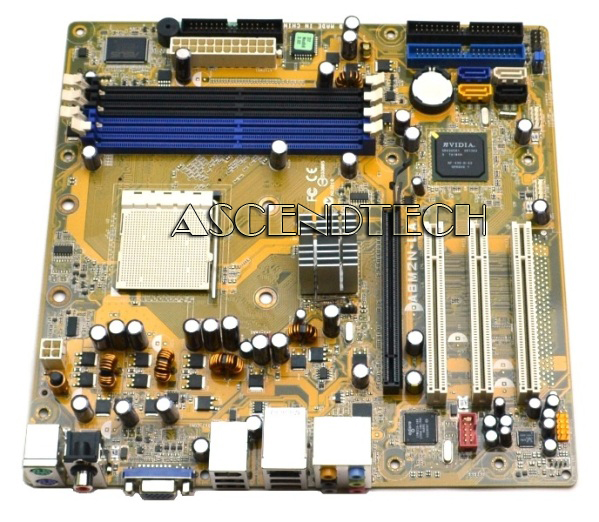

Asus A8m2n-La Hp 5188-4377 Motherboard. Model: 5188-4377 A8m2n-La
  Enlarge

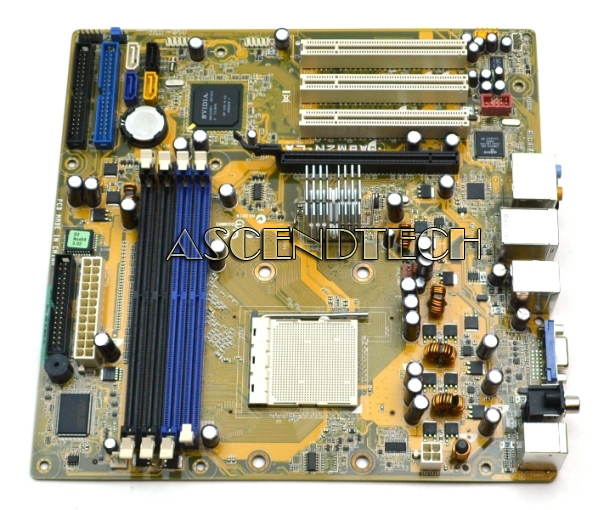

Asus A8m2n-La Hp 5188-4377 Motherboard. Model: 5188-4377 A8m2n-La

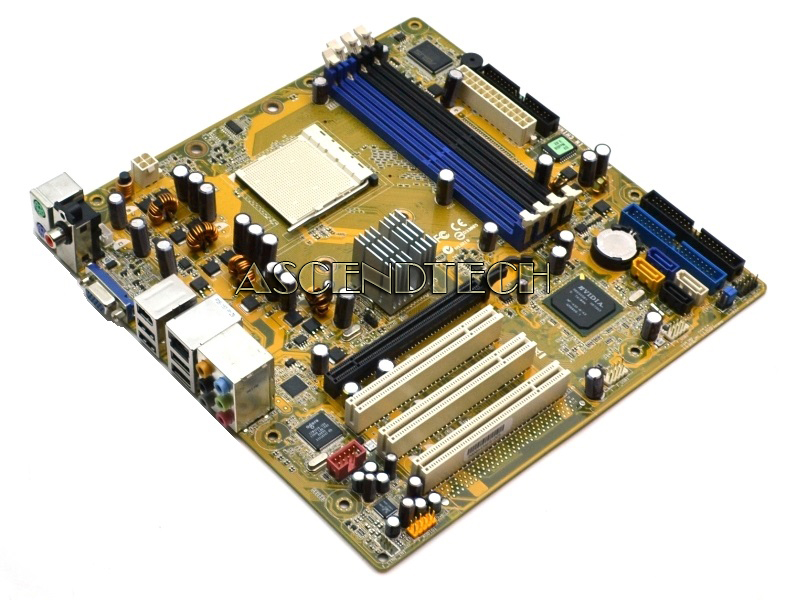

Asus A8m2n-La Hp 5188-4377 Motherboard. Model: 5188-4377 A8m2n-La

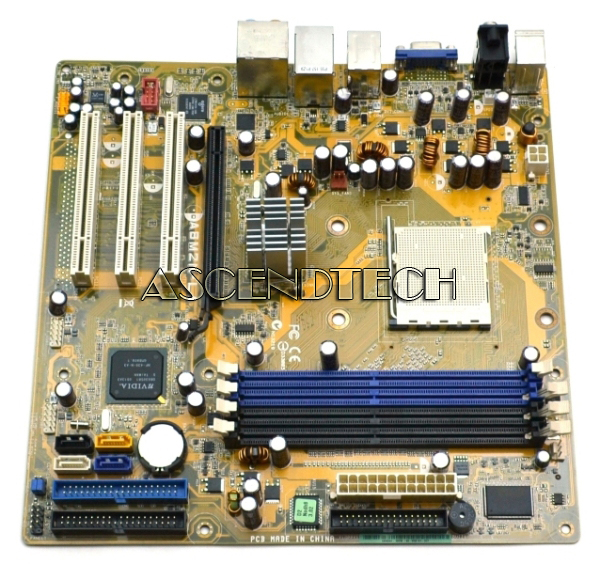

Asus A8m2n-La Hp 5188-4377 Motherboard. Model: 5188-4377 A8m2n-La

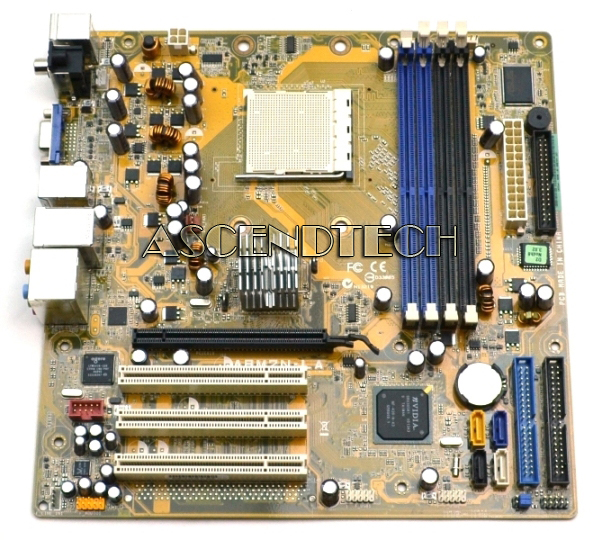

Asus A8m2n-La Hp 5188-4377 Motherboard. Model: 5188-4377 A8m2n-La
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64ASUSA8M2NLA
Brand Asus / Asustek Computer
Model 5188-4377 A8M2N-LA
Category Amd Socket Am2+ Am3 Motherboards
Condition Like New Grade A
Condition Description Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case. No other accessories included.

Description

HP 5188-4377 Nodus-GL8E Asus A8M2N-LA AMD Socket AM2 DDR2 Micro-ATX Motherboard. A straightforward and stable motherboard for the enthusiast or first time builder, the Asus A8M2N-LA is great for anyone wanting to build a system or upgrade their motherboard. Designed for the small form factor case, it will easily fit into most small desktop configurations. With an AMD socket AM2, suitable for Athlon 64, Athlon 64 X2 or Sempron processors, the A8M2N-LA is more than capable of taking care of your needs.

HP Part Number: 5188-4377
Asus Model Number: A8M2N-LA

Please note: Motherboards are part number specific. You must order by the exact part number of the motherboard you are replacing; this is required in order to avoid returns, delays and restocking fees. You can NOT go by the model or serial number alone! We obtain cross reference and compatibility information from the manufacturer (as well as other various sources); while we do this to the best of our ability, we do not guarantee its accuracy. If you are unsure, please check with your laptop manufacturer. Please order, based on the part number only!







Specifications:

CPU/Processor
  • Socket: AM2
  • Supports the following processors:
  • AMD Athlon 64
  • Athlon 64 X2 up to 5000+
  • AMD Sempron
    • Front-side bus (FSB)
  • 2000MT/s (2.0 GT/s)
    • Chipset
  • GeForce 6150 LE chipset
    • BIOS features
  • Award brand system BIOS
  • Keyboard combination to used to enter BIOS: F1
    • Form factor
  • Micro-ATX: 9.6 in X 9.6 in
    • Memory
  • Four 240-pin DDR2 DIMM sockets
  • Supports PC 4200 (533 MHz) and PC2 5300 (667 MHz) DDR2 DIMMs
  • non-ECC memory only, unbuffered
  • Maximum HP/Compaq approved memory is 4 GB*
    • Expansion slots
  • Three PCI
  • One PCI Express x16 graphics
    • Video graphics
  • Integrated
    • Serial ATA
  • 4 SATA connectors
  • Each connector supports 1 serial ATA-150 disk drive
    • Onboard audio
  • Built-in High Definition 8 channel audio
    ALC883 or ALC888 CODEC
    • Onboard LAN
  • Interface: Integrated into motherboard
  • Data transfer speeds: 10/100 Mb/s
  • Transmission standards:10-Base-T Ethernet
    • Back panel I/0
  • One PS/2 keyboard port (purple)
  • One PS/2 mouse port (green)
  • One SPDIF (coaxial) out
  • One S-Video port
  • One VGA port
  • One IEEE 1394a
  • Four USB 2.0
  • One RJ-45 networking port
  • Audio ports:
  • side speaker out (gray)
  • rear speaker out (black)
  • center/subwoofer (yellow orange)
  • line in (light blue)
  • line out (lime)
  • microphone (pink)
    • Internal connectors
  • One 24-pin ATX power connector
  • One 4-pin ATX power connector
  • Two PATA connectors
  • Four SATA connectors
  • One floppy drive connector
  • Two 12v fan connectors for CPU fan and PC fan
  • One 9-pin header for power button, reset button, power LED, and HDD LED
  • One front line input connector
  • One 9-pin audio header for headphone-out and microphone-in
  • One SPDIF output header
  • One USB 2.0 connectors supporting 4 additional USB 2.0 ports
  • One IEEE 1394a connector



    •
