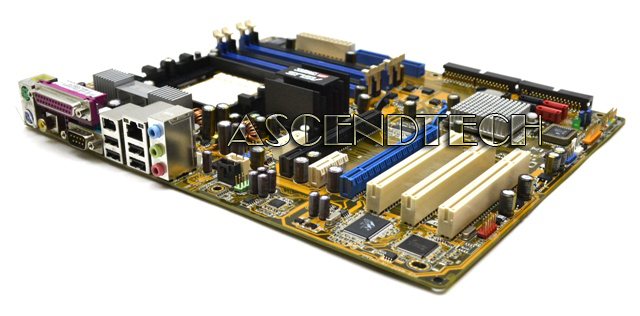

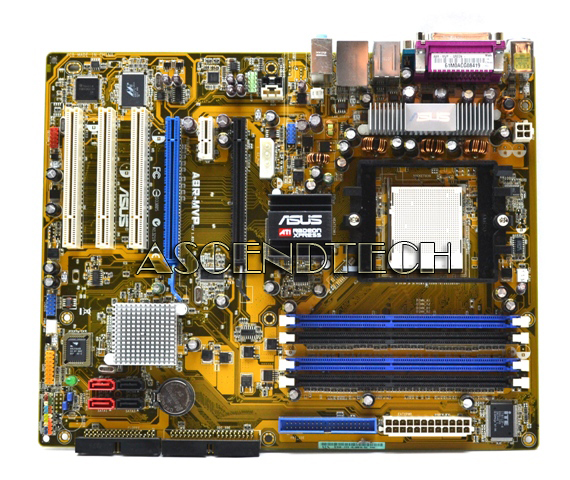

Asus A8R-MVP DDR400 Motherboard No I/O

Asus A8R-MVP SKT939 DDR400 Motherboard. The Asus A8R-MVP draws on the industry’s most advanced technologies to inspire dazzling performance in systems using AMD’s Athlon 64FX and Athlon 64 X2 processors.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Athlon 64 X2 / Athlon 64 FX / Athlon 64 SKT939

Chipset
North Bridge
ATI CrossFire Radeon Xpress 1600

Front Side Bus
1000MHz Hyper Transport (2000 MT/s)

Memory
4 x 184pin, Max. 4 GB, DDR 400/333/266 SDRAM ,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

VGA
Integrated Intel® Extreme Graphics 2
Supports RGB with max. resolution 2048 x 1536 @75Hz
Max. Refresh Rate: 1800 x 1440 @85Hz

Expansion Slots
2 x PCIe x 16
1 x PCIe
3 x PCI
Support ATI CrossFire graphics cards (both at x8 mode)

Storage
PATA
2 x ATA100 4 Dev. Max
SATA 3Gb/s
4
SATA RAID
0/1/0+1/5

LAN
Marvell 88E8001

Audio
ADI AD1986A

USB Ports
4 USB 2.0 ports

Form Factor
ATX Form Factor
12.0" x 9.6"
