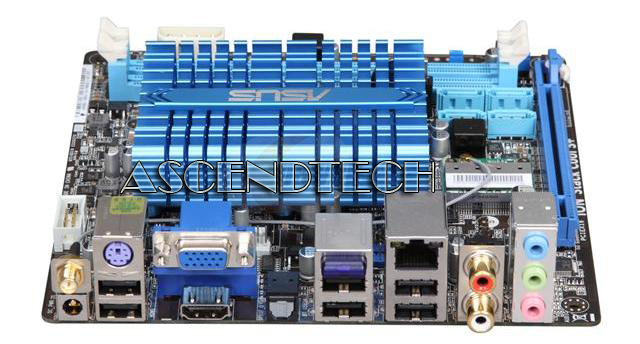

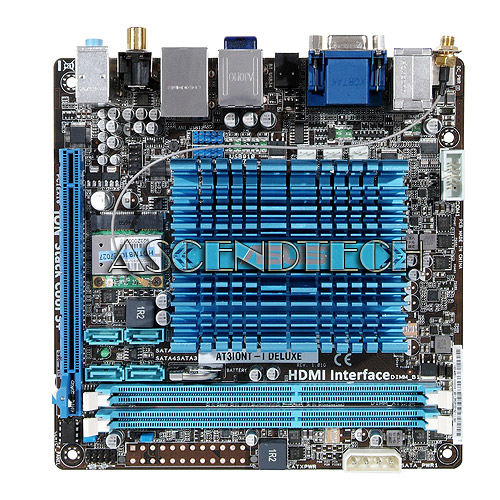

Asus AT3IONT-I DELUXE Motherboard No I/O

Asus AT3IONT-I DELUXE Intel® Atom™ 330 DDR3 Motherboard. The Intel® Atom™ processor is Intel's smallest processor, built with the world's smallest transistors and manufactured on Intel's industry-leading 45nm Hi-k Metal Gate technology. The Intel Atom processor was purpose-built for simple, affordable, notebooks and net tops.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® CPU on Board
Integrated Dual-core Intel® Atom™ processor 330

Chipset
NVIDIA ION™ Graphics Processors

Front Side Bus
533 MHz

Memory
2 x DIMM, Max. 4 GB, DDR3 1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

VGA
Integrated NVIDIA ION graphics processor
Support CUDA technology
Support PhysX technology
Supports RGB with max. resolution up to 2048x1536x32Bppx75Hz
Supports HDMI with max. resolution up to 1920x1080x32Bppx60Hz
Dual VGA output support: RGB & HDMI

Expansion Slots
1 x PCIe x16

Storage
4 x SATA 3 Gb/s ports support RAID 0, 1, AHCI mode

LAN
Gb LAN

Audio
ALC887 6-Channel (for 6 Channels+2 channel）

USB Ports
10 USB 2.0/1.1 ports (2 ports at mid-board,8 ports at back panel)

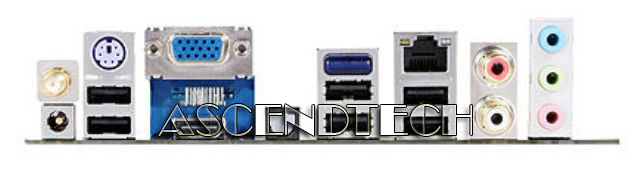

Back I/O Ports
1 x D-Sub
1 x PS/2 Keyboard
1 x HDMI
1 x S/PDIF Out (optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
6 -Channel Audio I/O
1 x BlueTooth
1 x 2-CH RCA AUDIO
WiFi 802.11b/g/n
1 x DC

Internal I/O Ports
2 x USB connectors support additional 4 USB ports
1 x COM port header
1 x CPU Fan Connector & controller
1 x Chassis Fan connector & controller
1 x Power Fan connector
1 x Front Panel connector
1 x High Definition front panel audio connector

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI v2.0a

Form Factor
Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm )
