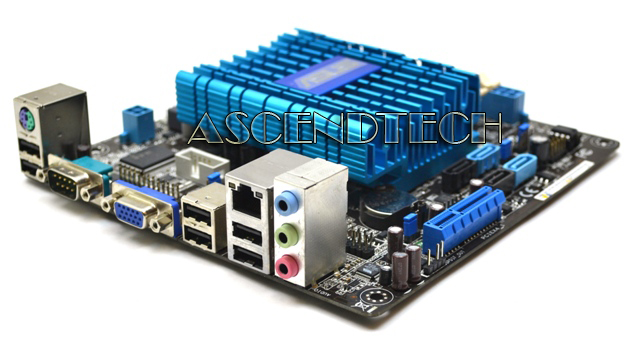

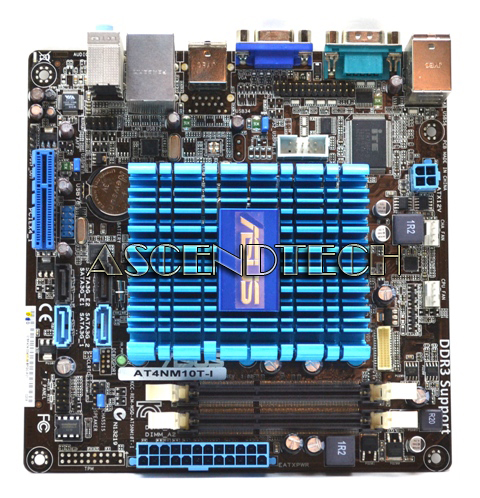

Asus AT4NM10T-I D425 Motherboard No I/O

Asus AT4NM10T-I Intel Atom D425 NM10 DDR3 Motherboard. The Intel® Atom™ processor is Intel's smallest processor, built with the world's smallest transistors and manufactured on Intel's industry-leading 45nm Hi-k Metal Gate technology. The Intel Atom processor was purpose-built for simple, affordable, notebooks and net tops. Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Atom™ D425 onboard Processors

Chipset
Intel® NM10

Memory
2 x SO-DIMM, Max. 4GB, DDR3 800 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture

VGA
Integrated Intel® GMA 3150 GPU
VGA output support : RGB port
Maximum shared memory of 256 MB

Expansion Slots
1 x PCIe x4 (x1 mode)

Storage
Built-in Controller : *1
2 x SATA 3Gb/s port(s), blue
JMicron® JMB362 controller :
2 x SATA 3Gb/s port(s), black

LAN
Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio
VIA VT1705S 6-Channel High Definition Audio CODEC

USB Ports
8 x USB 2.0 port(s) (6 at back panel, gray, 2 at mid-board)

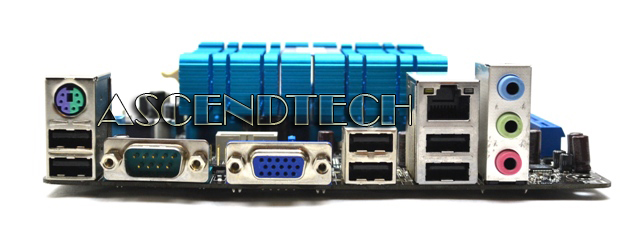

Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

Internal I/O Connectors
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM connector(s) (Optional)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x 18 bit LVDS connector(s)

BIOS
8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5

Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
