Asus B85M-E/CSM DDR3 Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

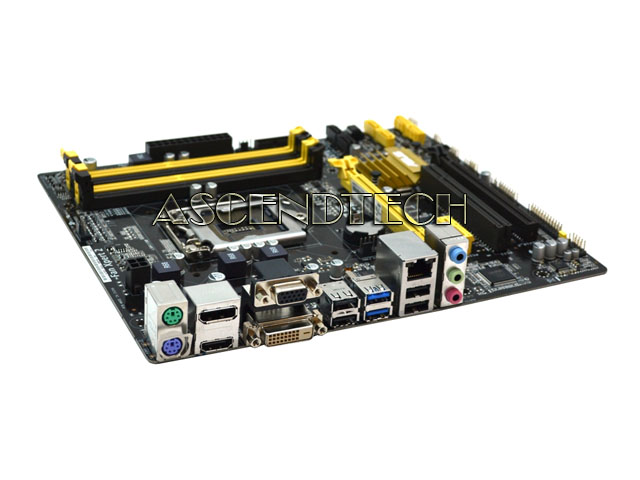

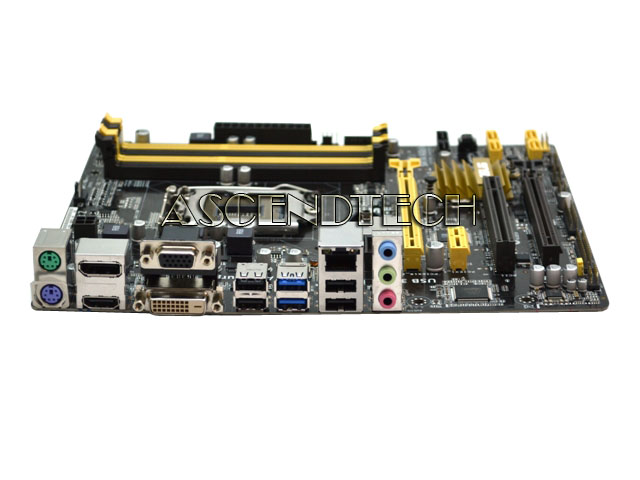

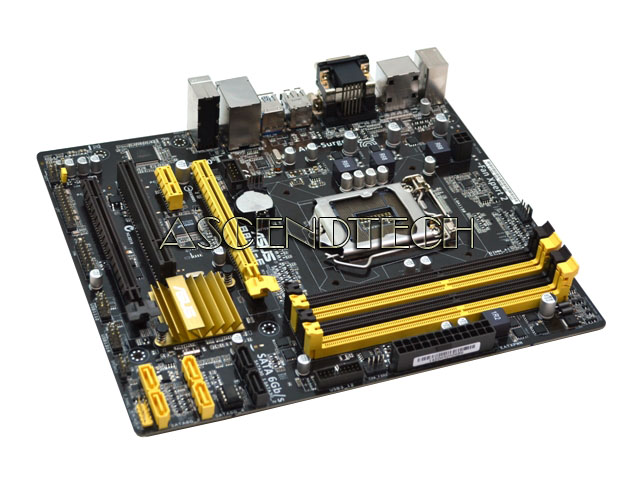

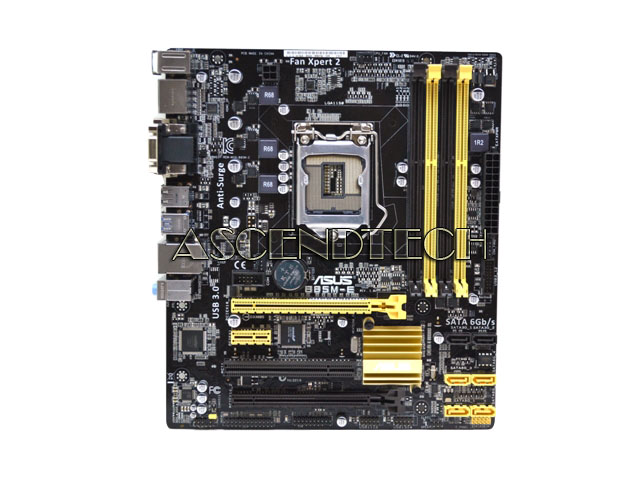

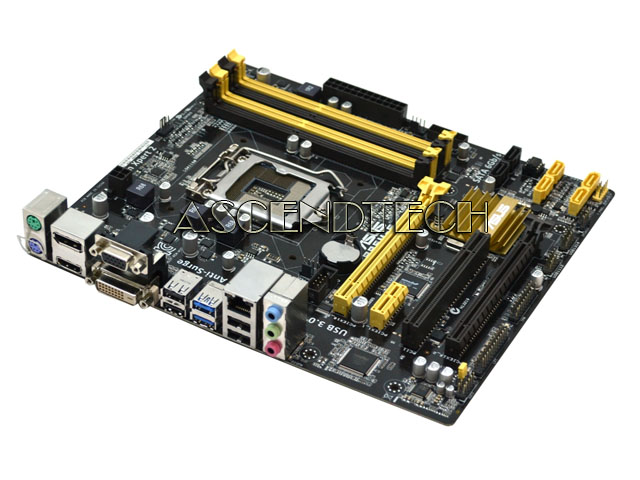

Asus B85m-E/Csm Ddr3 Motherboard No I/O. Model: 90Mb0f60-M0aay0
  Enlarge
Asus B85m-E/Csm Ddr3 Motherboard No I/O. Model: 90Mb0f60-M0aay0
Asus B85m-E/Csm Ddr3 Motherboard No I/O. Model: 90Mb0f60-M0aay0
Asus B85m-E/Csm Ddr3 Motherboard No I/O. Model: 90Mb0f60-M0aay0
Asus B85m-E/Csm Ddr3 Motherboard No I/O. Model: 90Mb0f60-M0aay0
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBASUB85MECSMDD
Brand Asus / Asustek Computer
Model 90MB0F60-M0AAY0
Category Intel Lga1150 Motherboard

Description

Asus B85M-E/CSM Intel B85 Socket LGA1150 DDR3 HDMI Genuine Micro ATX Motherboard. Based on the latest Intel B85 chipset, the ASUS B85M-E/CSM brings the power of an Intel 4th generation Core processor in a uATX form factor. It guarantees uncompromised flexibility and expandability with one PCIe 3.0 x16 slot, one PCIe 2.0 x16 slot, four SATA 6Gbp/s ports, four USB 3.0 ports and 8-channel audio. ASUS's exclusive USB 3.0 Boost enables faster data transmission, while Fan Xpert 2 technology delivers the most customizable fan controls to achieve the best balance of cooling performance and noise level. Additional features include Network iControl, for real-time bandwidth control, and ASUS GPU Boost, for iGPU overclock. The B85M-E/CSM presents a new premium gold color scheme, symbolizing an insistence on delivering the highest standards of innovation, performance, and reliability.

Asus Model Number: B85M-E/CSM
Asus Part Number: 90MB0F60-M0AAY0

 Please Note: This motherboard does not come with Rear I/O Shield also known as Case Back-Plate Cover. This part is not needed and you can still install the board in standard ATX case. No Cables, No Manuals or any other Accessories included!








Features:

Micro-ATX B85 features new UEFI BIOS and detailed cooling controls

New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
Network iControl: Real-time network bandwidth management
Fan Xpert 2: Comprehensive controls for the perfect cool and quiet balance
CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
AI Suite 3: One-stop access to innovative ASUS features





Specifications:

CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® B85
Memory
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
1 x PCI
Storage
Intel® B85 chipset :
2 x SATA 3Gb/s port(s), dark brown
4 x SATA 6Gb/s port(s), yellow
LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USB Ports
Intel® B85 chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Special Features
ASUS EPU :
- EPU
GPU Boost
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x LPT1 header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
BIOS
128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
Micro ATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )






CPU Support:

CPU

Validated since PCB

Celeron G1820(2.7GHz, 2C, L3:2M, GT1, 54W, rev.C0)

ALL

Celeron G1820T(2.4GHz, 2C, L3:2M, GT1, 35W, rev.C0)

ALL

Celeron G1830(2.8GHz, 2C, L3:2M, GT1, 54W, rev.C0)

ALL

Celeron G1840(2.8GHz, 2C, L3:2M, GT1, 53W, rev.C0)

ALL

Celeron G1840T(2.5GHz, 2C, L3:2M, GT1, 35W, rev.C0)

ALL

Celeron G1850(2.9GHz, 2C, L3:2M, GT1, 53W, rev.C0)

ALL

Core i3-4130 (3.4GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)

ALL

Core i3-4130T (2.9GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)

ALL

Core i3-4150 (3.5GHz, 2C, HT, L3:3M, HD Graphic, 54W, rev.C0)

ALL

Core i3-4150T (3.0GHz, 2C, HT, L3:3M, HD Graphic, 35W, rev.C0)

ALL

Core i3-4160 (3.6GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)

ALL

Core i3-4160T (3.1GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)

ALL

Core i3-4170 (3.7GHz, 2C, HT, L3:3M, GT2, 54W, rev.C0)

ALL

Core i3-4170T (3.2GHz, 2C, HT, L3:3M, GT2, 35W, rev.C0)

ALL

Core i3-4330 (3.5GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)

ALL

Core i3-4330T (3.0GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)

ALL

Core i3-4340 (3.6GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)

ALL

Core i3-4350 (3.6GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0)

ALL

Core i3-4350T (3.1GHz, 2C, HT, L3:4M, HD Graphic, 35W, rev.C0)

ALL

Core i3-4360 (3.7GHz, 2C, HT, L3:4M, HD Graphic, 54W, rev.C0)

ALL

Core i3-4360T (3.2GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)

ALL

Core i3-4370 (3.8GHz, 2C, HT, L3:4M, GT2, 54W, rev.C0)

ALL

Core i3-4370T (3.3GHz, 2C, HT, L3:4M, GT2, 35W, rev.C0)

ALL

Core i5-4430 (3.0GHz, 4C, L3:6M, GT2, 84W, rev.C0)

ALL

Core i5-4430S (2.7G, 4C, L3:6M,GT2, 65W, rev.C0)

ALL

Core i5-4440 (3.1GHz, 4C, L3:6M, GT2, 84W, VT-D, rev.C0)

ALL

Core i5-4440S (2.8GHz, 4C, L3:6M, GT2, 65W, VT-D, rev.C0)

ALL

Core i5-4460 (3.2GHz, 4C, L3:6M, HD Graphic, 84W, rev.C0)

ALL

Core i5-4460S (2.9GHz, 4C, L3:6M, HD Graphic, 84W, rev.C0)

ALL

Core i5-4460T (1.9GHz, 4C, L3:6M, HD Graphic, 35W, rev.C0)

ALL

Core i5-4570 (3.2Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)

ALL

Core i5-4570S (2.9G, 4C, L3:6M, GT2, VT-D, 65W, rev.C0)

ALL

Core i5-4570T (2.9Ghz, 2C, L3:4M, GT2, VT-D, 35W, rev.C0)

ALL

Core i5-4570TE (2.7Ghz, 2C, L3:4M, HD Graphic, 35W, rev.C0)

ALL

Core i5-4590 (3.3Ghz, 4C, L3:6M, HD Graphic, 84W, rev.C0)

ALL

Core i5-4590S (3.0Ghz, 4C, L3:6M, HD Graphic, 65W, rev.C0)

ALL

Core i5-4590T (2.0Ghz, 4C, L3:6M, HD Graphic, 35W, rev.C0)

ALL

Core i5-4670 (3.4Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)

ALL

Core i5-4670K (3.4Ghz, 4C, L3:6M, GT2, VT-D, 84W, rev.C0)

ALL

Core i5-4670S (3.1Ghz, 4C, L3:6M, GT2, VT-D, 65W, rev.C0)

ALL

Core i5-4670T (2.3Ghz, 4C, L3:6M, GT2, VT-D, 45W, rev.C0)

ALL

Core i5-4690 (3.5Ghz, 4C, L3:6M, HD Graphic, 84W, rev.C0)

ALL

Core i5-4690K (3.5Ghz, 4C, L3:6M, HD Graphic, 88W, rev.C0)

ALL

Core i5-4690S (3.2Ghz, 4C, L3:6M, HD Graphic, 65W, rev.C0)

ALL

Core i5-4690T (2.5Ghz, 4C, L3:6M, HD Graphic, 45W, rev.C0)

ALL

Core i7-4765T (2.0Ghz, 4C, L3:8M, GT2, VT-D, 35W, rev.C0)

ALL

Core i7-4770 (3.4Ghz, 4C, L3:8M, GT2, VT-D, 84W, rev.C0)

ALL

Core i7-4770K (3.5Ghz, 4C, L3:8M, GT2, 84W, rev.C0)

ALL

Core i7-4770S (3.1Ghz, 4C, L3:8M, GT2, VT-D, 65W, rev.C0)

ALL

Core i7-4770T (2.5Ghz, 4C, L3:8M, GT2, VT-D, 45W, rev.C0)

ALL

Core i7-4771 (3.5Ghz, 4C, HT, L3:8M, GT2, VT-D, 84W, rev.C0)

ALL

Core i7-4785T (2.2Ghz, 4C, HT, L3:8M, HD Graphic, 35W, rev.C0)

ALL

Core i7-4790 (3.6Ghz, 4C, HT, L3:8M, HD Graphic, 84W, rev.C0)

ALL

Core i7-4790K (4.0Ghz, 4C, HT, L3:8M, HD Graphic, 88W, rev.C0)

ALL

Core i7-4790S (3.2Ghz, 4C, HT, L3:8M, HD Graphic, 65W, rev.C0)

ALL

Core i7-4790T (2.7Ghz, 4C, HT, L3:8M, HD Graphic, 45W, rev.C0)

ALL

Pentium G3220 (3.0GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3220T (2.6GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3240 (3.1GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3240T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3250 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3250T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3258 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3260 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3260T (2.9GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3420 (3.2GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3420T (2.7GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3430 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3440 (3.3GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3440T (2.8GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3450 (3.4GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3450T (2.9GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Pentium G3460 (3.5GHz, 2C, L3:3M, GT1, 53W, rev.C0)

ALL

Pentium G3460T (3.0GHz, 2C, L3:3M, GT1, 35W, rev.C0)

ALL

Xeon E3-1220 V3 (3.1GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1220L V3 (1.1GHz, 2C, HT, L3:4M, 13W, rev.C0)

ALL

Xeon E3-1225 V3 (3.2GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1226 V3 (3.3GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1230 V3 (3.3GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1230L V3 (1.8GHz, 4C, HT, L3:8M, 25W, rev.C0)

ALL

Xeon E3-1231 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1240 V3 (3.4GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1240L V3 (2.0GHz, 4C, HT, L3:8M, 25W, rev.C0)

ALL

Xeon E3-1241 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1245 V3 (3.4GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1246 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1265L V3 (2.5GHz, 4C, HT, L3:8M, 45W, rev.C0)

ALL

Xeon E3-1270 V3 (3.5GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1271 V3 (3.6GHz, 4C, HT, L3:8M, 80W, rev.C0)

ALL

Xeon E3-1275 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1275L V3 (2.7GHz, 4C, HT, L3:8M, 45W, rev.C0)

ALL

Xeon E3-1276 V3 (3.5GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1280 V3 (3.6GHz, 4C, HT, L3:8M, 82W, rev.C0)

ALL

Xeon E3-1281 V3 (3.7GHz, 4C, HT, L3:8M, 82W, rev.C0)

ALL

Xeon E3-1285 V3 (3.6GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1285L V3 (3.1GHz, 4C, HT, L3:8M, 65W, rev.C0)

ALL

Xeon E3-1286 V3 (3.7GHz, 4C, HT, L3:8M, 84W, rev.C0)

ALL

Xeon E3-1286L V3 (3.2GHz, 4C, HT, L3:8M, 65W, rev.C0)

ALL
