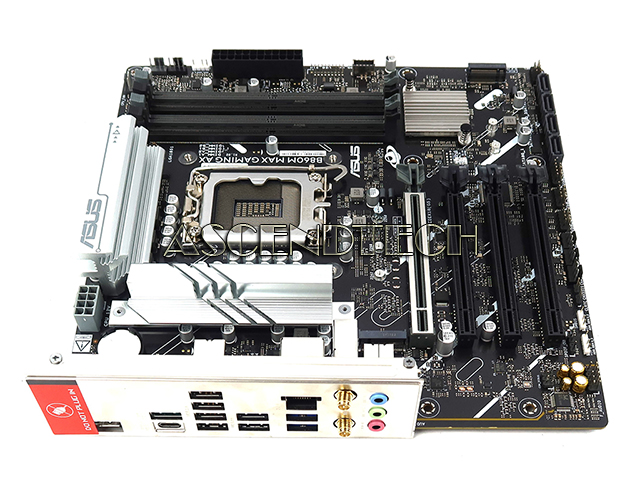

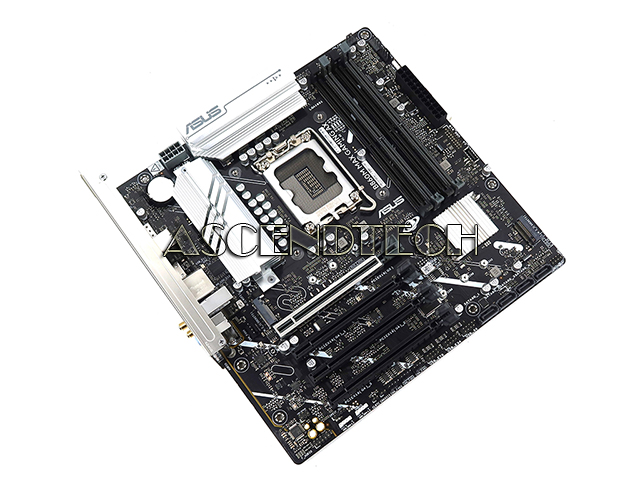

Asus B860M MAX GAMING AX Motherboard

Asus B860m Max Gaming Ax Motherboard. Part Number: Mb1jz0-A01
  Enlarge
Asus B860m Max Gaming Ax Motherboard. Part Number: Mb1jz0-A01
Asus B860m Max Gaming Ax Motherboard. Part Number: Mb1jz0-A01
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB860MMAXGA
Brand Asus / Asustek Computer
Model B860M MAX GAMING AX
Part Number MB1JZ0-A01
Compatible Part Numbers 90PF0560-R00010 90PF0000-P02220
Category Intel Lga1851 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield, fan’s mounting backplate only! No fan’s bracket, cables or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

Asus B860M MAX GAMING AX Intel Chipset B860 Socket LGA1851 DDR5 USB SATA 6.0Gb/s DisplayPort mATX Desktop Motherboard MB1JZ0-A01.

Chipset: Intel B860
Socket: Intel LGA1851
Compatible/Supported CPU: Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later), Windows 11 (version 25H2 and later)
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.4
Wireless Lan Support: Wi-Fi 6 (802.11ax), supports 2.4/5GHz frequency band
Network/Communications: 1x Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectors: 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 1x 4-pin AIO Pump header, 4x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V CPU Power connector, 3x M.2 slots (Key M), 4x SATA 6Gb/s ports, 1x USB 10Gbps connector (supports USB Type-C), 1x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3x USB 2.0 header supports 6 additionalUSB 2.0 ports, 3x Addressable Gen 2 headers, 1x Clear CMOS header, 1x Chassis Intrusion header, 1x Front Panel Audio header (F_AUDIO), 1x S/PDIF Out header 1x SPI TPM header (14-1 pin), 1x 10-1 pin Front System Panel header
Input/Output Ports: 1x USB 20Gbps port (1x USB Type-C with DP Alt mode), 1x USB 10Gbps port (1x Type-A), 4x USB 5Gbps ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort 1x Wi-Fi module, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks
Expansion Slots: x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 mode), 2x PCIe 4.0 x16 slot (support x1 mode)
Form Factor: mATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x DisplayPort
1x USB 20Gbps port (USB Type-C
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports max. 4K@120Hz as specified in DisplayPort 1.4.

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey


BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers


CPU Support:

Socket LGA1851
VendorCPU ModelFrequencyWattageL3 CacheStepping
IntelUltra 7-270K Plus3.7GHz125W36MBB0
IntelUltra 5-250K Plus4.2GHz125W30MBB0
IntelUltra 5-250KF Plus4.2GHz125W30MBB0
IntelUltra 9-285T1.4GHz35W36MBB0
IntelUltra 9-285K3.7GHz125W36MBB0
IntelUltra 9-2852.5GHz65W36MBB0
IntelUltra 7-265T1.5GHz35W30MBB0
IntelUltra 7-265KF3.9GHz125W30MBB0
IntelUltra 7-265K3.9GHz125W30MBB0
IntelUltra 7-265F2.4GHz65W30MBB0
IntelUltra 7-2652.4GHz65W30MBB0
IntelUltra 5-245T2.2GHz35W24MBB0
IntelUltra 5-245KF4.2GHz125W24MBB0
IntelUltra 5-245K4.2GHz125W24MBB0
IntelUltra 5-2453.5GHz65W24MBB0
IntelUltra 5-235T2.2GHz35W24MBB0
IntelUltra 5-2353.4GHz65W24MBB0
IntelUltra 5-230F3.4GHz64W24MBA0
IntelUltra 5-225T2.5GHz35W20MBB0
IntelUltra 5-225F3.3GHz65W20MBB0
IntelUltra 5-225F3.3GHz64W20MBA0
IntelUltra 5-2253.3GHz65W20MBB0
IntelUltra 5-2253.3GHz64W20MBA0
