Asus Combo-210E PCI-E TV Tuner Card

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Asus Combo-210E Pci-E Tv Tuner Card. Model: Combo-210E Ntsc/Atsc Pcie
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code TVCAS6008162R
Brand Asus / Asustek Computer
Model Combo-210E NTSC/ATSC PCIe
Category Tv Tuners

Description

Asus Combo-210E NTSC/ATSC PCI-E TV Tuner Card. The Asus Combo-210E NTSC/ATSC PCI-E TV tuner card features combo viewing mode which permits users to watch analog (NTSC) and digital TV (ATSC/QAM) at the same time.

Related Part Number: 6008162R

Download Latest Drivers Here:

Specifications:

Manufacturer:Asus (ASUSTEK)
Manufacturer Model Number:Combo-210E NTSC/ATSC PCI-E
Operating System Compatibility Requirements:
Microsoft® Windows® XP Media Center Edition
Microsoft Windows Vista Home Premium Edition
Microsoft Windows Vista Ultimate Edition
Hardware:
Bus InterfacePCI Express Revision 1.0a / x1 lane configuration
A/V Decoder
ADC Resolution: 10-bit
VIDEO Standards:NTSC / PAL / SECAM
Video Processing:
  • NTSC/PAL 3D Comb filtering
  • 2D and 3D noise reduction
  • Programmable VBI Data slicer
    • Video Standards:480p / 576p / 720p / 1080i
    Component Video:Y / Pb / Pr
    VBI Data Slicing:
  • WST525 / WST625
  • Gemstar 2x R(1)
  • Gemstar 1x R(2) and VPS
  • VITC525 / VITC625
  • CC525 / CC625 including V-chip
  • WSS525(CGMS) / WSS625
  • CGMS-A (line 41) of 480p (HD0)
  • CGMS (line 41) of 576p (HD0)
  • US NABTS / Euro teletext (FC)
  • Moji
    • Copy Protection:Macrovision®
    Audio:BTSC / EIAJ / A2 / NICAM FM A2 / AM
    Audio Sample: 32 kHz / 44.1 kHz / 48 kHz
    MPEG Encoder
    MPEG Encode:
  • MPEG-2 encoding
  • MPEG-4 encoding
  • Raw YCbCr encoding
  • 3D Comb filter
  • Temporal filter
  • Spatial filter
  • Real-time trans-coding (SD)
  • Automatic bitrate management
    • Audio Processing:MPEG-1 L2 / AAC / AMR / G.726 / AC3
    Encode Channel:Single-channel encoding
    ATSC/QAM Decoder
    ATSC Standard:
  • A/53E
  • Recommended practices A/74
    • ATSC Modulation:8 VSB
    ATSC Video:MPEG-2
    ATSC Audio:ATSC A/52 (Dolby AC-3)
    Clear QAM:ITU-T J83.B ANNEX B
    QAM Modulation:QAM 64 / 256
    QAM Output Stream:MPEG-2
    TV Tuner
    Off-air NTSC:55.25 MHz to 801.25 MHz
    NTSC over Cable:55.25 MHz to 801.25 MHz
    NTSC Input:F-Connector
    Off-air ATSC:48 MHz to 1 GHz
    QAM Over Cable:48 MHz to 1 GHz
    ATSC/QAM Input:F-Connector
    Bracket Input
    S-VIDEO:Mini-DIN 4P
    CVBS:Mini-DIN 4P(Via dongle)
    AUDIO L/R:RCA Jacks (Red and White)
    Front Input
    S-VIDEO:10-Pin Header 2.54 mm pitch
    CVBS:10-Pin Header 2.54 mm pitch
    AUDIO:10-Pin Header 2.54 mm pitch

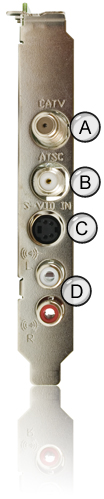

    ACATV
    BATSC
    CS-Video in
    DAudio channel
