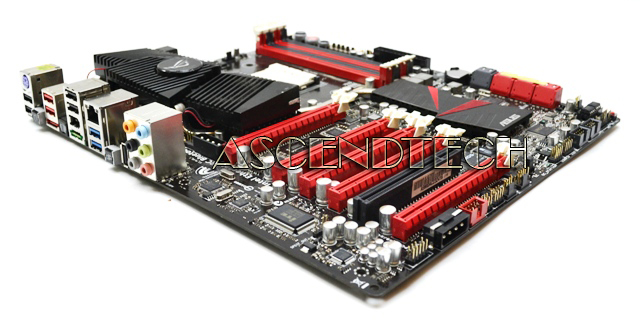

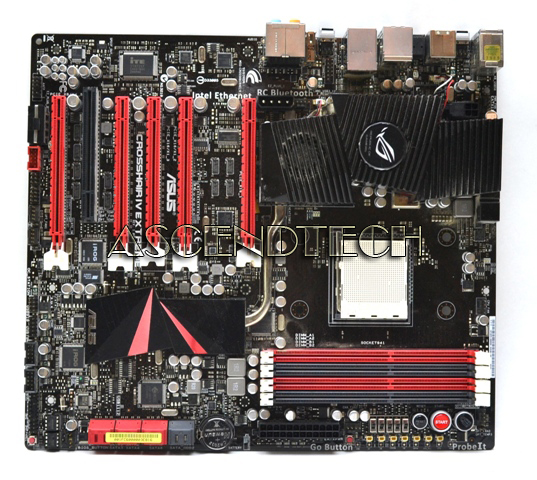

Asus Crosshair IV Extreme M-Board No I/O

Asus Crosshair IV Extreme AM3 DDR3 Motherboard. This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher anti-aliasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD 140W CPU Support
AMD Cool 'n' Quiet™ Technology
Supports 45nm CPU

Chipset
AMD 890FX/SB850

Front Side Bus
Up to 5200 MT/s ; HyperTransport™ 3.0

Memory
4 x DIMM, Max. 16 GB, DDR3 2133(O.C.)/2000(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
5 x PCIe 2.0 x16 (dual @ x16, triple @x16, quad@x16 x16 x8 x8)
1 x PCI 2.2

Multi-GPU Support
Support Lucid HYDRALOGIX / ATI CrossFire™X Technology

Storage
SB850 Chipset
6 x SATA 6.0 Gb/s ports Support RAID 0,1,5,10
2 x JMicron® 363 controllers:
2 x SATA 3Gb/s ports (Gray)
1 x Power External SATA 3Gb/s ports at rear (SATA On-the-Go)
1 x External SATA 3Gb/s ports at rear (SATA On-the-Go)

LAN
Intel® Gigabit LAN

Audio
8-Channel High Definition Audio CODEC
Blu-ray audio layer Content Protection
Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
Supports 1 Optical S/PDIF out port at back I/O

USB Ports
NEC USB3.0 Controller:
2 x USB 3.0/2.0 ports at rear
AMD SB850 chipset:
13 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at rear, 1 port at rear is also for ROG connect)

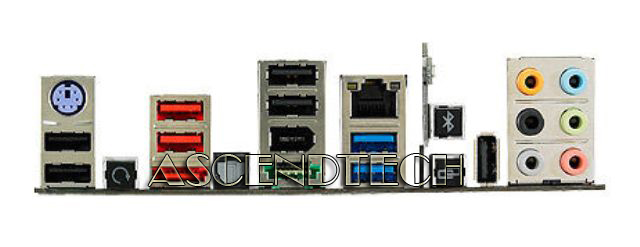

Back Panel I/O Ports
2 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
8 -Channel Audio I/O
1 x Clr CMOS switch
1 x PS/2 Keyboard port(purple)
2 x USB 3.0/2.0 ports
7 x USB 2.0/1.1 ports (1 port is also for ROG Connect)
1 x ROG Connect On/Off switch
1 x RC Bluetooth switch

Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x IEEE 1394a connector
1 x S/PDIF Out connector
1 x En/Dis-able Clr CMOS connector
Front panel audio connector
System Panel connector
8 x SATA connectors: 6 x SATA 6Gb/s connectors (Red) & 2 x SATA 3Gb/s connectors (Gray)
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
7 x ProbeIt measurement points
3 x Thermal sensor connectors
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
2 x EZ Plug connectors (4-pin Molex Power connectors)
1 x OC Station header
1 x RC Bluetooth header
1 x Core unlocker switch
1 x Power on switch
1 x Reset switch
1 x Go Button
1 x BIOS switch button
1 x Fan connector for thermal module
1 x ROG light connector

BIOS
16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS

Form Factor
Extended ATX Form Factor
12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
