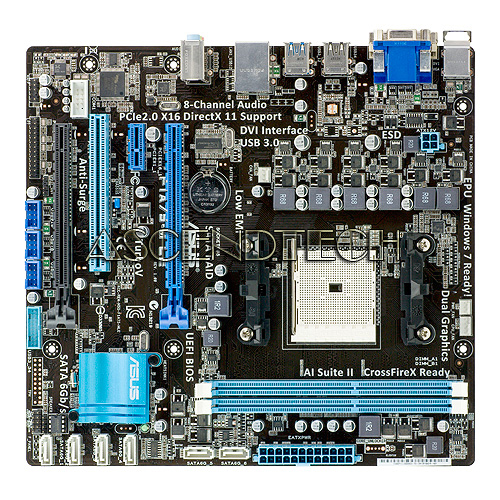

ASUS F1A75-M LE FM1 MOTHERBOARD NO I/O

The ASUS F1A75-M LE AMD A Series Motherboard features the AMD A75 FCH chipset and supports the latest FM1 socket AMD A-& E2- series Accelerated Processor up to 4 cores with integrated AMD Radeon HD 6000 Series Graphics to support Microsoft DirectX 11. Multi-VGA output support, DirectX 11 and AMD Dual Graphics Technology provide superior graphics performance. Implementation of EPU (Energy Processing Unit) offers energy saving process while TurboV offers processor scaling. ASUS EPU conserves energy by intelligently moderating power and load requirements in real-time while TurboV provides intelligent system scaling for incredible increases in platform performance while retaining stability.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.



Specifications:

AMD A-& E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics:

This motherboard supports AMD A-& E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.

AMD A75 FCH (Hudson D3):

AMD A75 FCH (Hudson D3) is designed to support up to 5GT/s interface speed and PCI Express 2.0 x 16(at x4 speed)graphics. It supports 6 x SATA6Gb/s ports and 4 x USB 3.0 Ports.

CrossFireX Support:

F1A75-M LE brings you the multi-GPU choice of CrossFireX. Expect a brand-new gaming style you’ve never experienced before!

SATA 6Gb/s Support:

The AMD A75 FCH natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.

Complete USB 3.0 Integration:

ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panels - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The F1A75-M LE affords greater convenience with high speed connectivity.

EPU:

Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!

ASUS TurboV:

Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.

UEFI BIOS (EZ Mode):

Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.

Auto Tuning:

Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning!





CPU:
AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 2.0 Technology

Chipset:
AMD A75 FCH (Hudson D3)

Memory:
2 x DIMM, Max. 32GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic:
Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
AMD Dual Graphics technology support
Supports DirectX 11

Multi-GPU Support:
Supports AMD CrossFireX™ Technology

Expansion Slots:
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI

Storage:
AMD A75 FCH (Hudson D3) chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB Ports:
AMD A75 FCH (Hudson D3) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
AMD A75 FCH (Hudson D3) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

Overclocking Features:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
TurboV
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

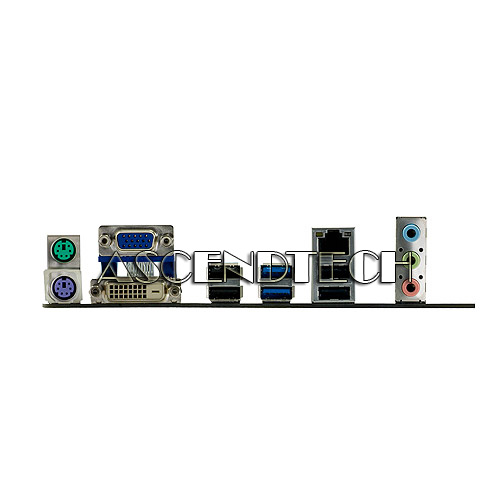

Back I/O Ports:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)

BIOS:
32 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a

Form Factor:
uATX Form Factor
9.6 inch x 9 inch ( 24.4 cm x 22.9 cm )

Product Type:
OEM


CPU Support List:

AMD A4-3300 (AD3300OJZ22GX, rev.B0, 2.5GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3300 (AD3300OJZ22HX, rev.B0, LN2, 2.5GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3400 (AD3400OJZ22GX, rev.B0, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3400 (AD3400OJZ22HX, rev.B0, LN2, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3420 (AD3420OJZ22HX, rev.B0, LN2, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A6-3500 (AD3500OJZ33GX, rev.B0, 2.1GHz, TC, L2:3M, HD6530D, 65W)

AMD A6-3600 (AD3600OJZ43GX, rev.B0, 2.1GHz, QC, L2:4M, HD6530D, 65W)

AMD A6-3620 (AD3620OJZ43GX, rev.B0, 2.2GHz, QC, L2:4M, HD6530D, 65W)

AMD A6-3650 (AD3650WNZ43GX, rev.B0, 2.6GHz, QC, L2:4M, HD6530D, 100W)

AMD A6-3670K (AD3670WNZ43GX, rev.B0, 2.7GHz, QC, L2:4M, HD6530D, 100W, Unlocked)

AMD A8-3800 (AD3800OJZ43GX, rev.B0, 2.4GHz, QC, L2:4M, HD6550D, 65W)

AMD A8-3820 (AD3820OJZ43GX, rev.B0, 2.5GHz, QC, L2:4M, HD6550D, 65W)

AMD A8-3850 (AD3850WNZ43GX, rev.B0, 2.9GHz, QC, L2:4M, HD6550D, 100W)

AMD A8-3870K (AD3870WNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, HD6550D, 100W)

AMD Athlon IIX2 221 (AD221XOJZ22GX, rev.B0, 2.8GHz, DC, L2:1M, 65W)

AMD Athlon IIX4 631 (AD631XOJZ43GX, rev.B0, 2.6GHz, QC, L2:4M, 65W)

AMD Athlon IIX4 631 (AD631XWNZ43GX, rev.B0, 2.6GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 638X (AD638XOJZ43GX, rev.B0, 2.7GHz, QC, L2:4M, 65W)

AMD Athlon IIX4 641 (AD641XWNZ43GX, rev.B0, 2.8GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 651 (AD651XWNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 651K (AD651KWNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, 100W)

AMD E2-3200 (ED3200OJZ22GX, rev.B0, 2.4GHz, DC, L2:1M, HD6370D, 65W)

AMD E2-3200 (ED3200OJZ22HX, rev.B0, LN2, 2.4GHz, DC, L2:1M, HD6370D, 65W)

AMD Sempron X2 198 (SD198XOJZ22GX, rev.B0, 2.5GHz, DC, L2:1M, 65W)
