ASUS F1A75-V PRO DDR3 SATA3 USB3.0 HDMI

ASUS F1A75-V PRO FM1 AMD A75 Hudson D3 HDMI SATA3 USB 3.0 ATX AMD Motherboard For AMD Socket FM1 A- Series / E2- Series Accelerated Processors upto 4 cores Support AMD Turbo Core 2.0 Technology.



Specification:

CPU:
AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 2 Technology

Chipset:
AMD A75 FCH (Hudson D3)

Memory:
4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic:
Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
AMD® Dual Graphics technology support
Supports DirectX 11

Multi-GPU Support:
Supports AMD CrossFireX™ Technology

Expansion Slots:
2 x PCIe 2.0 x16 ( x16, x4)
2 x PCIe 2.0 x1
3 x PCI

Storage:
AMD A75 FCH (Hudson D3) chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD
ASMedia® PCIe SATA controller :
1 x SATA 6Gb/s port(s), navy blue
1 x eSATA 6Gb/s port(s), red

LAN:
Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel

USB Ports:
AMD A75 FCH (Hudson D3) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A75 FCH (Hudson D3) chipset :
10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)

Overclocking Features:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors

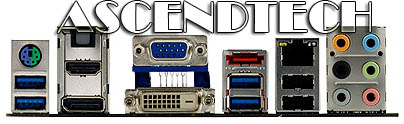

Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)

BIOS:
32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a


Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Product Type:
OEM





CPU Support List:

AMD A4-3300 (AD3300OJZ22GX, rev.B0, 2.5GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3300 (AD3300OJZ22HX, rev.B0, LN2, 2.5GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3400 (AD3400OJZ22GX, rev.B0, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3400 (AD3400OJZ22HX, rev.B0, LN2, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A4-3420 (AD3420OJZ22HX, rev.B0, LN2, 2.7GHz, DC, L2:1M, HD6410D, 65W)

AMD A6-3500 (AD3500OJZ33GX, rev.B0, 2.1GHz, TC, L2:3M, HD6530D, 65W)

AMD A6-3600 (AD3600OJZ43GX, rev.B0, 2.1GHz, QC, L2:4M, HD6530D, 65W)

AMD A6-3620 (AD3620OJZ43GX, rev.B0, 2.2GHz, QC, L2:4M, HD6530D, 65W)

AMD A6-3650 (AD3650WNZ43GX, rev.B0, 2.6GHz, QC, L2:4M, HD6530D, 100W)

AMD A6-3670K (AD3670WNZ43GX, rev.B0, 2.7GHz, QC, L2:4M, HD6530D, 100W, Unlocked)

AMD A8-3800 (AD3800OJZ43GX, rev.B0, 2.4GHz, QC, L2:4M, HD6550D, 65W)

AMD A8-3820 (AD3820OJZ43GX, rev.B0, 2.5GHz, QC, L2:4M, HD6550D, 65W)

AMD A8-3850 (AD3850WNZ43GX, rev.B0, 2.9GHz, QC, L2:4M, HD6550D, 100W)

AMD A8-3870K (AD3870WNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, HD6550D, 100W)

AMD Athlon IIX2 221 (AD221XOJZ22GX, rev.B0, 2.8GHz, DC, L2:1M, 65W)

AMD Athlon IIX4 631 (AD631XOJZ43GX, rev.B0, 2.6GHz, QC, L2:4M, 65W)

AMD Athlon IIX4 631 (AD631XWNZ43GX, rev.B0, 2.6GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 638X (AD638XOJZ43GX, rev.B0, 2.7GHz, QC, L2:4M, 65W)

AMD Athlon IIX4 641 (AD641XWNZ43GX, rev.B0, 2.8GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 651 (AD651XWNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, 100W)

AMD Athlon IIX4 651K (AD651KWNZ43GX, rev.B0, 3.0GHz, QC, L2:4M, 100W)

AMD E2-3200 (ED3200OJZ22GX, rev.B0, 2.4GHz, DC, L2:1M, HD6370D, 65W)

AMD E2-3200 (ED3200OJZ22HX, rev.B0, LN2, 2.4GHz, DC, L2:1M, HD6370D, 65W)

AMD Sempron X2 198 (SD198XOJZ22GX, rev.B0, 2.5GHz, DC, L2:1M, 65W)
