ASUS F2A85-M/CSM FM2 AMD A85X mATX MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

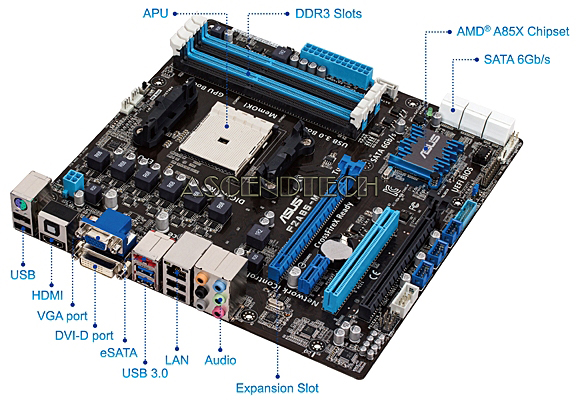

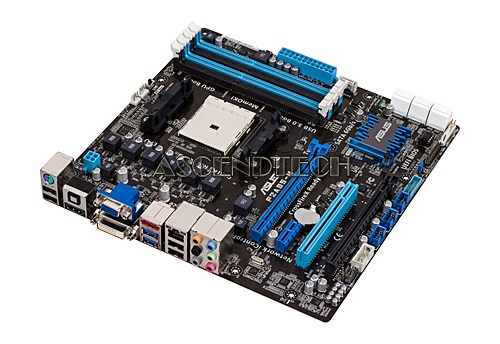

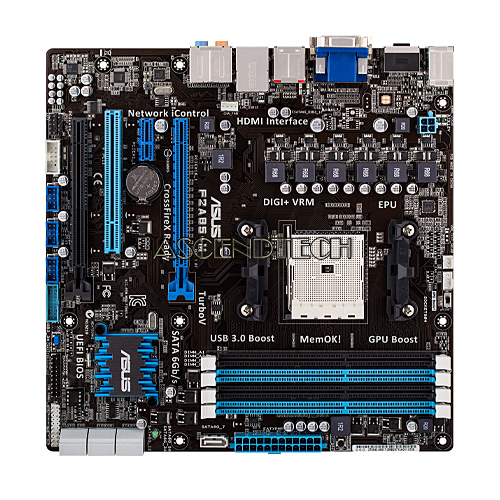

Asus F2a85-M/Csm Fm2 Amd A85x Matx Mb
Asus F2a85-M/Csm Fm2 Amd A85x Matx Mb
Asus F2a85-M/Csm Fm2 Amd A85x Matx Mb
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBFM2AF2A85MCSM
ModelF2A85-M/CSM DDR3 SATA3

Description

ASUS F2A85-M/CSM FM2 AMD A85X (Hudson D4) HDMI SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard. Create a solid and dependable computing foundation with the Asus F2A85-M/CSM Socket FM2 Motherboard. This amazing micro ATX motherboard comes with an FM2 socket that's fully compatible with AMD Socket FM2 Athlon Series processors. It has 4 DIMM slots that can support up to 64GB of DDR3 memory, delivering up to 2400 MHz (O.C.) clock speeds for continuous and ultra-responsive operations. The Asus F2A85-M/CSM Socket FM2 Motherboard comes with seven SATA III headers so you can integrate your numerous hard drives, solid state drives, and optical drives. It also includes six USB ports to connect your other PC peripherals and external media devices. Plus, it's Quad-GPU CrossFireX ready so you can install up to four GPUs simultaneously and experience high-quality graphics for your games, movies, and more. Pick up the Asus F2A85-M/CSM Socket FM2 Motherboard today!

Features:

AMD® A-series Accelerated Processor with AMD Radeon™ HD 7000 Series Graphics
This motherboard supports AMD® A-series Accelerated Processor with AMD Radeon™ HD 7000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.

AMD A85X FCH(Hudson D4)
AMD A85X FCH (Hudson D4) is designed to support up to 5GT/s interface speed and PCI Express™ 2.0 x 16 graphics. It natively supports 8 x SATA6Gb/s ports and 4 x USB 3.0 Ports.

Quad-GPU CrossFireX Support!
Flexible Multi-GPU solutions, Your Weapon of Choice!
F2A85-M brings you the multi-GPU choice of CrossFireX. Expect a brand-new gaming style you’ve never experienced before!

USB 3.0 Boost
Accelerated USB 3.0 Data Transfer Rates with ASUS USB 3.0 Boost Technology
With USB 3.0 Boost technology, USB transfer speeds are significantly increased up to 132%, enhancing an already impressive USB 3.0 transfer rate. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any further user configuration.

Native SATA 6Gb/s Support
The AMD® A85X FCH natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.



Specification:

CPUAMD Socket FM2 Athlon /A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
ChipsetAMD A85X FCH (Hudson D4)
Memory4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
GraphicsIntegrated AMD Radeon HD 7000 Series Graphics in A-series APU
Multi-VGA output support: HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support
Supports DirectX 11
Multi-GPU SupportSupports AMD CrossFireX Technology
Expansion Slots2 x PCIe 2.0 x16 (x16/x4)
1 x PCIe 2.0 x1
1 x PCI
StorageAMD A85X FCH(Hudson D4) chipset:
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
USB PortsAMD A85X FCH(Hudson D4) chipset:
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset:
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking FeaturesOverclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special FeaturesASUS EPU:
- EPU
ASUS Digital Power Design:
- Industry leading Digital 4 +2 Phase Power Design
- CPU Power Utility
TurboV
GPU Boost
ASUS Exclusive Features:
- Remote GO!
- MemOK!
- AI Suite II
- Ai Charger
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

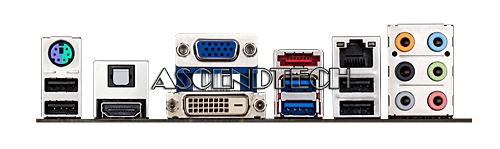

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
Form FactoruATX Form Factor - 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
