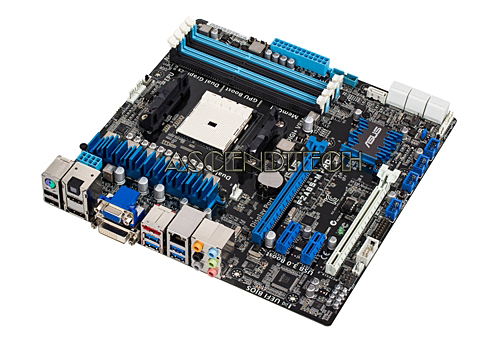

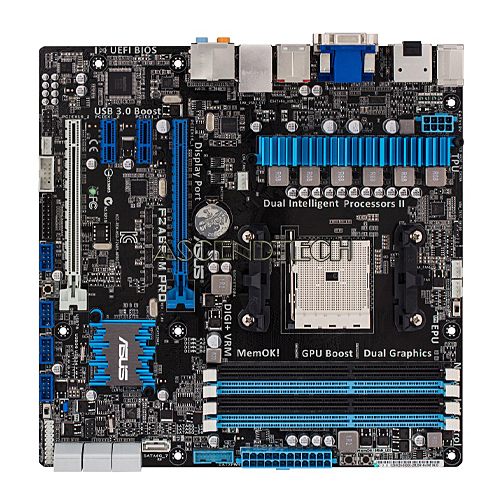

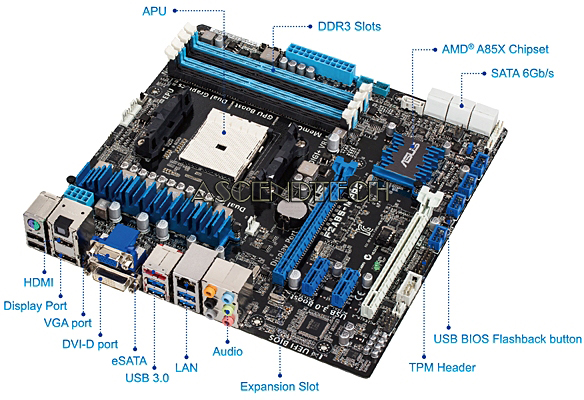

ASUS F2A85-M PRO FM2 AMD A85X mATX MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Asus F2a85-M Pro Fm2 Amd A85x Matx Mb. Model: F2a85-M Pro Ddr3 Sata3
  Enlarge
Asus F2a85-M Pro Fm2 Amd A85x Matx Mb. Model: F2a85-M Pro Ddr3 Sata3
Asus F2a85-M Pro Fm2 Amd A85x Matx Mb. Model: F2a85-M Pro Ddr3 Sata3
Asus F2a85-M Pro Fm2 Amd A85x Matx Mb. Model: F2a85-M Pro Ddr3 Sata3
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBFM2AF2A85MPRO
Brand Asus / Asustek Computer
Model F2A85-M PRO DDR3 SATA3
Category Amd Socket Fm2 Motherboards

Description

ASUS F2A85-M PRO FM2 AMD A85X (Hudson D4) HDMI SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard. Create a powerful and efficient computer system with the Asus F2A85-M Pro Socket FM2 Motherboard. This excellent MicroATX motherboard is built with an AMD FM2 socket that supports any AMD Socket FM2 Athlon processor. It offers Gigabit LAN so you can experience ultra-fast Internet connectivity. Plus, it comes with 8 USB channels so you can integrate lots of your essential PC peripherals and other external devices. This Asus F2A85-M Pro Socket FM2 Motherboard is also CrossFireX-ready so installing multiple GPUs is possible. Build your own high-performance computer system with the Asus F2A85-M Pro Socket FM2 Motherboard now!



Features:

• Dual Intelligent Processors 2 with DIGI+ VRM
• Direct Key - A Dedicated Button to Access the BIOS Directly
• USB BIOS Flashback - Easy, worry-free USB BIOS Flashback with Hardware-based Design
• Fan Xpert 2 – Optimizes the Speed of All Fans for the Ultimate Cool and Quiet!
• USB Charger+ - 3X Faster Charging for All USB Portable Devices
• USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
• Network iControl - Real-time Network Bandwidth Controls
• Windows 8 Ready – Assured Compatibility



Specification:

CPUAMD Socket FM2 Athlon /A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
ChipsetAMD A85X FCH (Hudson D4)
Memory4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
GraphicIntegrated AMD Radeon™ HD 7000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support
Supports DirectX 11
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX Technology
Supports LucidLogix Virtu MVP Technology
Expansion Slots2 x PCIe 2.0 x16 (x16 or dual x8)
2 x PCIe 2.0 x1
StorageAMD A85X FCH(Hudson D4) chipset:
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB PortsASMedia® USB 3.0 controller:
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A85X FCH(Hudson D4) chipset:
4 x USB 3.0 port(s) (2 at back panel, 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset:
10 x USB 2.0 port(s) (2 at back panel, 8 at mid-board)
Overclocking FeaturesOverclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special FeaturesASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 4 +2 Phase Power Design
ASUS Exclusive Features:
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
100% All High-quality Conductive Polymer Capacitors

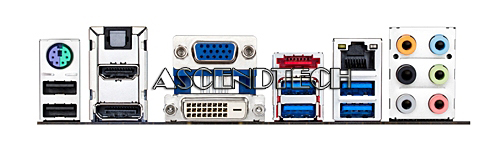

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 x -pin)
3 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x USB BIOS Flashback button(s)
Form FactoruATX Form Factor - 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
