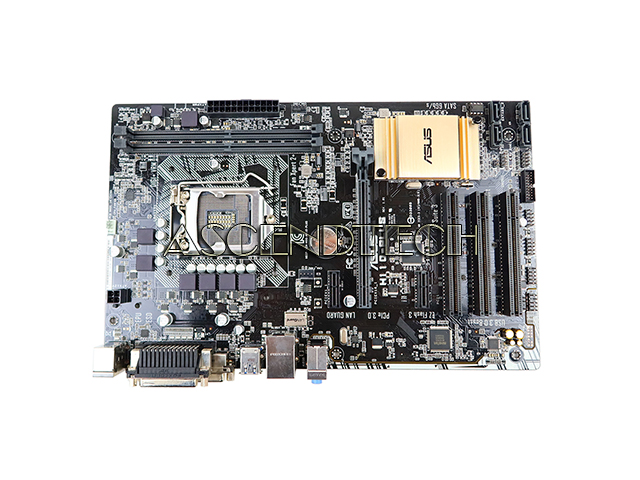

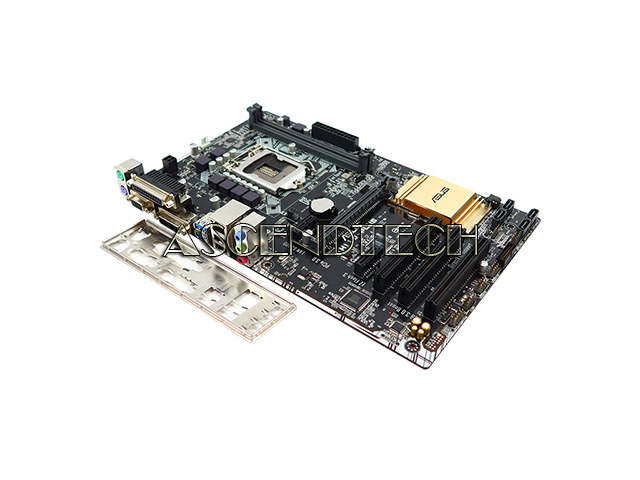

H110-PLUS MB0PQ0 | Asus H110-Plus Desktop Motherboard

Asus H110-PLUS Intel Chipset H110 Socket LGA1151 DDR4 DVI-D D-Sub USB SATA 6Gb/s ATX Desktop Motherboard MB0PQ0.

Chipset: Intel H110

Socket: Intel LGA1151

Compatible/Supported CPU: 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

Max Supported Memory: 32GB

Number of Memory Slots: 2

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

Wireless Lan Support: Realtek RTL8111H, 1 x Gigabit LAN Controller(s)

Audio: Realtek ALC887/897 8-Channel High Definition Audio Codec

Connectors: 1x CPU Fan connector(s) (1 x 4 -pin); 2x Chassis Fan connector(s) (1 x 4 -pin); 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin); 2x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s); 1x COM port(s) connector(s); 4x SATA 6Gb/s connector(s); 1x S/PDIF out header(s); 1x 24-pin EATX Power connector(s); 1x 4-pin ATX 12V Power connector(s); 1x Front panel audio connector(s) (AAFP); 1x System panel(s); 1x Clear CMOS jumper(s).

Input/Output Ports: 1x PS/2 keyboard (purple); 1x PS/2 mouse (green); 1x DVI-D; 1x D-Sub; 1x LAN (RJ45) port(s); 2x USB 3.2 Gen 1 (blue) Type-A; 2x USB 2.0; 1x Parallel port(s); 3x Audio jack(s).

Expansion Slots: 1x PCIe 3.0/2.0 x16 (x16 mode); 2x PCIe 3.0/2.0 x1; 3x PCI.

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10, Windows 8.1, Windows 7.

Features: 5X Protection II – Advanced hardware safeguards for all-round protection; DDR4 memory compatibility; Epic gaming audio with LED-illuminated shielding; Media-acclaimed UEFI BIOS with EZ Flash 3; Easy PC DIY with safe motherboard-mounting design; Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance.

Additional Specifications:

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : DVI-D/RGB ports
- Supports DVI-D with max. resolution 1920 x 1200 60Hz
- Supports RGB with max. resolution 1920 x 1200 60Hz
Maximum shared memory of 1024MB (for iGPU exclusively)
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Special Features
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 5 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
Media Streamer
