Asus M2NBP-VM CSM AMD AM2 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

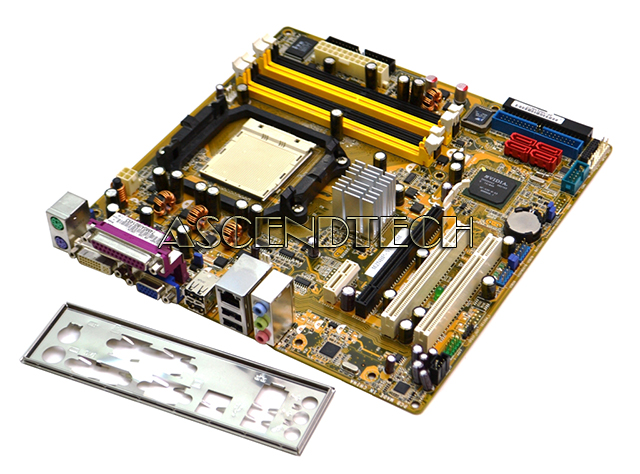

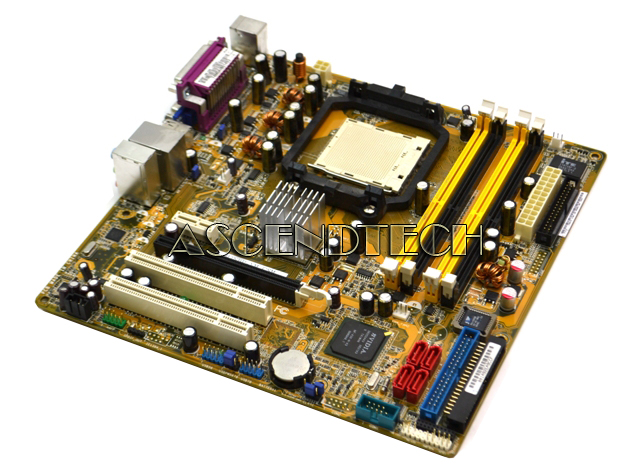

Asus M2nbp-Vm Csm Amd Am2 Motherboard. Model: M2nbp-Vm Csm Rev. 1.01G
  Enlarge
Asus M2nbp-Vm Csm Amd Am2 Motherboard. Model: M2nbp-Vm Csm Rev. 1.01G
Asus M2nbp-Vm Csm Amd Am2 Motherboard. Model: M2nbp-Vm Csm Rev. 1.01G
Asus M2nbp-Vm Csm Amd Am2 Motherboard. Model: M2nbp-Vm Csm Rev. 1.01G
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBM2NBPVMCSMASU
Brand Asus / Asustek Computer
Model M2NBP-VM CSM Rev. 1.01G
Category Amd Socket Am2+ Am3 Motherboards
Condition Like New Grade A
Condition Description Please Note, Motherboard with I/O Shield only! No cables, manuals or any other accessories!

Description

Asus M2NBP-VM CSM AMD Socket AM2 DDR2 uATX Desktop Motherboard.

Chipset: NVIDIA Quadro NVS 210S and NVIDIA nForce 430B
Socket: AM2
Compatible/Supported CPU: AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron/ Processors
Max Supported Memory: Up To 8GB
Number of Memory Slots: 4
Memory Type: DDR2
Storage Capacity: 2x UltraDMA 133/100/66/33 4x SATA 3Gb/s
RAID Support: RAID 0,1
Video Chipset/GPU Model: NVIDIA Quadro NVS 210S
Wireless Lan Support: NVIDIA nForce 430B
Audio: ADI AD1986A
Input/Output Ports: 1x DVI-D out, 1x D-Sub out, 1x Parallel, 1x PS/2 Keyboard, 1x PS/2 Mouse, 1x LAN(RJ45) port, 4x USB 2.0/1.1, 5-Channel Audio I/O, 2x USB connectors supports additional 4 USB 2.0 ports, 2x IDE connector, 1x TPM connector, 4 SATA connectors, 1x CPU Fan connector, 2x Chassis Fan connector, 1x S/PDIF Out connector, 1x 4-pin ATX 12V Power connector, 24 -pin ATX Power connector, Front panel audio connector, COM connector, Chassis Intrusion connector, CD/AUX audio in, System Panel Connector
Expansion Slots: 1x PCIe x16, 1x PCIe x1, 2x PCI
Form Factor: Micro ATX

Asus M2NBP-VM CSM AMD Socket AM2 DDR2 uATX Desktop Motherboard.

Asus Model Number: M2NBP-VM CSM Rev. 1.01G







Specifications:

CPU:
AMD Socket AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron/ Processors
AMD Cool 'n' Quiet Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live! Ready

Chipset:
NVIDIA Quadro NVS 210S + NVIDIA nForce 430B

System Bus:
2000/1600 MT/s

Memory:
4 x DIMM, Max. 8 GB, DDR2 800/667/533/ ECC, Non-ECC, Un-buffered Memory
Dual Channel memory architecture

VGA:
Integrated GeForce 6 GPU
Dual VGA output support: DVI-D/RGB

Expansion Slots:
1 x PCIe x16
1 x PCIe x1
2 x PCI

Storage:
Southbridge
2x UltraDMA 133/100/66/33
4x SATA 3 Gb/s ports Support RAID 0,1

LAN:
NVIDIA nForce 430B built-in Gigabit/ MAC with external Marvell PHY

Audio:
ADI AD1986A High Difinition Audio 5 -Channel CODEC
S/PDIF out on back I/O port

USB:
8 USB 2.0 ports /1.1 ports

Manageability:
WfM 2.0,DMI 2.0,WOL by PME, Chasis Intrusion, PXE

Overclocking Features:
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 400MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS MyLogo
ASUS EZ Flash 3
ASUS CrashFree BIOS 2
ASUS Q-Fan 2

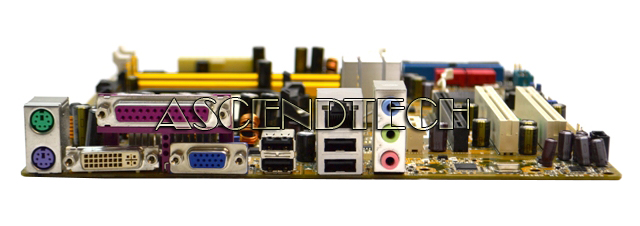

Back Panel I/O Ports:
1 x DVI-D out
1 x D-Sub out
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
5 -Channel Audio I/O

Internal I/O Connectors:
2 x USB connectors supports additional 4 USB 2.0 ports
2 x IDE connector
1 x TPM connector
4 x SATA connectors
1 x CPU Fan connector
2 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector

Support Disc:
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS LiveUpdate Utility

Accessories:
I/O Shield

Form Factor:
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5cm x24.5cm )
