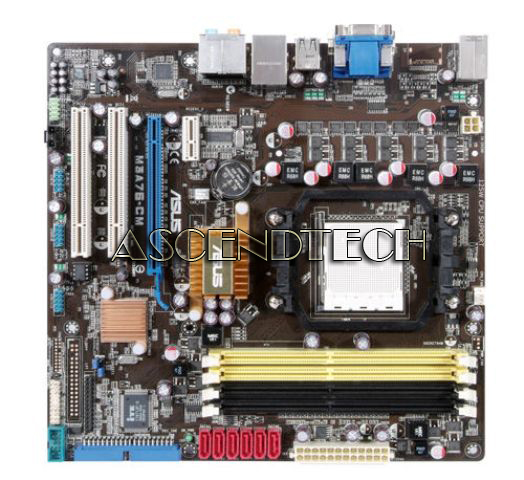

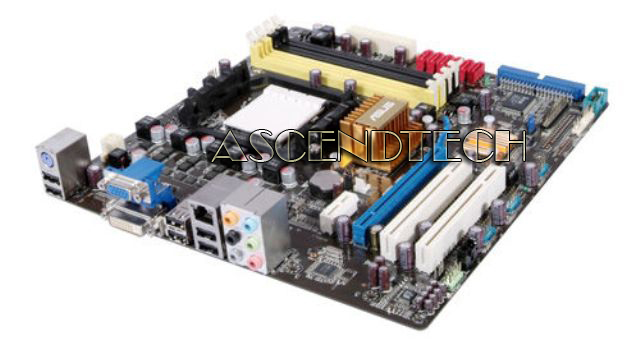

ASUS M3A76-CM AM2 Motherboard No I/O

Asus M3A76-CM AM2 760G DDR2 Motherboard. This motherboard supports AMD® AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. The AMD 760G Northbridge is the latest AMD chipset designed for 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and external graphics in PCI Express™ 2.0 standard.It features the integrated ATI HD3000 graphics and fully DirectX 10.0 comliant.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD Socket AM2+ / AM2 ;Phenom™ FX /Phenom™ / Athlon™ /Sempron™ Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing

Chipset
AMD 760G/SB710

System Bus
Up to 5200 MT/s HyperTransport™ 3.0 interface for AM2+ CPU

Memory
4 x 240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
Support PCIe 2.0 / 1.0 Architecture

VGA
Integrated ATI Radeon 3000
Max. shared memory: 256 MB
Supports DVI-D with HDCP compliant with max. resolution 1920x1200 (@ 60Hz dual-link)
Supports RGB with max. resolution 2048 x 1536 (@85Hz)
Support single-link DVI interface

Storage
1 x UltraDMA 133/100/66/33
6 x SATA 3 Gb/s ports Support RAID 0,1,0+1,JBOD configuration

LAN
RTL8111C Gigabit LAN

Audio
High Definition Audio 8-Channel CODEC
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface

USB Ports
12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

Back I/O Ports
1 x DVI
1 x VGA
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard/Mouse port

Internal I/O Ports
3 x USB connectors support additional 6 USB 2.0 ports
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x High Definition Front panel audio connector
1 x Printer Port
24-pin EATX power connector
4-pin ATX 12V Power connector
1 x COM connector
1 x Chassis intrusion connector
1 x CD audio-in connector
1 x System Panel connector

BIOS
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
