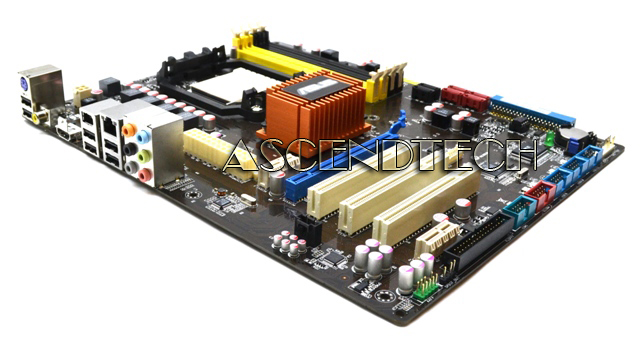

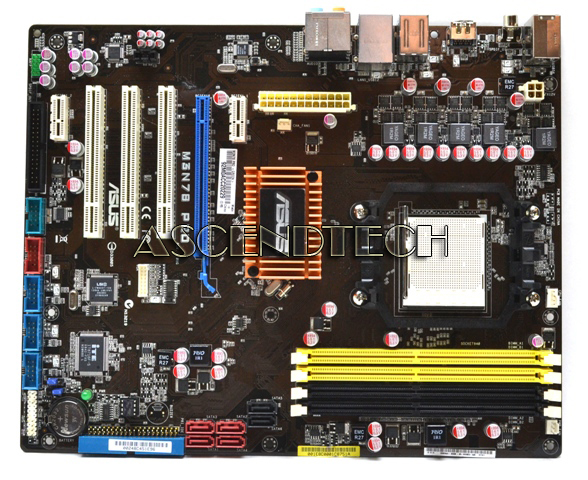

Asus M3N78 PRO AM2 Motherboard No I/O

Asus M3N78 PRO AM2 DDR2 Motherboard. This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. NVIDIA® GeForce 8300 offers the latest support of Hybrid SLI Technology, DirectX® 10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD’s latest AM2+ and multi-core CPUs to provide excellent system performance.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD Socket AM2+ / AM2 Phenom™ FX/Phenom™/Athlon™ /Sempron™ Processors
AMD Cool 'n' Quiet™ Technology
AMD Live!™ Ready
Support CPU up to 140W
Support 45nm Phenom™ II CPU

Chipset
NVIDIA GeForce 8300

Front Side Bus
Up to 5200 MT/s HyperTransport™ 3.0 interface for AM2+ CPU
2000/1600 MT/s for AM2 CPU

Memory
4 x DIMM, Max. 8 GB, DDR2 1066/800/667 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16 (Support PCIe 2.0 / 1.0 Architecture )
2 x PCIe x1
3 x PCI 2.2

VGA
Integrated NVIDIA GeForce® 8 Series GPU
Hybrid SLI™ Support (supports Windows Vista only)
Supports HDMI™ Technology with max. resolution up to 1920 x 1200
Supports DVI with max. resolution up to 1920 × 1200 @ 60 Hz
Supports D-Sub with max. resolution up to 1920 × 1440 @ 75 Hz
HDMI/DVI/RGB Support
Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Support PCIe 2.0 / 1.0 Architecture
Maximum shared memory of 512MB

Storage
NVIDIA® GeForce 8300
1 xUltraDMA 133/100/66/33
6 xSATA 3 Gb/s ports (Use SATA1-4 for IDE mode.)
NVIDIA® MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD

LAN
NVIDIA Gigabit MAC
Realtek® 8211CL Gigabit PHY featuring AI NET2
LSI® FW322 controller supports 2 x 1394a ports

Audio
Realtek® ALC1200 8 -Channel High Definition Audio CODEC
Coaxial S/PDIF out ports at back I/O
Support Jack Detection and Multi-streaming

USB Ports
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

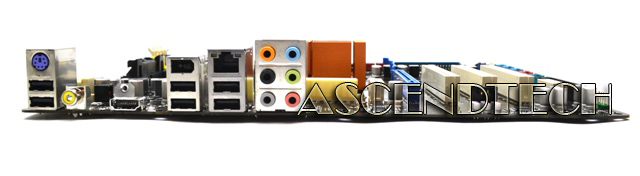

Back Panel I/O Ports
1 x PS/2 Keyboard
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x HDMI

Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
1 x VGA connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Front panel audio connector
1 x S/PDIF Out Header
1 x IEEE1394a connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel

BIOS
8 Mb Flash ROM
DMI 2.0
PnP
WfM 2.0
SM BIOS 2.5
Award BIOS
ACPI 2.0
ASUS EZ Flash 2

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
