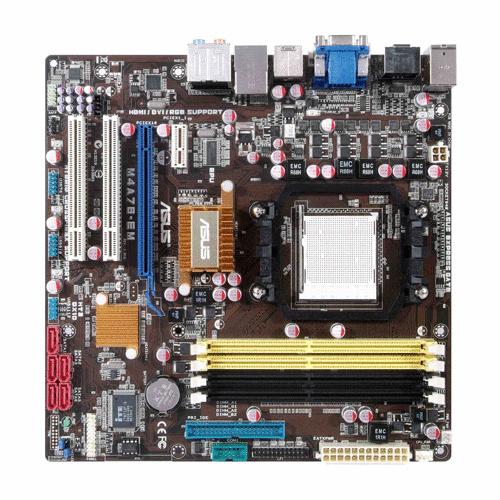

ASUS M4A78-EM AMD 780G DDR2 HDMI MBOARD

Asus M4A78-EM Socket AM2+ AM3 AMD 780G Chipset Motherboard With HDMI / Audio / Video & LAN For AMD Phenom / Phenom 2 & Athlon Processors.

Specifications:

• Mfr Part Number: M4A78-EM
• CPU: Socket AM2+ Support AMD Phenom X4/ Phenom X3/ Athlon /Athlon X2/ Sempron Processors; Support AM3 Phenom II/ Athlon X4/ Athlon X3/ Athlon X2 Processors; Support 45nm CPU; Support AMD 125W CPU; Upto 5200 MT/s HyperTransport 3.0 interface for AM3/AM2+ CPU
• Chipset: AMD 780G & SB700
• Memory: 4x 240pin DDR2-1066/800/667 DIMMs, Dual Channel, ECC/Non-ECC Un-buffered, Upto 16GB
• Slots: 1x PCI-Express x16 Slot; 1x PCI-Express x1 Slots; 2x PCI Slots
• IDE/SATA: 1x ATA-133 Channel; 5x SATA2 Ports, Support RAID 0, 1, 10; 1x External SATA 3Gb/s support JBOD
• Audio: ALC887 8-Channel High Definition Audio CODEC
• Video: ATI Radeon HD 3200 Graphics Controller, Max shared 256MB memory
• LAN: PCI-Express Gigabit Ethernet Controller
• Ports: 12x USB 2.0 Ports (6 rear, 6 at mid-board); 1x eSATA Port; 1x PS/2 Ports; 1x VGA Port; 1x DVI Port; 1x HDMI Port; 1x S/PDIF Out; 1x RJ45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin Main Power; 1x 4pin CPU Power
• Form Factor: MATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
