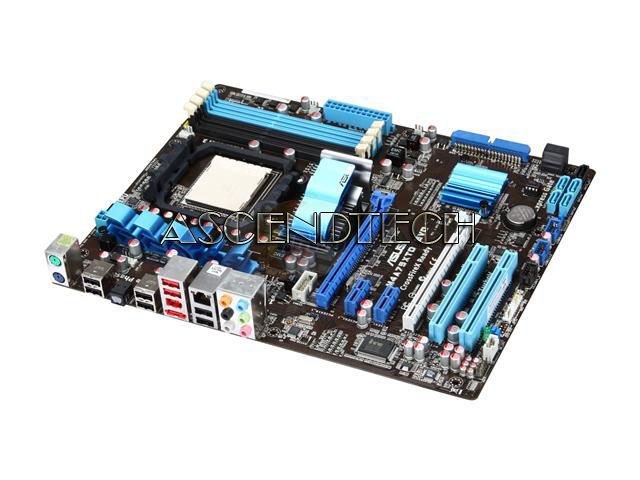

ASUS M4A79XTD EVO AM3 790X DDR3 NO I/O

ASUS M4A79XTD EVO AM3 AMD 790X ATX AMD Motherboard exclusively designed to support the latest AM3 CPU with DDR3. The ASUS M4A79XTD EVO AMD 790X Socket AM3 Motherboard supports AMD® Socket AM3 multi-core processors with unique L3 caches, and delivers better overclocking capabilities while consuming less power.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.



Specifications:

CPU:
AMD Socket AM3 ;PhenomII /AthlonII /Sempron 100 Series Processors
AMD Cool 'n' Quiet Technology
Supports 45nm CPU

Chipset:
AMD 790X/SB750

System Bus:
Up to 5200 MT/s ; HyperTransport 3.0

Memory:
4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
2 x PCIe 2.0 x16 , support ATI CrossFireX technology (at one x16 or dual x8 link)
2 x PCIe x1
2 x PCI 2.2

Storage:
SB750 Chipset
1 xUltraDMA 133/100/66 for up to 2 PATA devices
6 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD
Marvell 88SE6121 SATA controller
1 xInternal SATA 3Gb/s port(black)
1 xExternal SATA 3Gb/s port (SATA on-the-go)

LAN:
Realtek 8112L Gigabit LAN controllers

Audio:
VIA VT1708S 8-Channel High Definition Audio CODEC
DTS Surround Sensation UltraPC
Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
Optical S/PDIF Out ports at back I/O
ASUS Noise Filtering

IEEE 1394:
VIA VT6315N controller supports 2 x 1394a port(s) (1 at mid-board; 1 at back panel)

USB:
12 USB 2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel)

ASUS Unique Features:
ASUS Power Solutions:
- ASUS New-Gen. 8+2 Phase Power Design
- ASUS Anti-Surge Protection
ASUS Green Design:
- EPU
Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Stylish heat-sink solution
- ASUS Q-Fan2
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS CrashFree BIOS 3
- ASUS O.C. Profile
- ASUS EZ Flash 2

Overclocking Features:
Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
- TurboV
- Turbo Key
Precision Tweaker 2
- vDIMM: 50 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment
- vChipset 16-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 600MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
100% All High-quality Conductive Polymer Capacitors!
ASUS MyLogo 2

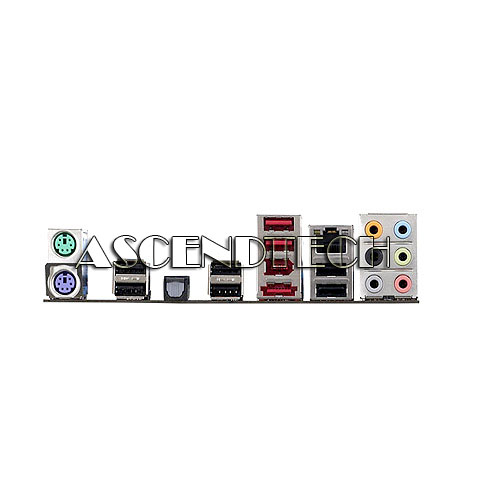

Back Panel I/O Ports:
1 x PS/2 Keyboard port (Purple)
1 x PS/2 mouse port (Green)
1 x S/PDIF Out port (Optical)
1 x eSATA
1 x IEEE 1394a port
1 x LAN (RJ45) port
8 x USB 2.0/1.1 ports
8-Channel Audio I/O ports

Internal I/O Connectors:
2 x USB connectors (4 ports)
1 x IDE connector
7 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
System Panel (Q-Connector)
1 x COM connector
1 x Chassis Intrusion
Front panel audio connector
1 x S/PDIF Out header
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector

BIOS:
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WOL by PME,WOR by PME,WOR by Ring,Chasis Intrusion,PXE

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )






CPU Support List:

Athlon IIX2 215(ADX215OCK22GQ),2.7GHz,512KB,rev.C2,65W,SocketAM3

Athlon IIX2 225(ADX225OCK22GM),2.9GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 240(ADX240OCK23GQ),2.8GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GM),2.8GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 245(ADX245OCK23GM),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245(ADX245OCK23GQ),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245e(AD245EHDK23GM),2.9GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 250(ADX250OCK23GM),3.0GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 250(ADX250OCK23GQ),3.0GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 250e(AD250EHDK23GM),3.0GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 255(ADX255OCK23GM),3.1GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 255(ADX255OCK23GQ),3.1GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 255e(AD255EHDK23GM),3.1GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 260(ADX260OCK23GM),3.2GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 265(ADX265OCK23GM),3.3GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 270(ADX270OCK23GM),3.4GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 275(ADX275OCK23GM),3.5GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX3 400e(AD400EHDK32GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 420e(AD420EHDK32GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 425( ADX425WFK32GI),2.7GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 425e(AD425EHDK32GM),2.7GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 435( ADX435WFK32GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 435( ADX435WFK32GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GI),3.0GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 445( ADX445WFK32GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 450(ADX450WFK32GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 455(ADX455WFK32GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 460(ADX460WFK32GM),3.4GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 600e(AD600EHDK42GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 610e(AD610EHDK42GM),2.4GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 615e(AD615EHDK42GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 620(ADX620WFK42GI),2.6GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 620e(AD620EHDK42GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 630(ADX630WFK42GI),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 630(ADX630WFK42GM),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 640(ADX640WFK42GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 645(ADX645WFK42GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 650(ADX650WFK42GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 655(ADX655WFK42GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon X2 5200+(GM),2.3GHz,1MB,rev.C3,65W,AD5200OCK22GM,SocketAM3

Phenom IIX2 545 (HDX545WFK2DGI),3.0GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 545( HDX545WFK2DGM),3.0GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 550 (HDZ550WFK2DGI),3.1GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 550( HDX550WFK2DGM),3.1GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 555( HDZ555WFK2DGM),3.2GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 560(HDZ560WFK2DGM),3.3GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 565(HDZ565WFK2DGM),3.4GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 570(HDZ570WFK2DGM),3.5GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 B59(HDXB59WFK2DGM),3.4GHz,rev.C3,89W,SocketAM3

Phenom IIX3 700e (HD700EOCK3DGI),2.4GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 705e (HD705EOCK3DGI),2.5GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 710 (HDX710WFK3DGI),2.6GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 810 (HDX810WFK4FGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 820 (HDX820WFK4FGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 840 (HDX840WFK42GM),3.2GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 850 (HDX850WFK42GM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 900e (HD900EOCK4DGI),2.4GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGI),2.5GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGM),2.5GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 910 (HDX910WFK4DGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 910E(HD910EOCK4DGM),2.6GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGM),2.8GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945FBK4DGI),3.0GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGI),3.0GHz,2048KB,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGM),3.0GHz,2048KB,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955WFK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960 (HDX960WFK4DGM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960T (HD96ZTWFK4DGR),3.0GHz,95W,rev.E0,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGI),3.4GHz,140W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGM),3.4GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 970 (HDZ970FBK4DGM),3.5GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 975 (HDZ975FBK4DGM),3.6GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 980 (HDZ980FBK4DGM),3.7GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX6 1035T(HDT35TWFK6DGR),2.6GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1045T(HDT45TWFK6DGR),2.7GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TFBK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TWFK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1065T(HDT65TWFK6DGR),2.9GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1075T(HDT75TFBK6DGR),3.0GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1090T(HDT90ZFBK6DGR),3.2GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1100T(HDE00ZFBK6DGR),3.3GHz,125W,rev.E0,SocketAM3,6-Core

Sempron 145,SDX145HBK13GM,2.8GHz,1024K,rev.C3,45W,SocketAM3

Sempron 150,SDX150HBK13GM,2.9GHz,1024K,rev.C3,45W,SocketAM3

Sempron X2 180,SDX180HDK22GM,2.4GHz,512Kx2,rev.C3,45W,SocketAM3
