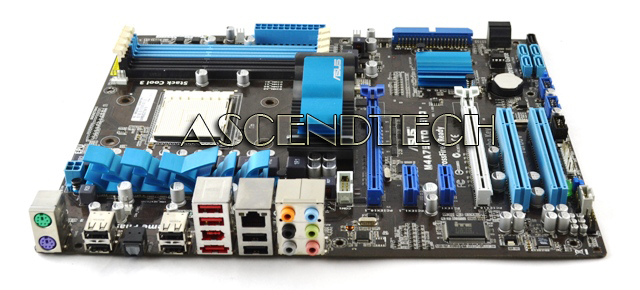

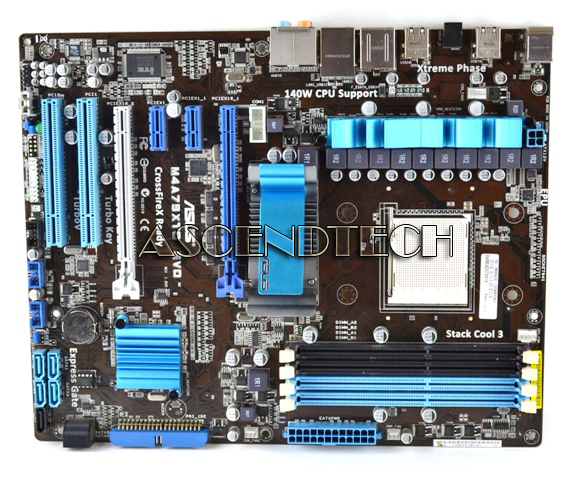

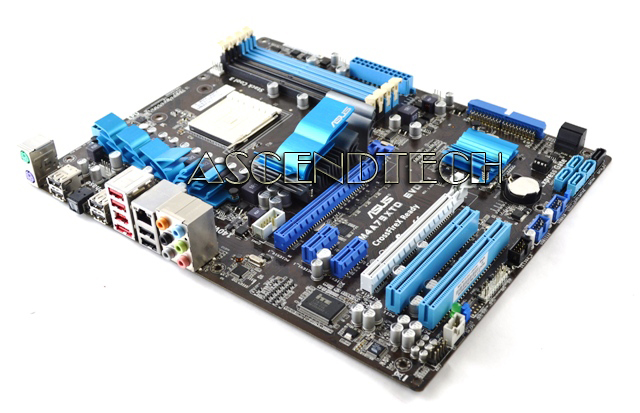

Asus M4A79XTD EVO AM3 Motherboard No I/O

Asus M4A79XTD EVO AM3 SB750 DDR3 Motherboard. This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
Supports 45nm CPU

Chipset
AMD 790X/SB750

Front Side Bus
Up to 5200 MT/s HyperTransport™ 3.0

Memory
4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz

Expansion Slots
2 x PCIe 2.0 x16 , support ATI CrossFireX™ technology (at one x16 or dual x8 link)
2 x PCIe x1
2 x PCI 2.2

Storage
SB750 Chipset
1 xUltraDMA 133/100/66 for up to 2 PATA devices
6 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD
Marvell 88SE6121 SATA controller
1 xInternal SATA 3Gb/s port(black)
1 xExternal SATA 3Gb/s port (SATA on-the-go)

LAN
Realtek® 8112L Gigabit LAN controllers
VIA® VT6315N controller supports 2 x 1394a port(s) (1 at mid-board; 1 at back panel)

Audio
VIA® VT1708S 8-Channel High Definition Audio CODEC
DTS Surround Sensation UltraPC
Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
Optical S/PDIF Out ports at back I/O
ASUS Noise Filtering

USB Ports
12 USB 2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel)

Back Panel I/O Ports
1 x PS/2 Keyboard port (Purple)
1 x PS/2 mouse port (Green)
1 x S/PDIF Out port (Optical)
1 x eSATA
1 x IEEE 1394a port
1 x LAN (RJ45) port
8 x USB 2.0/1.1 ports
8-Channel Audio I/O ports

Internal I/O Ports
2 x USB connectors (4 ports)
1 x IDE connector
7 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
System Panel (Q-Connector)
1 x COM connector
1 x Chassis Intrusion
Front panel audio connector
1 x S/PDIF Out header
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector

BIOS
 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

The following table shows the supported CPUs for this Motherboard:

Athlon IIX2 215(ADX215OCK22GQ)2.7GHz512KBrev.C265WSocketAM3
Athlon IIX2 225(ADX225OCK22GM)2.9GHz512KBrev.C365WSocketAM3
Athlon IIX2 235e(AD235EHDK23GQ)2.7GHz1MBrev.C245WSocketAM3
Athlon IIX2 240(ADX240OCK23GQ)2.8GHz1MBrev.C265WSocketAM3
Athlon IIX2 240e(AD240EHDK23GM)2.8GHz1MBrev.C345WSocketAM3
Athlon IIX2 240e(AD240EHDK23GQ)2.8GHz1MBrev.C245WSocketAM3
Athlon IIX2 245(ADX245OCK23GM)2.9GHz1MBrev.C265WSocketAM3
Athlon IIX2 245(ADX245OCK23GQ)2.9GHz1MBrev.C265WSocketAM3
Athlon IIX2 245e(AD245EHDK23GM)2.9GHz1MBrev.C345WSocketAM3
Athlon IIX2 250(ADX250OCK23GM)3.0GHz1MBrev.C365WSocketAM3
Athlon IIX2 250(ADX250OCK23GQ)3.0GHz1MBrev.C265WSocketAM3
Athlon IIX2 250e(AD250EHDK23GM)3.0GHz1MBrev.C345WSocketAM3
Athlon IIX2 255(ADX255OCK23GM)3.1GHz512KBrev.C365WSocketAM3
Athlon IIX2 255(ADX255OCK23GQ)3.1GHz1MBrev.C265WSocketAM3
Athlon IIX2 260(ADX260OCK23GM)3.2GHz1MBrev.C365WSocketAM3
Athlon IIX2 265(ADX265OCK23GM)3.3GHz1MBrev.C365WSocketAM3
Athlon IIX2 270(ADX270OCK23GM)3.4GHz1MBrev.C365WSocketAM3
Athlon IIX3 400e(AD400EHDK32GI)2.2GHz512KBrev.C245WSocketAM3
Athlon IIX3 405e(AD405EHDK32GI)2.3GHz512KBrev.C245WSocketAM3
Athlon IIX3 405e(AD405EHDK32GM)2.3GHz512KBrev.C345WSocketAM3
Athlon IIX3 420e(AD420EHDK32GM)2.6GHz512KBrev.C345WSocketAM3
Athlon IIX3 425( ADX425WFK32GI)2.7GHz512KBrev.C295WSocketAM3
Athlon IIX3 435( ADX435WFK32GI)2.9GHz512KBrev.C295WSocketAM3
Athlon IIX3 435( ADX435WFK32GM)2.9GHz512KBrev.C395WSocketAM3
Athlon IIX3 440( ADX440WFK32GI)3.0GHz512KBrev.C295WSocketAM3
Athlon IIX3 440( ADX440WFK32GM)3.0GHz512KBrev.C395WSocketAM3
Athlon IIX3 445( ADX445WFK32GM)3.1GHz512KBrev.C395WSocketAM3
Athlon IIX3 450(ADX450WFK32GM)3.2GHz512KBrev.C395WSocketAM3
Athlon IIX3 455(ADX455WFK32GM)3.3GHz512KBrev.C395WSocketAM3
Athlon IIX4 600e(AD600EHDK42GI)2.2GHz512KBrev.C245WSocketAM3
Athlon IIX4 605e(AD605EHDK42GI)2.3GHz512KBrev.C245WSocketAM3
Athlon IIX4 605e(AD605EHDK42GM)2.3GHz512KBrev.C345WSocketAM3
Athlon IIX4 610e(AD610EHDK42GM)2.4GHz512KBrev.C345WSocketAM3
Athlon IIX4 615e(AD615EHDK42GM)2.5GHz512KBrev.C345WSocketAM3
Athlon IIX4 620(ADX620WFK42GI)2.6GHz512KBrev.C295WSocketAM3
Athlon IIX4 630(ADX630WFK42GI)2.8GHz512KBrev.C395WSocketAM3
Athlon IIX4 630(ADX630WFK42GM)2.8GHz512KBrev.C395WSocketAM3
Athlon IIX4 635(ADX635WFK42GI)2.9GHz512KBrev.C295WSocketAM3
Athlon IIX4 635(ADX635WFK42GM)2.9GHz512KBrev.C395WSocketAM3
Athlon IIX4 640(ADX640WFK42GM)3.0GHz512KBrev.C395WSocketAM3
Athlon IIX4 645(ADX645WFK42GM)3.1GHz512KBrev.C395WSocketAM3
Athlon IIX4 650(ADX650WFK42GM)3.2GHz512KBrev.C395WSocketAM3
Athlon X2 5200+(GM)2.3GHz1MBrev.C365WAD5200OCK22GMSocketAM3
Phenom IIX2 545 (HDX545WFK2DGI)3.0GHz80Wrev.C2SocketAM3Dual-Core
Phenom IIX2 545( HDX545WFK2DGM)3.0GHz512KBrev.C380WSocketAM3
Phenom IIX2 550 (HDZ550WFK2DGI)3.1GHz80Wrev.C2SocketAM3Dual-Core
Phenom IIX2 550( HDX550WFK2DGM)3.1GHz512KBrev.C380WSocketAM3
Phenom IIX2 555( HDZ555WFK2DGM)3.2GHz512KBrev.C380WSocketAM3
Phenom IIX2 560(HDZ560WFK2DGM)3.3GHz512KBrev.C380WSocketAM3
Phenom IIX2 565(HDZ565WFK2DGM)3.4GHz512KBrev.C380WSocketAM3
Phenom IIX2 570(HDZ570WFK2DGM)3.5GHz512KBrev.C380WSocketAM3
Phenom IIX3 700e (HD700EOCK3DGI)2.4GHz65Wrev.C2SocketAM3Triple-Core
Phenom IIX3 705e (HD705EOCK3DGI)2.5GHz65Wrev.C2SocketAM3Triple-Core
Phenom IIX3 710 (HDX710WFK3DGI)2.6GHz95Wrev.C2SocketAM3Triple-Core
Phenom IIX3 720 (HDX720WFK3DGI)2.8GHz95Wrev.C2SocketAM3Triple-Core
Phenom IIX3 720 (HDZ720WFK3DGI)2.8GHz95Wrev.C2SocketAM3Triple-Core
Phenom IIX3 740 (HDZ740WFK3DGI)3.0GHz95Wrev.C2SocketAM3Triple-Core
Phenom IIX4 805 (HDX805WFK4FGI)2.5GHz95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 810 (HDX810WFK4FGI)2.6GHz95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 820 (HDX820WFK4FGI)2.8GHz95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 840 (HDX840WFK42GM)3.2GHz95Wrev.C3SocketAM3Quad-Core
Phenom IIX4 900e (HD900EOCK4DGI)2.4GHz65Wrev.C2SocketAM3Quad-Core
Phenom IIX4 905e (HD905EOCK4DGI)2.5GHz65Wrev.C2SocketAM3Quad-Core
Phenom IIX4 905e (HD905EOCK4DGM)2.5GHz65Wrev.C3SocketAM3Quad-Core
Phenom IIX4 910 (HDX910WFK4DGI)2.6GHz95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 910E(HD910EOCK4DGM)2.6GHz65Wrev.C3SocketAM3Quad-Core
Phenom IIX4 925 (HDX925WFK4DGI)2.8GHz95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 925 (HDX925WFK4DGM)2.8GHz95Wrev.C3SocketAM3Quad-Core
Phenom IIX4 945 (HDX945FBK4DGI)3.0GHz125Wrev.C2SocketAM3Quad-Core
Phenom IIX4 945 (HDX945WFK4DGI)3.0GHz2048KB95Wrev.C2SocketAM3Quad-Core
Phenom IIX4 945 (HDX945WFK4DGM)3.0GHz2048KB95Wrev.C3SocketAM3Quad-Core
Phenom IIX4 955 (HDX955FBK4DGI)3.2GHz125Wrev.C2SocketAM3Quad-Core
Phenom IIX4 955 (HDX955FBK4DGM)3.2GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 955 (HDX955WFK4DGM)3.2GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 955 (HDZ955FBK4DGI)3.2GHz125Wrev.C2SocketAM3Quad-Core
Phenom IIX4 955 (HDZ955FBK4DGM)3.2GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 960 (HDX960WFK4DGM)3.3GHz95Wrev.C3SocketAM3Quad-Core
Phenom IIX4 965 (HDZ965FBK4DGI)3.4GHz140Wrev.C2SocketAM3Quad-Core
Phenom IIX4 965 (HDZ965FBK4DGM)3.4GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 970 (HDZ970FBK4DGM)3.5GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 975 (HDZ975FBK4DGM)3.6GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX4 980 (HDZ980FBK4DGM)3.7GHz125Wrev.C3SocketAM3Quad-Core
Phenom IIX6 1035T(HDT35TWFK6DGR)2.6GHz95Wrev.E0SocketAM36-Core
Phenom IIX6 1045T(HDT45TWFK6DGR)2.7GHz95Wrev.E0SocketAM36-Core
Phenom IIX6 1055T(HDT55TFBK6DGR)2.8GHz125Wrev.E0SocketAM36-Core
Phenom IIX6 1055T(HDT55TWFK6DGR)2.8GHz125Wrev.E0SocketAM36-Core
Phenom IIX6 1065T(HDT65TWFK6DGR)2.9GHz95Wrev.E0SocketAM36-Core
Phenom IIX6 1075T(HDT75TFBK6DGR)3.0GHz125Wrev.E0SocketAM36-Core
Phenom IIX6 1090T(HDT90ZFBK6DGR)3.2GHz125Wrev.E0SocketAM36-Core
Phenom IIX6 1100T(HDE00ZFBK6DGR)3.3GHz125Wrev.E0SocketAM36-Core
Sempron 140SDX140HBK13GQ2.7GHz1024Krev.C245WSocketAM3
Sempron 145SDX145HBK13GM2.8GHz1024Krev.C345WSocketAM3
Sempron X2 180SDX180HDK22GM2.4GHz512Kx2rev.C345WSocketAM3
Sempron X2 190SDX190HDK22GM2.5GHz512Kx2rev.C345WSocketAM3
