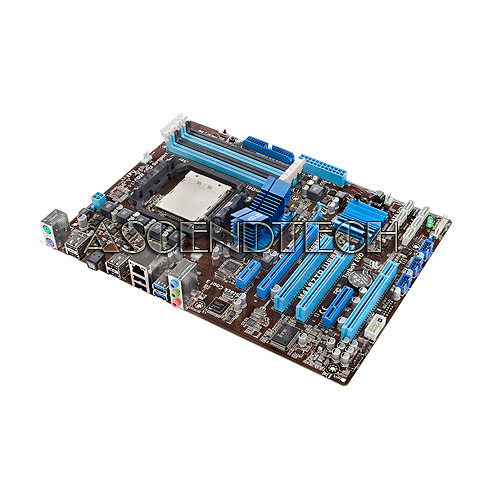

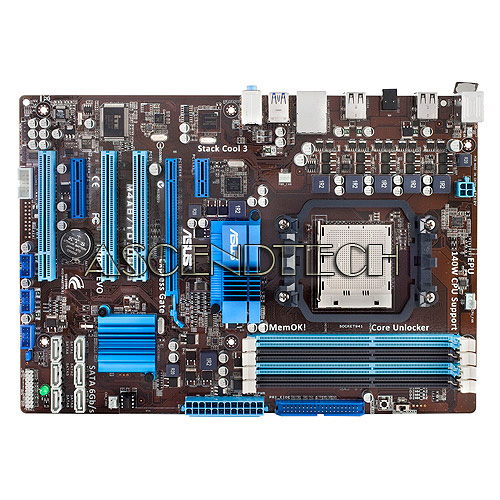

ASUS M4A87TD/USB3 AM3 DDR3 SATA3 NO I/O

ASUS M4A87TD/USB3 Motherboard achieves Turbocharged Performance with SuperSpeed USB 3.0 and SATA 6GB/s Data Transfers for Mainstream PC's. It supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.



Specifications:

CPU:
AMD AM3 Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet Technology

Chipset:
AMD 870/SB850

Memory:
4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

System Bus:
Up to 5.2 GT/s HyperTransport 3.0

Expansion Slots:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1
3 x PCI

Storage:
AMD SB850 controller :
6 x SATA 6Gb/s port(s), white
Support Raid 0, 1, 5, 10
JMicron JMB368 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio:
VIA VT1818 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel

USB Ports:
NEC USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD SB850 controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

Overclocking Features:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS Xtreme Design :
ASUS Hybrid Processor - TurboV EVO :
- Turbo Unlocker
- TurboV
- CPU Level Up
ASUS EPU :
- EPU
ASUS Hybrid Switch :
- Core Unlocker
- Turbo Key
ASUS Exclusive Features :
- MemOK!
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

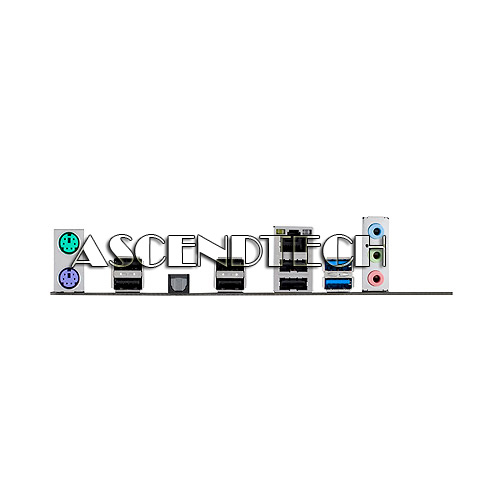

Back I/O Ports:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)

Internal I/O Ports:
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s) (3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)
1 x Clear CMOS jumper(s)

BIOS:
8 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor:
ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.3 cm )






CPU Support List:

Athlon IIX2 215(ADX215OCK22GQ),2.7GHz,512KB,rev.C2,65W,SocketAM3

Athlon IIX2 225(ADX225OCK22GM),2.9GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 235e(AD235EHDK23GQ),2.7GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 240(ADX240OCK23GQ),2.8GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GQ),2.8GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 245(ADX245OCK23GM),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245(ADX245OCK23GQ),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245e(AD245EHDK23GM),2.9GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 250(ADX250OCK23GM),3.0GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 250(ADX250OCK23GQ),3.0GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 255(ADX255OCK23GM),3.1GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 255(ADX255OCK23GQ),3.1GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 265(ADX265OCK23GM),3.3GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 270(ADX270OCK23GM),3.4GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX3 400e(AD400EHDK32GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 420e(AD420EHDK32GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 425( ADX425WFK32GI),2.7GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 435( ADX435WFK32GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 435( ADX435WFK32GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GI),3.0GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 445( ADX445WFK32GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 450(ADX450WFK32GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 455(ADX455WFK32GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 600e(AD600EHDK42GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 615e(AD615EHDK42GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 620(ADX620WFK42GI),2.6GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 630(ADX630WFK42GI),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 630(ADX630WFK42GM),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 640(ADX640WFK42GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 645(ADX645WFK42GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 650(ADX650WFK42GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon X2 5200+(GM),2.3GHz,1MB,rev.C3,65W,AD5200OCK22GM,SocketAM3

Phenom IIX2 545 (HDX545WFK2DGI),3.0GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 545( HDX545WFK2DGM),3.0GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 550 (HDZ550WFK2DGI),3.1GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 550( HDX550WFK2DGM),3.1GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 555( HDZ555WFK2DGM),3.2GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 560(HDZ560WFK2DGM),3.3GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 565(HDZ565WFK2DGM),3.4GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 570(HDZ570WFK2DGM),3.5GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX3 700e (HD700EOCK3DGI),2.4GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 705e (HD705EOCK3DGI),2.5GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 710 (HDX710WFK3DGI),2.6GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 715 (HDZ715WCJ3DGI),2.8GHz,95W,rev.C2,SocketAM2+,Triple-Core

Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 740 (HDZ740WFK3DGI),3.0GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 810 (HDX810WFK4FGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 820 (HDX820WFK4FGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 840 (HDX840WFK42GM),3.2GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 900e (HD900EOCK4DGI),2.4GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGI),2.5GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGM),2.5GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 910 (HDX910WFK4DGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 910E(HD910EOCK4DGM),2.6GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGM),2.8GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945FBK4DGI),3.0GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGI),3.0GHz,2048KB,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGM),3.0GHz,2048KB,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960 (HDX960WFK4DGM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960T (HD96ZTWFK4DGR),3.0GHz,95W,rev.E0,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGI),3.4GHz,140W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGM),3.4GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 970 (HDZ970FBK4DGM),3.5GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 975 (HDZ975FBK4DGM),3.6GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 980 (HDZ980FBK4DGM),3.7GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX6 1035T(HDT35TWFK6DGR),2.6GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1045T(HDT45TWFK6DGR),2.7GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TFBK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TWFK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1065T(HDT65TWFK6DGR),2.9GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1075T(HDT75TFBK6DGR),3.0GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1090T(HDT90ZFBK6DGR),3.2GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1100T(HDE00ZFBK6DGR),3.3GHz,125W,rev.E0,SocketAM3,6-Core

Sempron 140,SDX140HBK13GQ,2.7GHz,1024K,rev.C2,45W,SocketAM3

Sempron X2 180,SDX180HDK22GM,2.4GHz,512Kx2,rev.C3,45W,SocketAM3

Sempron X2 190,SDX190HDK22GM,2.5GHz,512Kx2,rev.C3,45W,SocketAM3
