Asus M4A88T-M rev.2.0 MB - No LAN, I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

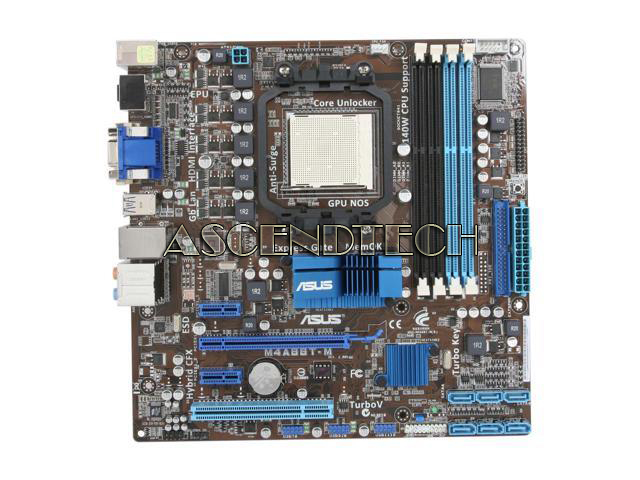

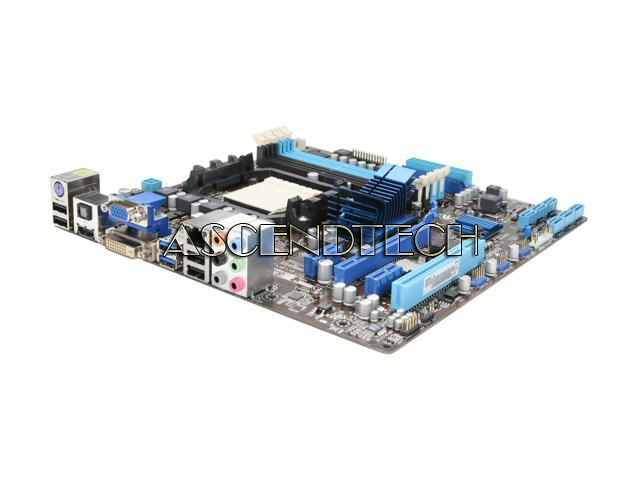

Asus M4a88t-M Rev.2.0 Mb - No Lan, I/O
  Enlarge
Asus M4a88t-M Rev.2.0 Mb - No Lan, I/O
Asus M4a88t-M Rev.2.0 Mb - No Lan, I/O
Asus M4a88t-M Rev.2.0 Mb - No Lan, I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBASUSM4A88TMR2
Brand Asus / Asustek Computer
Model M4A88T-M rev.2.0
Category Amd Socket Am2+ Am3 Motherboards
Condition Pre-Owned Grade D
Condition Description Please note, this motherboard is used and LAN port is not working, but the PCI, PCI-Express Ethernet Card or a USB WiFi Card can be added to bypass the issue. Otherwise the board is fully functional. Motherboard only! Does not include I/O shield, cables or any other accessories!

Description

Asus M4A88T-M rev.2.0 AMD Chipset 880G Socket AM3 DDR3 uATX Motherboard. This motherboard supports AMD Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.

Unlock the Potential, Turbocharge your Performance!
- Core Unlocker - Intelligently Unlocks True Core Performance
- TurboV - Feel the adrenaline rush of real-time O.C.!
- GPU NOS - Instant iGPU Level Up!
- Auto Tuning - Auto System Level Up!
- MemOK! - Any Memory is A-OK!
- Turbo Key - Touch-N-Boost! No more lag!







Specifications:

CPU
AMD AM3 Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet Technology

Chipset
AMD 880G/SB710

Memory
4 x DIMM, Max. 16GB, DDR3 1866(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.

System Bus
Up to 5.2 GT/s HyperTransport 3.0

Graphic
Integrated ATI Radeon HD 4250 GPU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 85 Hz
Maximum shared memory of 1024 MB
Dual independent displays support with HDMI/DVI and D-Sub
Hardware Decode Acceleration for H.264, VC-1, and MPEG-2
Blu-ray playback support *1
Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1, Universal Video Decoder (UVD) 2.0

Multi-GPU Support
Supports AMD CrossFireX Technology

Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage
AMD SB710 controller:
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD

LAN
Realtek 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio
VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature:
- Optical S/PDIF out port(s) at back panel

USB Ports
Built-in Controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

ROG Exclusive Features
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS Power Design:
- ASUS EPU-4 Engine
Turbo Key
TurboV
Core Unlocker
Auto Tuning *2
GPU NOS
ASUS Exclusive Features:
- MemOK!
- Anti-Surge
- Express Gate
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

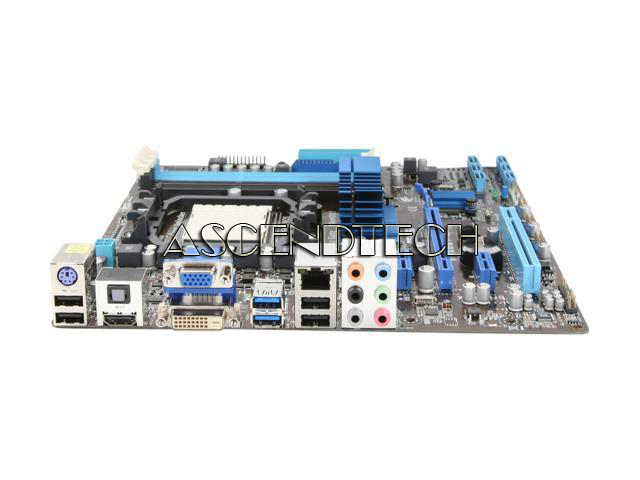

Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
6 x Audio jack(s)

Internal I/O Connectors
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)

BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Note
*1: Please use Windows Vista or above OS for Blu-ray Playback.
*2: Adopt fast mode.







CPU Support List:

Athlon IIX2 215 (ADX215OCK22GM), 2.7GHz, 512KB, rev.C3, 65W, Socket AM3
Athlon IIX2 215 (ADX215OCK22GQ), 2.7GHz, 512KB, rev.C2, 65W, Socket AM3
Athlon IIX2 220 (ADX220OCK22GM), 2.8GHz, 512KB, rev. C3, 65W,Socket AM3
Athlon IIX2 225 (ADX225OCK22GM), 2.9GHz, 512KB, rev.C3, 65W, Socket AM3
Athlon IIX2 235e (AD235EHDK23GQ), 2.7GHz, 1MB,rev.C2, 45W, Socket AM3
Athlon IIX2 240 (ADX240OCK23GQ), 2.8GHz, 1MB, rev.C2, 65W, Socket AM3
Athlon IIX2 240e (AD240EHDK23GM), 2.8GHz, 1MB, rev.C3, 45W, Socket AM3
Athlon IIX2 240e (AD240EHDK23GQ), 2.8GHz, 1MB, rev.C2, 45W, Socket AM3
Athlon IIX2 245 (ADX245OCK23GM), 2.9GHz, 1MB, rev.C2, 65W, Socket AM3
Athlon IIX2 245 (ADX245OCK23GQ), 2.9GHz, 1MB, rev.C2, 65W, Socket AM3
Athlon IIX2 245e (AD245EHDK23GM), 2.9GHz, 1MB, rev.C3, 45W, Socket AM3
Athlon IIX2 250 (ADX250OCK23GM), 3.0GHz, 1MB, rev.C3, 65W, Socket AM3
Athlon IIX2 250 (ADX250OCK23GQ), 3.0GHz, 1MB, rev.C2, 65W, Socket AM3
Athlon IIX2 250e (AD250EHDK23GM), 3.0GHz, 1MB, rev.C3, 45W, Socket AM3
Athlon IIX2 255 (ADX255OCK23GM), 3.1GHz, 512KB, rev.C3, 65W, Socket AM3
Athlon IIX2 255 (ADX255OCK23GQ), 3.1GHz, 1MB, rev.C2, 65W, Socket AM3
Athlon IIX2 255e (AD255EHDK23GM), 3.1GHz, 1MB, rev.C3, 45W, Socket AM3
Athlon IIX2 260 (ADX260OCK23GM), 3.2GHz, 1MB, rev.C3, 65W, Socket AM3
Athlon IIX2 265 (ADX265OCK23GM), 3.3GHz, 1MB, rev.C3, 65W, Socket AM3
Athlon IIX2 270 (ADX270OCK23GM), 3.4GHz, 1MB, rev.C3, 65W, Socket AM3
Athlon IIX2 275 (ADX275OCK23GM), 3.5GHz, 1MB, rev.C3, 65W, Socket AM3
Athlon IIX3 400e (AD400EHDK32GI), 2.2GHz, 512KB, rev.C2, 45W, Socket AM3
Athlon IIX3 405e (AD405EHDK32GI), 2.3GHz, 512KB, rev.C2, 45W, Socket AM3
Athlon IIX3 405e (AD405EHDK32GM), 2.3GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX3 415e (AD415EHDK32GM), 2.5GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX3 420e (AD420EHDK32GM), 2.6GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX3 425 ( ADX425WFK32GI), 2.7GHz, 512KB, rev.C2, 95W, Socket AM3
Athlon IIX3 425e(AD425EHDK32GM), 2.7GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX3 435 (ADX435WFK32GI), 2.9GHz, 512KB, rev.C2, 95W, Socket AM3
Athlon IIX3 435 (ADX435WFK32GM), 2.9GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX3 440 (ADX440WFK32GI), 3.0GHz, 512KB, rev.C2, 95W, Socket AM3
Athlon IIX3 440 (ADX440WFK32GM), 3.0GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX3 445 (ADX445WFK32GM), 3.1GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX3 450 (ADX450WFK32GM), 3.2GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX3 455 (ADX455WFK32GM), 3.3GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX3 460 (ADX460WFK32GM), 3.4GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX4 600e (AD600EHDK42GI), 2.2GHz, 512KB, rev.C2, 45W, Socket AM3
Athlon IIX4 605e (AD605EHDK42GI), 2.3GHz, 512KB, rev.C2, 45W, Socket AM3
Athlon IIX4 605e (AD605EHDK42GM), 2.3GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX4 610e (AD610EHDK42GM), 2.4GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX4 615e (AD615EHDK42GM), 2.5GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX4 620 (ADX620WFK42GI), 2.6GHz, 512KB, rev.C2, 95W, Socket AM3
Athlon IIX4 620e (AD620EHDK42GM), 2.6GHz, 512KB, rev.C3, 45W, Socket AM3
Athlon IIX4 630 (ADX630WFK42GI), 2.8GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX4 630 (ADX630WFK42GM), 2.8GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX4 635 (ADX635WFK42GI), 2.9GHz, 512KB, rev.C2, 95W, Socket AM3
Athlon IIX4 635 (ADX635WFK42GM), 2.9GHz, 512KB, rev.C3, 95W, Socket AM3
Athlon IIX4 640 (ADX640WFK42GM), 3.0GHz, 512KB, rev.C3, 95W, SocketAM3
Athlon IIX4 645 (ADX645WFK42GM), 3.1GHz, 512KB, rev.C3, 95W, SocketAM3
Athlon IIX4 650 (ADX650WFK42GM), 3.2GHz, 512KB, rev.C3, 95W, SocketAM3
Athlon IIX4 655 (ADX655WFK42GM), 3.3GHz, 512KB, rev.C3, 95W, SocketAM3
Athlon X2 5200+ (GM), 2.3GHz, 1MB, rev.C3, 65W, AD5200OCK22GM, Socket AM3
Phenom IIX2 545 (HDX545WFK2DGI), 3.0GHz, 80W, rev.C2, SocketAM3, Dual-Core
Phenom IIX2 545 (HDX545WFK2DGM), 3.0GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 550 (HDZ550WFK2DGI), 3.1GHz, 80W, rev.C2, SocketAM3, Dual-Core
Phenom IIX2 550 (HDX550WFK2DGM), 3.1GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 555  HDZ555WFK2DGM), 3.2GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 560 (HDZ560WFK2DGM), 3.3GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 565 (HDZ565WFK2DGM), 3.4GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 570 (HDZ570WFK2DGM), 3.5GHz, 512KB, rev.C3, 80W, Socket AM3
Phenom IIX2 B59 (HDXB59WFK2DGM), 3.4GHz, rev.C3, 89W, Socket AM3
Phenom IIX3 700e (HD700EOCK3DGI), 2.4GHz, 65W, rev.C2, Socket AM3, Triple-Core
Phenom IIX3 705e (HD705EOCK3DGI), 2.5GHz, 65W, rev.C2, Socket AM3, Triple-Core
Phenom IIX3 710 (HDX710WFK3DGI), 2.6GHz, 95W, rev.C2, Socket AM3, Triple-Core
Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz, 95W, rev.C2, Socket AM3, Triple-Core
Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz, 95W, rev.C2, Socket AM3, Triple-Core
Phenom IIX3 740 (HDZ740WFK3DGI),3.0GHz, 95W, rev.C2, Socket AM3, Triple-Core
Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz, 95W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 810 (HDX810WFK4FGI), 2.6GHz, 95W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 820 (HDX820WFK4FGI), 2.8GHz, 95W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 840 (HDX840WFK42GM), 3.2GHz,95W,rev.C3, Socket AM3, Quad-Core
Phenom IIX4 850 (HDX850WFK42GM), 3.3GHz, 95W,rev.C3, Socket AM3, Quad-Core
Phenom IIX4 900e (HD900EOCK4DGI), 2.4GHz, 65W,rev.C2, Socket AM3, Quad-Core
Phenom IIX4 905e (HD905EOCK4DGI), 2.5GHz, 65W,rev.C2, Socket AM3, Quad-Core
Phenom IIX4 905e (HD905EOCK4DGM), 2.5GHz, 65W,rev.C3, SocketAM3,Quad-Core
Phenom IIX4 910 (HDX910WFK4DGI), 2.6GHz, 95W, rev.C2, SocketAM3,Quad-Core
Phenom IIX4 910E (HD910EOCK4DGM), 2.6GHz, 65W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 925 (HDX925WFK4DGI), 2.8GHz, 95W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 925 (HDX925WFK4DGM), 2.8GHz, 95W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 945 (HDX945FBK4DGI), 3.0GHz, 125W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 945 (HDX945WFK4DGI), 3.0GHz, 2048KB, 95W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 945 (HDX945WFK4DGM), 3.0GHz, 2048KB, 95W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 955 (HDX955FBK4DGI), 3.2GHz, 125W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 955 (HDX955FBK4DGM), 3.2GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 955 (HDX955WFK4DGM), 3.2GHz, 95W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 955 (HDZ955FBK4DGI), 3.2GHz, 125W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 955 (HDZ955FBK4DGM), 3.2GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 960 (HDX960WFK4DGM), 3.3GHz, 95W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 965 (HDZ965FBK4DGI), 3.4GHz, 140W, rev.C2, Socket AM3, Quad-Core
Phenom IIX4 965 (HDZ965FBK4DGM), 3.4GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 970 (HDZ970FBK4DGM), 3.5GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 975 (HDZ975FBK4DGM), 3.6GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX4 980 (HDZ980FBK4DGM), 3.7GHz, 125W, rev.C3, Socket AM3, Quad-Core
Phenom IIX6 1035T (HDT35TWFK6DGR), 2.6GHz, 95W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1045T (HDT45TWFK6DGR), 2.7GHz, 95W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1055T (HDT55TFBK6DGR), 2.8GHz, 125W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1055T (HDT55TWFK6DGR), 2.8GHz, 125W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1065T (HDT65TWFK6DGR), 2.9GHz, 95W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1075T (HDT75TFBK6DGR), 3.0GHz, 125W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1090T (HDT90ZFBK6DGR), 3.2GHz, 125W, rev.E0, Socket AM3, 6-Core
Phenom IIX6 1100T (HDE00ZFBK6DGR), 3.3GHz, 125W, rev.E0, Socket AM3, 6-Core
Sempron 140, (SDX140HBK13GQ), 2.7GHz, 1024K, rev.C2, 45W, SocketAM3
Sempron 145, (SDX145HBK13GM), 2.8GHz, 1024K, rev.C3, 45W, SocketAM3
Sempron 150, (SDX150HBK13GM), 2.9GHz, 1024K, rev.C3, 45W, SocketAM3
Sempron X2 190, (SDX190HDK22GM), 2.5GHz, 512Kx2, rev.C3, 45W, SocketAM3
