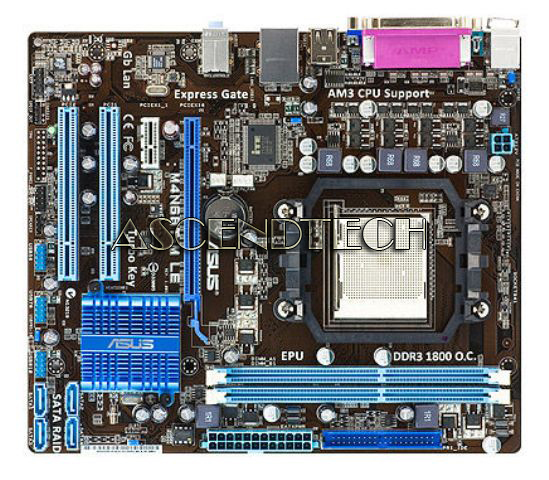

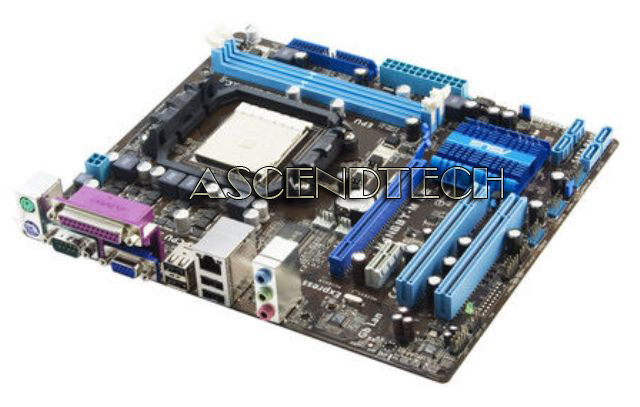

Asus M4N68T-M LE AM3 Motherboard No I/O

Asus M4N68T-M LE AM3 DDR3 Motherboard. This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 2000MT/s via HyperTransport™ 1.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing

Chipset
NVIDIA Geforce 7025/nForce 630a

Front Side Bus
Up to 2000/1600 MT/s

Memory
2 x DIMM, Max. 8 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
Integrated Programmable Shader model3.0 DirectX 9 graphics processor
Max. shared memory: 256 MB
Supports RGB with max. resolution 1920 x1440 (@75Hz)

Storage
Southbridge
1 x UltraDMA 133/100
4 x SATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD

LAN
Gb LAN

Audio
VT1708S High Definition Audio 8-Channel CODEC
Choose the chassis with HD audio module in front panel to support 8-Channel audio output
Support S/PDIF out interface
Support Multi-streaming, Single SPDIF Out, Anti-pop Function

USB Ports
10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)

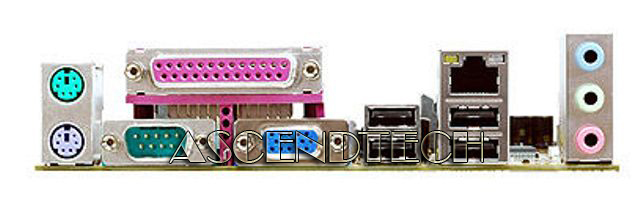

Back Panel I/O Ports
1 x Parallel port
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks

Internal I/O Connectors
3 x USB connectors (6 ports)
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x SPDIF out
1 x Internal speaker connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel connector

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a

Form Factor
uATX Form Factor
9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
