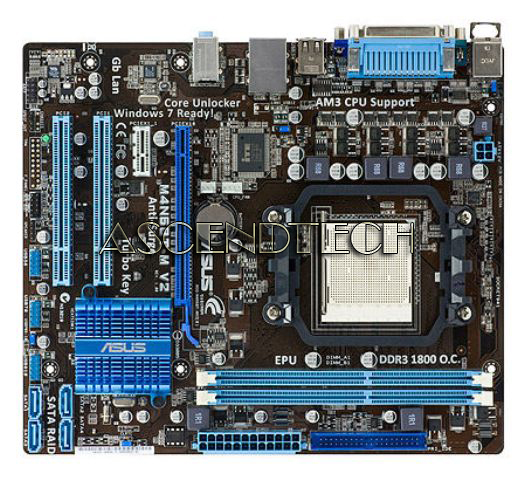

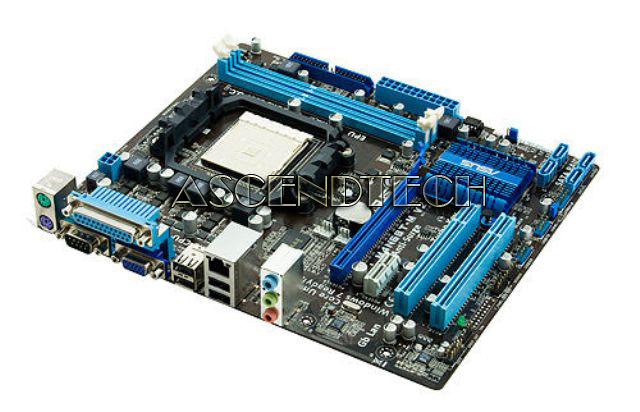

ASUS M4N68T- M V2 AM3 DDR3 Motherboard

Asus M4N68T-M V2 AM3 DDR3 Motherboard. This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 2000MT/s via HyperTransport™ 1.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing

Chipset
NVIDIA GeForce 7025 / nForce 630a

Front Side Bus
Up to 2.0 GT/s

Memory
2 x DIMM, Max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

LAN
Realtek® 8211CL-VB, 1 x Gigabit LAN Controller(s), featuring AI NET2

Audio
VIA VT1708S 8-Channel High Definition Audio CODEC *1
Supports : Multi-streaming, Anti-pop Function

USB Ports
Built-in Controller :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

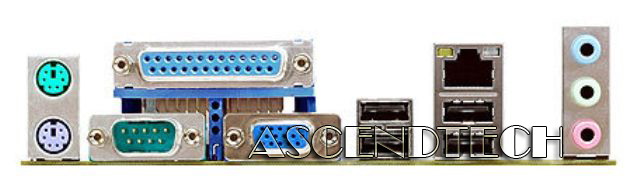

Back Panel I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)

Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a

Form Factor
uATX Form Factor
9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
