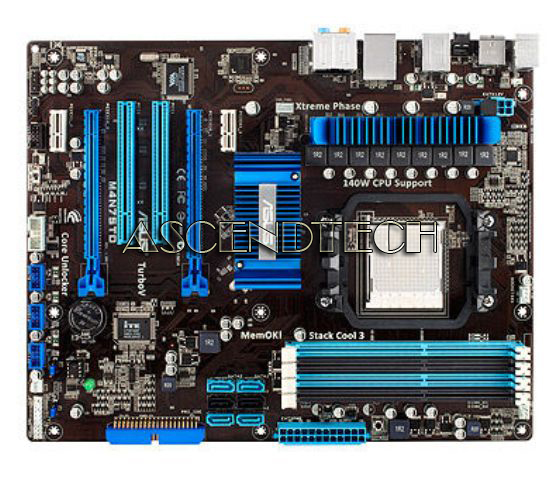

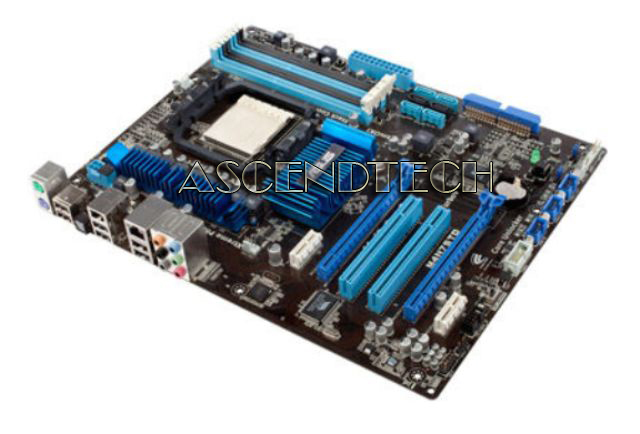

Asus M4N75TD AM3 DDR3 Motherboard No I/O

Asus M4N75TD AM3 DDR3 Motherboard. This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. NVIDIA nForce® 750a SLI® media and communications processors (MCPs) are the foundation for the world’s ultimate gaming PC. It supports the NVIDIA® Scalable Link Interface (SLI) technology that allows two graphics processing units (GPUs) in a single system. The NVIDIA nFORCE® 750a SLI® chipset also supports six (6) Serial ATA 3 Gb/s devices, PCI Express x16 slots with NVIDIA® SLI tm support at dual x8 mode, and up to 12 USB 2.0 ports.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W

Chipset
NVIDIA nForce 750a SLI

Front Side Bus
Up to 5.2 GT/s HyperTransport™ 3

Memory
4 x DIMM, Max. 16GB, DDR3 2200(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Expansion Slots
2 x PCIe 2.0 x16 (x8 mode)
2 x PCIe x1
2 x PCI

Storage
NVIDIA nForce® 750a SLI® chipset
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 0+1, 5, JBOD

LAN
Broadcom B5071, 1 x Gigabit LAN Controller(s), featuring AI NET2
VIA 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

Audio
VIA VT1708S 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
ASUS Noise Filter
Optical S/PDIF out port(s) at back panel

USB Ports
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

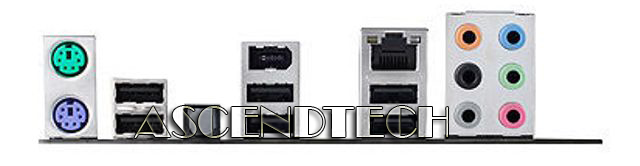

Back Panel I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x IEEE 1394a
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0, ASUS EZ Flash 2, CrashFree BIOS 3

ATX Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
