ASUS M5A97 AM3+ DDR3 AMD 970 NO I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

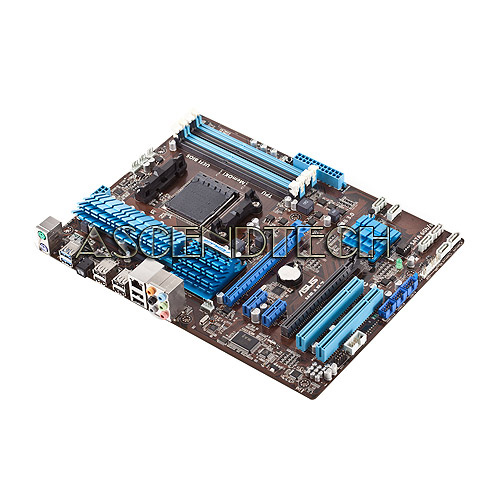

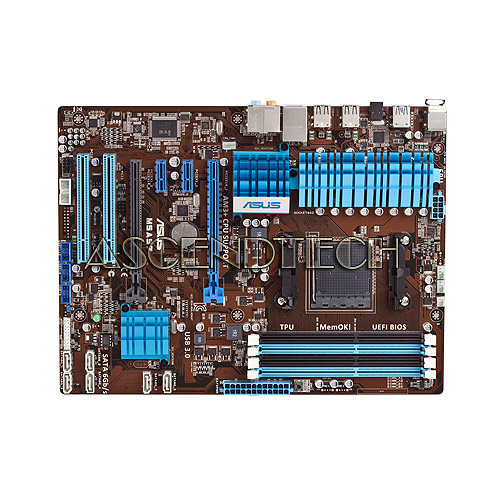

Asus M5a97 Am3+ Ddr3 Amd 970 No I/O
Asus M5a97 Am3+ Ddr3 Amd 970 No I/O
Asus M5a97 Am3+ Ddr3 Amd 970 No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBASUM5A97EVONO
BrandAsus / Asustek Computer
ModelATHLON PHENOM SEMPRON
CategoryAmd Socket Am3+ Fx X8 / Phenom Ii X6

Description

Asus M5A97 is equipped with dual Intelligent Processors technology. This exclusive design consists of the EPU (Energy Processing Unit), which automatically monitors power consumption system-wide to ensure efficiency, and the TPU (TurboV Processing Unit) - guaranteeing superior performance for every task, bringing users an unbeatable experience. Also included is the intuitive and feature laden ASUS UEFI BIOS menu interface allowing users to control and adjust their motherboard settings through the use of a mouse-enabled interface for a superior user-friendly experience that BIOS does not offer.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.



Specifications:

CPU:
AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet Technology

Chipset:
AMD 970/SB950

Memory:
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

System Bus:
Up to 4.8 GT/s HyperTransport 3
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots:
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI

Storage:
AMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel

USB Ports:
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD SB950 controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

Overclocking Features:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot

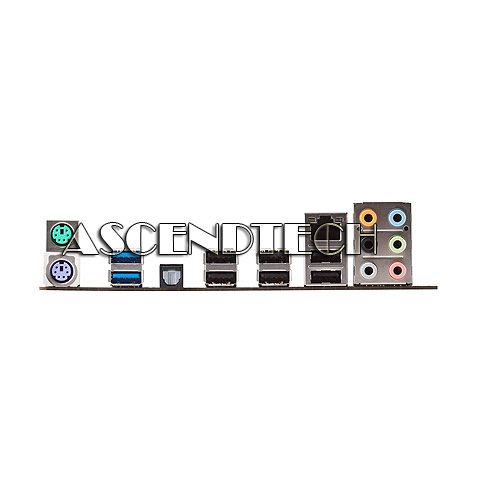

Back I/O Ports:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports:
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)

Manageability:
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor:
ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm )









CPU Support List:

Athlon IIX2 215(ADX215OCK22GM),2.7GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 215(ADX215OCK22GQ),2.7GHz,512KB,rev.C2,65W,SocketAM3

Athlon IIX2 220(ADX220OCK22GM),2.8GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 225(ADX225OCK22GM),2.9GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 235e(AD235EHDK23GQ),2.7GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 240(ADX240OCK23GQ),2.8GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GM),2.8GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GQ),2.8GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 245(ADX245OCK23GM),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245(ADX245OCK23GQ),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245e(AD245EHDK23GM),2.9GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 250(ADX250OCK23GM),3.0GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 250(ADX250OCK23GQ),3.0GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 250e(AD250EHDK23GM),3.0GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 255(ADX255OCK23GM),3.1GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 255(ADX255OCK23GQ),3.1GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 255e(AD255EHDK23GM),3.1GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 260(ADX260OCK23GM),3.2GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 265(ADX265OCK23GM),3.3GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 270(ADX270OCK23GM),3.4GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 275(ADX275OCK23GM),3.5GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX3 400e(AD400EHDK32GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 415e(AD415EHDK32GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 420e(AD420EHDK32GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 425( ADX425WFK32GI),2.7GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 425e(AD425EHDK32GM),2.7GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 435( ADX435WFK32GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 435( ADX435WFK32GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GI),3.0GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 445( ADX445WFK32GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 450(ADX450WFK32GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 455(ADX455WFK32GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 460(ADX460WFK32GM),3.4GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 600e(AD600EHDK42GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 610e(AD610EHDK42GM),2.4GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 615e(AD615EHDK42GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 620(ADX620WFK42GI),2.6GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 620e(AD620EHDK42GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 630(ADX630WFK42GI),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 630(ADX630WFK42GM),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 640(ADX640WFK42GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 645(ADX645WFK42GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 650(ADX650WFK42GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 655(ADX655WFK42GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon X2 5200+(GM),2.3GHz,1MB,rev.C3,65W,AD5200OCK22GM,SocketAM3

FX-4100(FD4100WMW4KGU),3.6GHz,4C,95W,rev.B2G,AM3+

FX-4170(FD4170FRW4KGU),4.2GHz,4C,125W,rev.B2G,AM3+

FX-4300(FD4300WMW4MHK),3.8GHz,4C,95W,rev.C0,AM3+

FX-4320(FD4320WMW4MHK),4.0GHz,4C,95W,rev.C0,AM3+

FX-4350(FD4350FRW4KHK),4.2GHz,4C,125W,rev.C0,AM3+

FX-6100(FD6100WMW6KGU),3.3GHz,6C,95W,rev.B2G,AM3+

FX-6200(FD6200FRW6KGU),3.8GHz,6C,125W,rev.B2G,AM3+

FX-6300(FD6300WMW6KHK),3.5GHz,6C,95W,rev.C0,AM3+

FX-6350(FD6350FRW6KHK,3.9GHz,6C,125W,rev.C0,AM3+)

FX-8100(FD8100WMW8KGU),2.8GHz,8C,95W,rev.B2G,AM3+

FX-8120(FD8120FRW8KGU),3.1GHz,8C,125W,rev.B2G,AM3+

FX-8120(FD8120WMW8KGU),3.1GHz,8C,95W,rev.B2G,AM3+

FX-8150(FD8150FRW8KGU),3.6GHz,8C,125W,rev.B2G,AM3+

FX-8300(FD8300WMW8KHK,3.2GHz,8C,95W,rev.C0,AM3+)

FX-8320(FD8320FRW8KHK,3.5GHz,8C,125W,rev.C0,AM3+)

FX-8350(FD8350FRW8KHK,4.0GHz,8C,125W,rev.C0,AM3+)

Phenom IIX2 545 (HDX545WFK2DGI),3.0GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 545( HDX545WFK2DGM),3.0GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 550 (HDZ550WFK2DGI),3.1GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 550( HDX550WFK2DGM),3.1GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 555( HDZ555WFK2DGM),3.2GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 560(HDZ560WFK2DGM),3.3GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 565(HDZ565WFK2DGM),3.4GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 570(HDZ570WFK2DGM),3.5GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX3 700e (HD700EOCK3DGI),2.4GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 705e (HD705EOCK3DGI),2.5GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 710 (HDX710WFK3DGI),2.6GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 740 (HDZ740WFK3DGI),3.0GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 810 (HDX810WFK4FGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 820 (HDX820WFK4FGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 840 (HDX840WFK42GM),3.2GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 850 (HDX850WFK42GM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 900e (HD900EOCK4DGI),2.4GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGI),2.5GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGM),2.5GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 910 (HDX910WFK4DGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 910E(HD910EOCK4DGM),2.6GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGM),2.8GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945FBK4DGI),3.0GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGI),3.0GHz,2048KB,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGM),3.0GHz,2048KB,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955WFK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960 (HDX960WFK4DGM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960T (HD96ZTWFK4DGR),3.0GHz,95W,rev.E0,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGI),3.4GHz,140W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGM),3.4GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 970 (HDZ970FBK4DGM),3.5GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 975 (HDZ975FBK4DGM),3.6GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 980 (HDZ980FBK4DGM),3.7GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX6 1035T(HDT35TWFK6DGR),2.6GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1045T(HDT45TWFK6DGR),2.7GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TFBK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TWFK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1065T(HDT65TWFK6DGR),2.9GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1075T(HDT75TFBK6DGR),3.0GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1090T(HDT90ZFBK6DGR),3.2GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1100T(HDE00ZFBK6DGR),3.3GHz,125W,rev.E0,SocketAM3,6-Core

Sempron 140,SDX140HBK13GQ,2.7GHz,1024K,rev.C2,45W,SocketAM3

Sempron 145,SDX145HBK13GM,2.8GHz,1024K,rev.C3,45W,SocketAM3

Sempron 150,SDX150HBK13GM,2.9GHz,1024K,rev.C3,45W,SocketAM3

Sempron X2 180,SDX180HDK22GM,2.4GHz,512Kx2,rev.C3,45W,SocketAM3

Sempron X2 190,SDX190HDK22GM,2.5GHz,512Kx2,rev.C3,45W,SocketAM3
