ASUS M5A99X EVO AM3+ DDR3 AMD 990X BOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

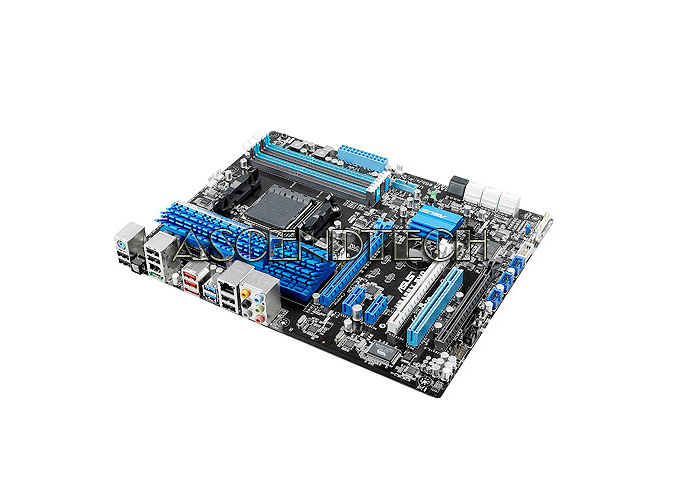

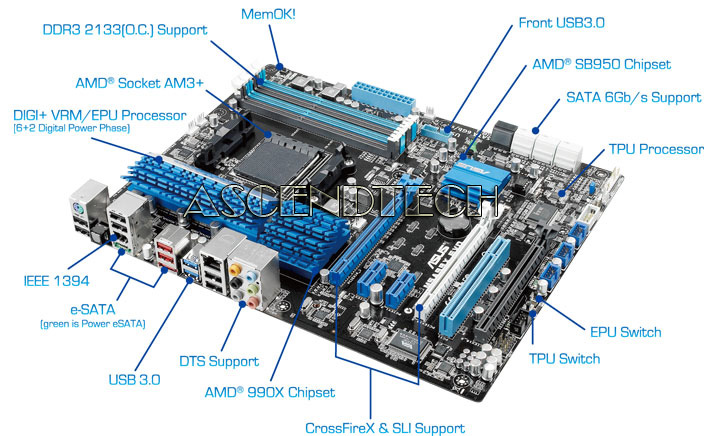

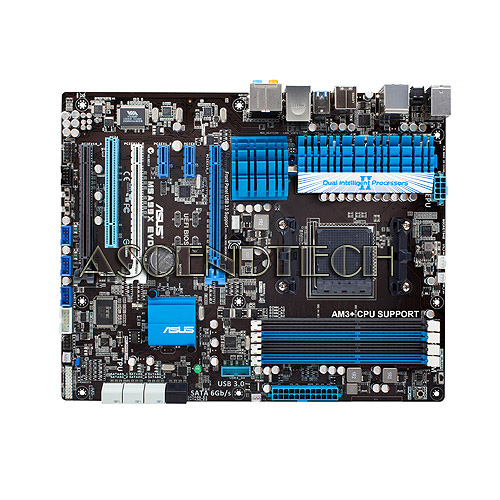

Asus M5a99x Evo Am3+ Ddr3 Amd 990X Board. Model: Phenom Ii Fx Rev. 1.01
  Enlarge
Asus M5a99x Evo Am3+ Ddr3 Amd 990X Board. Model: Phenom Ii Fx Rev. 1.01
Asus M5a99x Evo Am3+ Ddr3 Amd 990X Board. Model: Phenom Ii Fx Rev. 1.01
Asus M5a99x Evo Am3+ Ddr3 Amd 990X Board. Model: Phenom Ii Fx Rev. 1.01
Asus M5a99x Evo Am3+ Ddr3 Amd 990X Board. Model: Phenom Ii Fx Rev. 1.01
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBASUM5A99XEVOI
Brand Asus / Asustek Computer
Model PHENOM II FX REV. 1.01
Category Amd Socket Am3+ Fx X8 / Phenom Ii X6

Description

New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.



Specifications:

CPU:
AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 140 W
AMD Cool 'n' Quiet Technology

Chipset:
AMD 990X/SB950

Memory:
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

System Bus:
Up to 5.2 GT/s HyperTransport 3

Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots:
2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
1 x PCI

Storage:
AMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
JMicron JMB362 controller :
2 x SATA 3Gb/s port(s), black
1 x Power eSATA 3Gb/s port(s), green
1 x eSATA 3Gb/s port(s), red

LAN:
Realtek 8111E , 1 x Gigabit LAN Controller(s)

Audio:
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Surround Sensation UltraPC
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel

IEEE 1394:
VIA 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports:
ASMedia USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD SB950 controller :
14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)

Overclocking Features:
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features:
ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

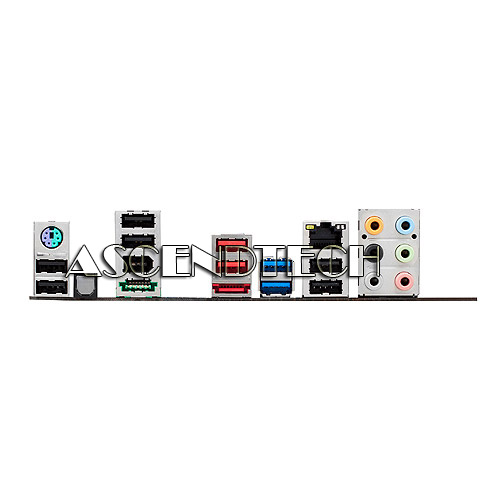

Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 3Gb/s
1 x Power eSATA 3Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
8 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )














CPU Support List:

Athlon IIX2 215(ADX215OCK22GM),2.7GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 215(ADX215OCK22GQ),2.7GHz,512KB,rev.C2,65W,SocketAM3

Athlon IIX2 220(ADX220OCK22GM),2.8GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 225(ADX225OCK22GM),2.9GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 235e(AD235EHDK23GQ),2.7GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 240(ADX240OCK23GQ),2.8GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GM),2.8GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 240e(AD240EHDK23GQ),2.8GHz,1MB,rev.C2,45W,SocketAM3

Athlon IIX2 245(ADX245OCK23GM),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245(ADX245OCK23GQ),2.9GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 245e(AD245EHDK23GM),2.9GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 250(ADX250OCK23GM),3.0GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 250(ADX250OCK23GQ),3.0GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 250e(AD250EHDK23GM),3.0GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 255(ADX255OCK23GM),3.1GHz,512KB,rev.C3,65W,SocketAM3

Athlon IIX2 255(ADX255OCK23GQ),3.1GHz,1MB,rev.C2,65W,SocketAM3

Athlon IIX2 255e(AD255EHDK23GM),3.1GHz,1MB,rev.C3,45W,SocketAM3

Athlon IIX2 260(ADX260OCK23GM),3.2GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 265(ADX265OCK23GM),3.3GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 270(ADX270OCK23GM),3.4GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX2 275(ADX275OCK23GM),3.5GHz,1MB,rev.C3,65W,SocketAM3

Athlon IIX3 400e(AD400EHDK32GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX3 405e(AD405EHDK32GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 415e(AD415EHDK32GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 420e(AD420EHDK32GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 425( ADX425WFK32GI),2.7GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 425e(AD425EHDK32GM),2.7GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX3 435( ADX435WFK32GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 435( ADX435WFK32GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GI),3.0GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX3 440( ADX440WFK32GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 445( ADX445WFK32GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 450(ADX450WFK32GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 455(ADX455WFK32GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX3 460(ADX460WFK32GM),3.4GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 600e(AD600EHDK42GI),2.2GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GI),2.3GHz,512KB,rev.C2,45W,SocketAM3

Athlon IIX4 605e(AD605EHDK42GM),2.3GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 610e(AD610EHDK42GM),2.4GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 615e(AD615EHDK42GM),2.5GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 620(ADX620WFK42GI),2.6GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 620e(AD620EHDK42GM),2.6GHz,512KB,rev.C3,45W,SocketAM3

Athlon IIX4 630(ADX630WFK42GI),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 630(ADX630WFK42GM),2.8GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GI),2.9GHz,512KB,rev.C2,95W,SocketAM3

Athlon IIX4 635(ADX635WFK42GM),2.9GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 640(ADX640WFK42GM),3.0GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 645(ADX645WFK42GM),3.1GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 650(ADX650WFK42GM),3.2GHz,512KB,rev.C3,95W,SocketAM3

Athlon IIX4 655(ADX655WFK42GM),3.3GHz,512KB,rev.C3,95W,SocketAM3

Athlon X2 5200+(GM),2.3GHz,1MB,rev.C3,65W,AD5200OCK22GM,SocketAM3

FX-4100(FD4100WMW4KGU),3.6GHz,4C,95W,rev.B2G,AM3+

FX-4170(FD4170FRW4KGU),4.2GHz,4C,125W,rev.B2G,AM3+

FX-4300(FD4300WMW4MHK),3.8GHz,4C,95W,rev.C0,AM3+

FX-4320(FD4320WMW4MHK),4.0GHz,4C,95W,rev.C0,AM3+

FX-4350(FD4350FRW4KHK),4.2GHz,4C,125W,rev.C0,AM3+

FX-6100(FD6100WMW6KGU),3.3GHz,6C,95W,rev.B2G,AM3+

FX-6200(FD6200FRW6KGU),3.8GHz,6C,125W,rev.B2G,AM3+

FX-6300(FD6300WMW6KHK),3.5GHz,6C,95W,rev.C0,AM3+

FX-6350(FD6350FRW6KHK,3.9GHz,6C,125W,rev.C0,AM3+)

FX-8100(FD8100WMW8KGU),2.8GHz,8C,95W,rev.B2G,AM3+

FX-8120(FD8120FRW8KGU),3.1GHz,8C,125W,rev.B2G,AM3+

FX-8120(FD8120WMW8KGU),3.1GHz,8C,95W,rev.B2G,AM3+

FX-8150(FD8150FRW8KGU),3.6GHz,8C,125W,rev.B2G,AM3+

FX-8300(FD8300WMW8KHK,3.2GHz,8C,95W,rev.C0,AM3+)

FX-8320(FD8320FRW8KHK,3.5GHz,8C,125W,rev.C0,AM3+)

FX-8350(FD8350FRW8KHK,4.0GHz,8C,125W,rev.C0,AM3+)

Phenom IIX2 545 (HDX545WFK2DGI),3.0GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 545( HDX545WFK2DGM),3.0GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 550 (HDZ550WFK2DGI),3.1GHz,80W,rev.C2,SocketAM3,Dual-Core

Phenom IIX2 550( HDX550WFK2DGM),3.1GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 555( HDZ555WFK2DGM),3.2GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 560(HDZ560WFK2DGM),3.3GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 565(HDZ565WFK2DGM),3.4GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX2 570(HDZ570WFK2DGM),3.5GHz,512KB,rev.C3,80W,SocketAM3

Phenom IIX3 700e (HD700EOCK3DGI),2.4GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 705e (HD705EOCK3DGI),2.5GHz,65W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 710 (HDX710WFK3DGI),2.6GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDX720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 720 (HDZ720WFK3DGI),2.8GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX3 740 (HDZ740WFK3DGI),3.0GHz,95W,rev.C2,SocketAM3,Triple-Core

Phenom IIX4 805 (HDX805WFK4FGI),2.5GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 810 (HDX810WFK4FGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 820 (HDX820WFK4FGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 840 (HDX840WFK42GM),3.2GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 850 (HDX850WFK42GM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 900e (HD900EOCK4DGI),2.4GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGI),2.5GHz,65W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 905e (HD905EOCK4DGM),2.5GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 910 (HDX910WFK4DGI),2.6GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 910E(HD910EOCK4DGM),2.6GHz,65W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGI),2.8GHz,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 925 (HDX925WFK4DGM),2.8GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945FBK4DGI),3.0GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGI),3.0GHz,2048KB,95W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 945 (HDX945WFK4DGM),3.0GHz,2048KB,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDX955WFK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGI),3.2GHz,125W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 955 (HDZ955FBK4DGM),3.2GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960 (HDX960WFK4DGM),3.3GHz,95W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 960T (HD96ZTWFK4DGR),3.0GHz,95W,rev.E0,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGI),3.4GHz,140W,rev.C2,SocketAM3,Quad-Core

Phenom IIX4 965 (HDZ965FBK4DGM),3.4GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 970 (HDZ970FBK4DGM),3.5GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 975 (HDZ975FBK4DGM),3.6GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX4 980 (HDZ980FBK4DGM),3.7GHz,125W,rev.C3,SocketAM3,Quad-Core

Phenom IIX6 1035T(HDT35TWFK6DGR),2.6GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1045T(HDT45TWFK6DGR),2.7GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TFBK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1055T(HDT55TWFK6DGR),2.8GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1065T(HDT65TWFK6DGR),2.9GHz,95W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1075T(HDT75TFBK6DGR),3.0GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1090T(HDT90ZFBK6DGR),3.2GHz,125W,rev.E0,SocketAM3,6-Core

Phenom IIX6 1100T(HDE00ZFBK6DGR),3.3GHz,125W,rev.E0,SocketAM3,6-Core

Sempron 140,SDX140HBK13GQ,2.7GHz,1024K,rev.C2,45W,SocketAM3

Sempron 145,SDX145HBK13GM,2.8GHz,1024K,rev.C3,45W,SocketAM3

Sempron 150,SDX150HBK13GM,2.9GHz,1024K,rev.C3,45W,SocketAM3

Sempron X2 180,SDX180HDK22GM,2.4GHz,512Kx2,rev.C3,45W,SocketAM3

Sempron X2 190,SDX190HDK22GM,2.5GHz,512Kx2,rev.C3,45W,SocketAM3
