Asus P4P800 Intel S.478 DDR 800MHz FSB
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

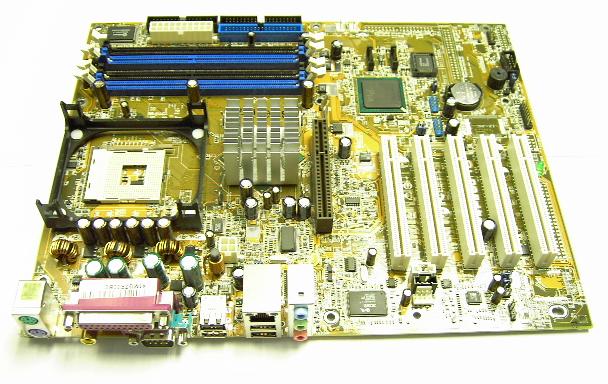

Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Item CodeMB4ASUSP4P800
ModelP4P800
Description
Asus P4P800 Motherboard support 3.2 GHz+ P4 CPU on 800MHz FSB, Dual DDR 400 memory, Intel Hyper-Threading Technology, and a full-range advanced features, P4P800 really delivers a full-value, high-performance solution for today's most demanding tasks.
Features:
-Intel 865PE Chipset
-800 MHz FSB
-Dual-Channel DDR400 Memory
-Intel Hyper-Threading Technology
-ASUS Intelligence Features
-Wi-Fi slot for optional wireless LAN upgrade
Download Drivers Here
Specifications:
| Product Type & Packaging: | OEM - Motherboard Only! No I/O Shield (Backplate) |
CPU | - Socket 478 for Intel Pentium 4/Celeron up to 3.2GHz+ - Intel Hyper-Threading Technology ready - New power design supports Intel next generation Prescott CPU |
Chipset | Intel 865PE MCH Intel ICH5R |
Front Side Bus | 800 / 533 / 400 MHz |
Memory | - 4 x 184-pin DIMM Sockets support max. 4GB PC3200/2700/2100 non-ECC DDR SDRAM memory - Dual Channel Memory Architecture |
Expansion Slots | 1 x AGP8X (1.5V only) 5 x PCI 1 x ASUS Wi-Fi slot for optional wireless LAN upgrade |
Storage/RAID | 2 x UltraDMA 100/66/33 2 x Serial ATA, RAID 0, 1 |
Audio | ADI AD1985 SoundMAX 6-channel CODEC S/PDIF out interface |
LAN | 3COM Gigabit Lan PCI Controller supporting 10/100/1000 BASE-T Ethernet |
BIOS | 4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, MyLogo2, ASUS C.P.R. |
USB | Integrated 8 USB2.0 ports |
Special Features | Power Loss Restart Support S/PDIF out interface ASUS MyLogo2 ASUS Q-Fan technology ASUS EZ Flash Multi-language BIOS ASUS CrashFree BIOS 2 |
Overclocking Features | - ASUS JumperFree - ASUS C.P.R.(CPU Parameter Recall) - CPU, Memory, and AGP voltage adjustable - SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment - Adjustable FSB/DDR ratio, Fixed AGP/PCI frequencies. |
Back Panel I/O Ports | 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x RJ45 1 x S/PDIF Output 4 x USB 2.0/1.1 |
Internal I/O Connectors | - 2 x USB 2.0 connector supports additional 4 USB 2.0 ports - CPU / Chassis (/ Power) FAN connectors - 20-pin ATX Power connector - 4-pin ATX 12V Power connector - Chassis Intrusion - S/PDIF out connector - CD / AUX / Modem audio in - GAME/MIDI connector - 2 x SATA ports - COM2 connector - Front panel audio connector |
Industrial Standard | PCI 2.2,PCI 2.3, USB 2.0 |
Manageability | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, Chassis Intrusion, SM Bus |
Form Factor | ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm) |
