ASUS P4S800-MX/s S.478 800FSB 661FX AGP
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

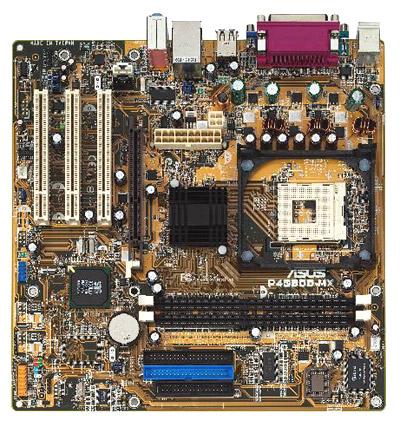

Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description
Based on the SiS 661FX chipset, P4S800-MX/s enables powerful integrated graphics and Intel Hyper-Threading Technology. With 800 FSB and DDR400 support, and unique features such as CrashFree BIOS and EZ Flash, SoundMAX digital audio and 10/100Mbps LAN, the P4S800-MX/s provides convenience, performance, and flexibility.
Specifications:
Manufacturer | Asus - OEM Motherboard Only! Backplate (Rear I/O Shield) Is Not Included! | |
| Manufacturer Part # | P4S800-MX/s | |
CPU Support | Socket Type | Socket 478 |
| CPUs Supported | Intel Pentium 4/ Celeron | |
| Front Side Bus Speed (FSB) | 800/533/400 MHz | |
Form Factor | microATX | |
Chipsets | SiS 661FX SiS 963L | |
| BIOS | 2Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, CrashFree BIOS, C.P.R.(CPU Parameter Recall) | |
Memory | Number of Slots | 2 x 184-Pin DIMM Sockets |
| Memory Type | DDR | |
| Maximum Memory | 2 GB | |
Storage | 2 x UltraDMA 133/100 | |
Integrated Features | Audio | ADI AD1888 SoundMAX 6-channel CODEC S/PDIF out interface |
Network | LAN | Integrated 10/100 Mbps LAN controller + VIA PHY |
Expansion Slots | 1 x AGP8X (1.5V only) 3 x PCI | |
USB | Integrated 6 USB2.0 ports | |
| Other ASUS Special Features | Power Loss Restart support S/PDIF out interface ASUS EZ Flash ASUS CrashFree BIOS | |
| Back Panel I/O Ports | 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 4 x USB 2.0/1.1 1 x RJ45 | |
| Internal I/O Connectors | 1 x USB 2.0 connector support additional 2 USB 2.0 ports CPU / Chassis FAN connectors 20-pin ATX Power connector 4-pin ATX 12V Power connector IDE LED connector, power LED connetor S/PDIF out connector CD / AUX audio in Front panel audio connector GAME/MIDI connector | |
