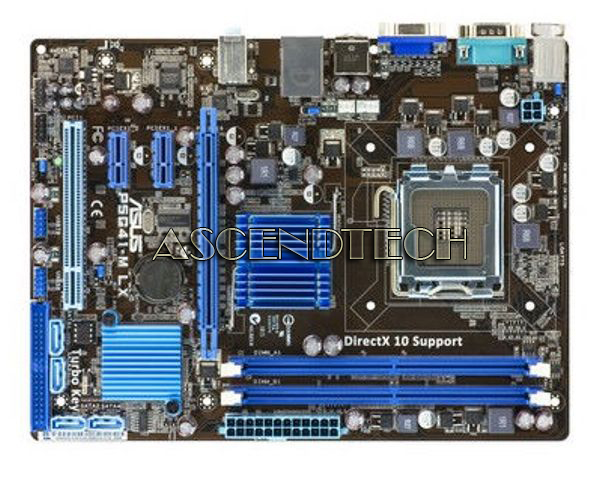

Asus P5G41-M LX DDR2 Motherboard No I/O

Asus P5G41-M LX LGA775 G41 DDR2 Motherboard. This motherboard supports Intel® LGA775 Core™ 2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process. The Intel® G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embedded with the next-generation Intel® Graphics Media Acceleratior X4500. The Intel® G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel® Fast Memory Access technology the significantly optimized the use of available memory bandwidth and reduces the latency of the memory accesses.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Duo/Celeron® dual-core/Celeron® Processors
Support Intel® 45nm Multi-Core CPU

Chipset
Intel® G41 /ICH7

Front Side Bus
1333/1066/800 MHz

Memory
2 x240 DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots
1 x PCIe x16
2 x PCIe x1
1 x PCI

VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)

Storage
Southbridge
1 x UltraDMA 100
4 x SATA 3 Gb/s ports

LAN
PCIe 10/100Mbps

Audio
ALC662-VC1 High Definition Audio 6-Channel CODEC
Supports Jack-detect and Multi-Streaming teconologies

USB Ports
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)

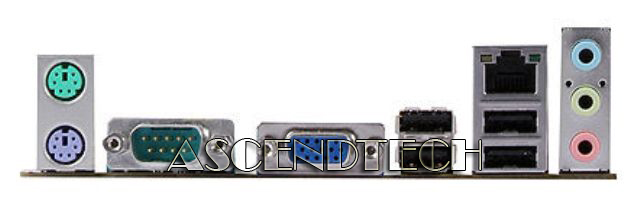

Back Panel I/O Ports
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6 -Channel Audio I/O

Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x High Definition front panel audio connector
1 x System Panel connector
1 x Internal Speaker connector
24-pin EATX power connector
4-pin ATX 12V Power connector

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Form Factor
uATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x18.3 cm )
