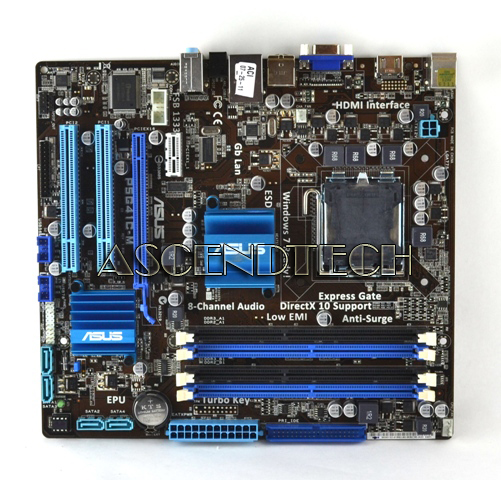

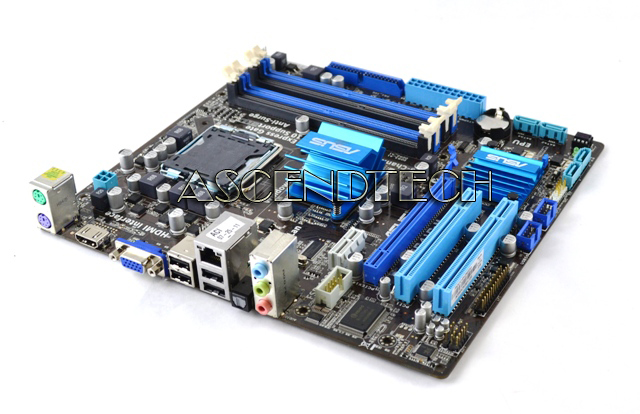

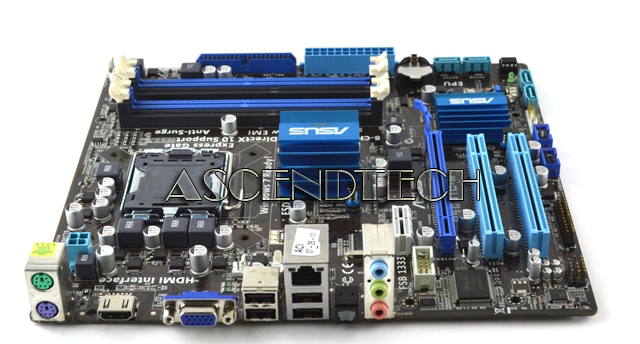

Asus P5G41C-M LGA775 HDMI Mboard No I/O

Asus P5G41C-M LGA775 HDMI Motherboard. This motherboard supports Intel® LGA775 Core 2 Extreme Core 2 Quad Core 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/1066/800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process.



* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.

Specifications:

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Support 45nm multi-core CPU
Intel Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)

Chipset
Intel® G41 / ICH7

Front Side Bus
1333/1066/800 MHz

Memory
2 x DIMM, DDR3 1333 (O.C.) / 1066 / 800 MHz
2 x DIMM, DDR2 1066 (O.C.) / 800 / 667 MHz
Dual channel, Max. 8 GB, Non-ECC, Un-buffered memory

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
Integrated Intel GMA X4500 graphics
Supports HDMI with max. resolution 1920 x 1080(@ 60Hz)
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10

LAN
PCIE Gb LAN

Audio
 ALC887 8-Channel High-Definition Audio CODEC

USB Ports
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)

Back Panel I/O Ports
1 x VGA
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x S/PDIF Out (optical)
1 x LAN(RJ45) port
4 x USB 2.0/1.1
3 x Audio jacks

Internal I/O Ports
2 x USB connectors support additional 4 USB ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x 24-pin EATXPWR Power connector
1 x 4-pin ATX 12V Power connector
4 x Serial ATA connectors
1 x System Panel connector
1 x IDE connector
1 x Parallel port
1 x COM

BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, Wfm2.0, ACPI 2.0a, SMBIOS 2.5

Form Factor
 uATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
